Bently Nevada 3500/22M 138607-01V Transient Data Interface Module

Description

Product Introduction

The Bently Nevada 3500/22M 138607-01V is the Transient Data Interface (TDI) for the 3500 Machinery Protection System. Installed in Slot 1, adjacent to the power supplies, it serves as the communication backbone of the rack by combining the functions of the legacy 3500/20 Rack Interface Module (RIM) with high-speed machinery data acquisition. It continuously transfers steady-state and transient waveform data to System 1 Condition Monitoring Software and 3500 Rack Configuration Software through an Ethernet connection.

To be honest, no 3500 rack operates without a TDI. The monitor modules may be healthy, but without a functioning 3500/22M, engineers lose configuration capability, historical waveform collection, and communication with the host computer. That makes the TDI one of the most critical modules in the entire rack architecture.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The compressor never tripped.

The vibration monitors still displayed OK.

Yet the reliability team couldn’t retrieve a single waveform.

I’ve seen this exact situation during a refinery outage. The maintenance crew immediately suspected the monitor modules. They replaced a 3500/42M, checked every proximity probe, and even rebooted the System 1 server.

None of it helped.

The failed component was the 3500/22M TDI.

Once it was replaced, communications returned within minutes.

Typical Applications

Power Generation – Steam and Gas Turbines –
Provides continuous communication between the 3500 rack and System 1 for vibration diagnostics and turbine condition monitoring.

Oil & Gas – Compressor Protection Systems –
Transfers steady-state and transient waveform data for predictive maintenance and trip investigations.

Petrochemical Plants – API 670 Machinery Protection –
Acts as the primary interface for configuration, diagnostics, and data collection across critical rotating equipment.

Pipeline Compressor Stations – Remote Monitoring –
Supports centralized monitoring of multiple compressor trains through Ethernet communication.

Industrial Manufacturing – Condition Monitoring Networks –
Provides rack management and waveform collection for pumps, fans, blowers, and large motors.

Field Replacement Example

A combined-cycle power plant lost communication with every vibration monitor after replacing a failed network switch.

Network diagnostics passed.

Monitor modules passed.

The TDI failed to establish Ethernet communication.

Replacing the 3500/22M 138607-01V restored System 1 connectivity, configuration access, and historical waveform acquisition without replacing a single monitor module.

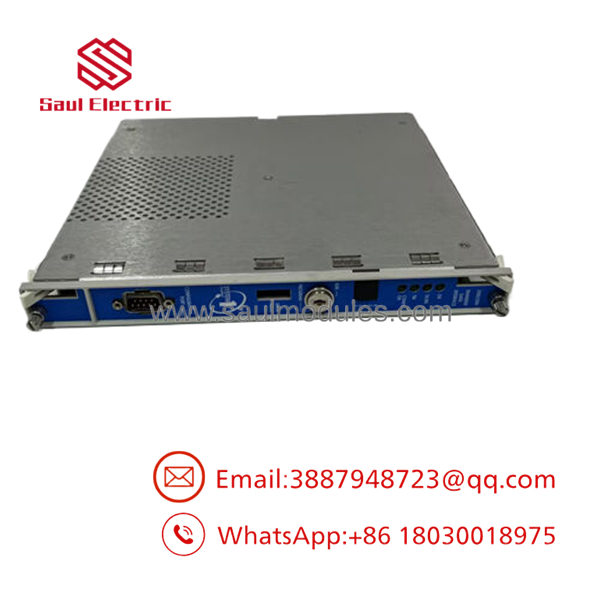

3500/22M 138607-01V

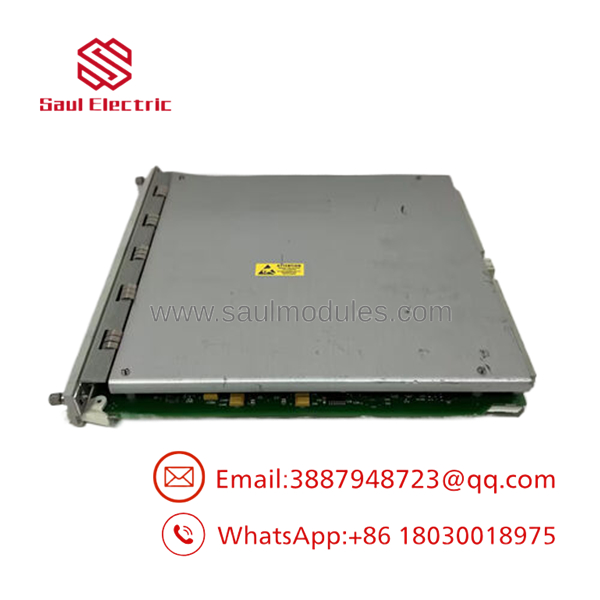

3500/22M 138607-01V

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels, serial numbers, and hardware revision.
• Inspect Ethernet, USB, and backplane connectors.
• Screen for counterfeit labels and unauthorized repairs.

2. Live Rack Testing

• Install the TDI in a compatible 3500 rack.
• Verify successful startup.
• Confirm rack recognition.
• Test communication with multiple M-Series monitor modules.
• Verify Ethernet connectivity with System 1 software.

3. Electrical Parameter Checks

• Measure operating current.
• Verify Ethernet communication stability.
• Confirm USB configuration functionality.
• Test OK relay operation.

4. Firmware Verification

• Record firmware revision.
• Verify compatibility with installed monitor modules.
• Document firmware before shipment.

5. Final QC & Anti-Static Packaging

• Perform final functional verification.
• Protect connectors using ESD packaging.
• Package with shock-resistant cushioning.
• Inspection records available upon request.

The Veteran’s Tech Trap Guide

⚠️ The TDI is mandatory.
Every standard 3500 rack requires one 3500/22M or equivalent interface module. Without it, rack configuration and communication are unavailable.

❗ Don’t confuse network failures with TDI failures.
Before replacing the module, verify the Ethernet switch, patch cable, and IP configuration. Those three items cause more service calls than defective hardware.

⚠️ Back up the rack configuration first.
Always save the existing rack configuration before replacing the TDI. Rebuilding monitor settings from memory is rarely successful.

❗ Verify firmware compatibility. Trust me.
Mixed firmware revisions between the TDI and newer M-Series monitor modules can produce communication faults or prevent configuration downloads.

⚠️ Use the correct rack slot.
The TDI must always be installed in Slot 1, immediately beside the power supplies. Installing it elsewhere prevents normal rack operation.

Frequently Asked Questions (FAQ)

Q1: What is the function of the 3500/22M 138607-01V?

A: It combines the functions of the legacy Rack Interface Module with a communication processor, collecting steady-state and transient machinery data while providing Ethernet connectivity to System 1 and 3500 Configuration Software.

Q2: Is one TDI required for every 3500 rack?

A: Yes. A standard 3500 rack requires one 3500/22M TDI installed in Slot 1. It serves as the rack’s primary communication interface.

Q3: Can the TDI capture transient waveform data?

A: Yes. Static data collection is standard, and with the appropriate channel licensing, the module also supports dynamic and transient waveform acquisition for detailed machinery diagnostics.

Q4: Is the 3500/22M hot-swappable?

A: No. Because it is the primary rack interface, replacement should be performed under approved maintenance procedures with the rack safely taken out of service. Pulling the TDI from a running rack can interrupt communications and configuration access.

Q5: Why is surplus inventory less expensive than buying directly from the OEM?

A: Most surplus modules originate from plant upgrades, modernization projects, or unused maintenance inventory. Price reflects the supply chain rather than functionality. Functional testing, firmware verification, and traceability are the factors that matter most.

Q6: Does the TDI replace the older 3500/20 Rack Interface Module?

A: Yes. The 3500/22M combines the traditional Rack Interface Module functions with integrated communication processing and waveform data collection, reducing the number of dedicated communication components required.

Q7: What warranty is typically available?

A: Reputable industrial automation suppliers commonly provide a 12-month warranty on professionally tested surplus or refurbished Bently Nevada 3500/22M 138607-01V modules. Before purchasing, request the functional test report, firmware revision details, and serial-number verification.
