Bently Nevada 3500/34 TMR Relay Module In Stock

Description

Product Introduction

The Bently Nevada 3500/34 is a full-height, 16-channel Triple Modular Redundant (TMR) Relay Module designed for high-availability critical machinery shutdown systems. Unlike standard relay cards that execute simple 1-out-of-1 or 1-out-of-2 logic, the 3500/34 accepts alarm signals from three redundant channels (A, B, and C) and executes hardware-level 2-out-of-3 voting before energizing or de-energizing output contacts.

In critical turbomachinery applications—such as nuclear turbine trips, offshore platform compressors, or main refinery trains—a single sensor failure cannot be allowed to cause a false plant trip. The 3500/34 bridges the gap between raw vibration/thrust monitoring and safety instrumented system (SIS) shutdown circuits by ensuring trip signals are validated across three independent signal paths, preventing both false trips and dangerous unannounced failures.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A false trip on a 500 megawatt combined-cycle gas turbine isn’t just an inconvenience; it can cost 150,000 in flared fuel, thermal stress cycles, and grid penalties within the first hour alone. On the flip side, a missed trip during a massive thrust bearing wipe can destroy a 10 million machine train. That is why TMR architecture exists—to prevent both “nuisance trips” and “fail-to-danger” events.

• Nuclear & Thermal Power Plants – Main Turbine Trip Lines: Interfacing TMR vibration and overspeed monitors directly to the main steam stop valve solenoids.
• LNG Import/Export Terminals – Cryogenic Boil-off Compressors: Executing high-integrity 2OO3 voting across triple-redundant proximity probes on motor drives.
• Offshore FPSO Units – High-Pressure Gas Injection Pumps: Driving emergency shutdown (ESD) master relays without relying on external safety PLC latency.

Field Case Scenario: During an offshore platform audit in the North Sea, an old 3500/34 card started throwing intermittent backplane communication alarms on channel B due to corrosion on the gold backplane contacts. The system stayed online without tripping the main export compressor because channels A and C kept the 2OO3 voting logic intact. However, running degraded was a major audit risk. We overnighted a pre-tested replacement 3500/34 card offshore, hot-swapped the front module during a scheduled maintenance window, and restored full triplicated redundancy before the next shift came on.

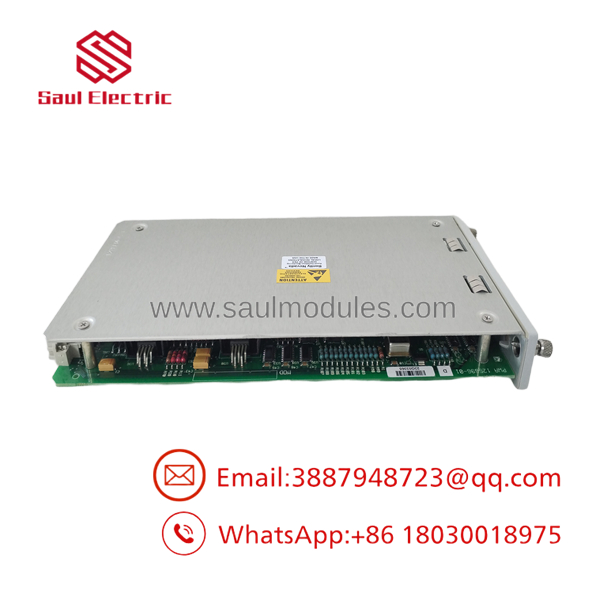

3500/34

3500/34

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Visual Inspection: We inspect board traces, check relay housings under magnification, and verify OEM anti-counterfeit serial numbers.
2. Backplane Handshake Test: The module goes into a dedicated 3500 rack with TMR Architecture enabled. We verify power-on self-tests (POST) and check that the 3500/22M System Rack Interface recognizes all three voting channels cleanly.
3. 2OO3 Logic Stimulation Test: Using 3500 Rack Configuration Software and signal generators, we simulate single-channel alarms (1OO3) to confirm the relay DOES NOT actuate, then trigger dual-channel alarms (2OO3) to verify instant contact closure (<15ms response).
4. Relay Contact Resistance Check: Every relay contact is energized and measured with a low-resistance ohmmeter to ensure contact resistance remains below 0.1 Ohms.
5. Final Anti-Static Packaging: Verified cards are placed directly into static-shielding metallic bags with custom foam shipping protection.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do Not Mix TMR Cards with Standard I/O Modules: The 3500/34 front main module MUST be paired with the correct 3500 TMR Rear I/O module (e.g., 125820-01). Plugging a 3500/34 into a standard 3500/32 or 3500/33 terminal block will bend backplane pins and trigger immediate rack faults.
• ❗ Verify Rack Configuration Software Settings First: Before swapping out a 3500/34, save the current .3500 rack file using Bently Configuration Software. If the replacement card has a different firmware revision, the rack software might flag a module mismatch error and lock out the relay channels until you update or match the configuration.
• ⚠️ Watch Out for Inductive Arc Damage: If this module controls inductive DC loads (solenoids, heavy trip coils), ensure flyback diodes or RC snubbers are installed at the field device. Direct inductive arc back-EMF will pit and weld the sealed TMR relay contacts over time, compromising the voting circuit.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main difference between the 3500/32, 3500/33, and 3500/34? A: The 3500/32 is a standard 4-channel relay card. The 3500/33 is a high-density 16-channel card using simple AND/OR logic. The 3500/34 is specifically built for Triple Modular Redundant (TMR) systems, using hardware 2-out-of-3 (2OO3) voting logic across three input channels to maximize safety and uptime.

Q: Is the 3500/34 TMR Relay Module hot-swappable? A: Yes, the front module can be hot-swapped while the rack is powered. However, to be honest, pulling a relay card tied to active plant trip lines live is high-risk. Always inhibit or bypass external trip circuits prior to removal.

Q: Can I use the 3500/34 in a non-TMR 3500 rack? A: No. The 3500/34 requires a 3500 rack configured for TMR operation (utilizing triplicated monitor channels like the 3500/42M TMR configuration). It will not function correctly in a standard non-redundant rack setup.

Q: Does this unit come with a warranty? A: Yes. Every 3500/34 module—whether new surplus or fully tested refurbished stock—comes backed by our full 12-month replacement warranty.

Q: Why buy new surplus or refurbished over ordering direct from the OEM? A: Direct OEM lead times for legacy 3500 series cards routinely extend to 16-24 weeks. We pull tested inventory from cancelled capital projects and plant spares worldwide, letting us deliver verified hardware to your plant doorstep in 24 to 48 hours.
