The Bently Nevada 3500/44M-01-00 (main board part number 176449-03) is a specialized 4-channel aeroderivative vibration monitor designed specifically for aero-gas turbines such as GE LM2500, LM6000, or Rolls-Royce RB211 packages. The -01-00 ordering suffix defines the standard Prox/Seismic Rear I/O module configuration equipped with removable Euro-style screw terminal connectors.
Unlike standard 3500/42M vibration cards, the 44M processes signals from charge-mode accelerometers and interface charge amplifiers operating under severe thermal and high-frequency conditions. It features specialized tracking filters tied to rotor speed signals (Keyphasor inputs), isolating specific shaft order frequencies (1X, 2X) from harsh casing background noise to deliver reliable hardware trip protection and high-integrity System 1 machinery diagnostics.
Key Technical Specifications
| Parameter | Specification Value |
| Ordering Code | 3500/44M-01-00 (01 = Standard I/O Module, 00 = Standard Agency Approvals) |
| Main Card / Rear I/O Assembly | 176449-03 (Front Main Board) + 140471-01 / 128229-01 (Rear I/O) |
| Channel Capacity | 4 independent, software-configurable aeroderivative channels |
| Transducer Inputs | Charge Amplifiers (330400 / 330425), Velomitors, High-Temp Accelerometers |
| Signal Processing | Bandpass Filtered Vibration, 1X/2X Vector Tracking, Peak/RMS Acceleration |
| Rotor Speed Integration | Accepts speed inputs from 3500 Keyphasor modules for order tracking |
| Transducer Power | Dedicated -24 VDC / Constant Current supply per channel |
| Buffered Signal Outputs | 4 Front-Panel coaxial BNC outputs (100 Ω output impedance) |
| Power Consumption | 7.7 Watts typical |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
Aeroderivative gas turbines operate at extreme speeds and light casing weights compared to heavy industrial frame turbines. High-frequency combustion roar, gearbox mesh, and case resonance create background noise that blinds standard seismic monitors. If a rotor blade develops a crack or a flexible coupling deteriorates, standard overall vibration readings won’t spike until the bearing housing physically fractures.
The 3500/44M uses speed-tracked bandpass filtering to hone in on exact shaft frequencies, stripping out combustion noise so trip logic only triggers on actual structural rotor defects.
- Offshore Oil Platforms – LM2500 Mechanical Drive Packages: Monitoring high-pressure turbine spool (HP) and low-pressure power turbine spool (PT) vibration independently.
- Power Generation – Fast-Start Peaker Stations: Tracking transient vibration profiles across high-speed thermal ramps without false tripping on casing resonance.
- Pipeline Compression – Gas Turbine Compressor Trains: Interfacing high-temperature charge accelerometers mounted directly on hot gas section casings.
Field Case Scenario: During a cold restart at a pipeline compressor station, an LM6000 gas turbine repeatedly tripped on overall casing acceleration during spool-up, but the mechanical team could find no physical vibration. The installed legacy monitor card was ringing on structural blade-pass frequencies. We replaced the failing module with a pre-tested 3500/44M-01-00 (176449-03) assembly, updated the Keyphasor tracking filter configuration in software, and locked the monitoring channels specifically to 1X rotor speed—allowing the turbine to pass through startup resonance cleanly without nuisance shutdowns.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.
- Inbound Visual & Pin Inspection: We inspect board traces under magnification, check high-frequency filter circuitry, verify backplane gold contacts, and inspect Euro-block terminal headers.
- Backplane Handshake & POST: The 176449-03 card is seated into a 3500 test chassis. We execute Power-On Self-Tests (POST) to confirm communication with the 3500/22M interface card and verify firmware compatibility.
- Tracking Signal & Dynamic Input Testing: Using multi-channel signal generators paired with Keyphasor pulse simulators, we feed swept high-frequency AC signals into all four channels to verify tracking bandpass accuracy, charge amplifier scaling, and Alert/Danger setpoint execution.
- Buffered BNC Output Check: Front-panel BNC outputs are connected to an oscilloscope to guarantee clean, unattenuated signal pass-through for diagnostic collectors.
- Anti-Static Sealing: Verified boards are sealed in Faraday-shielded anti-static bags with custom foam packing blocks.

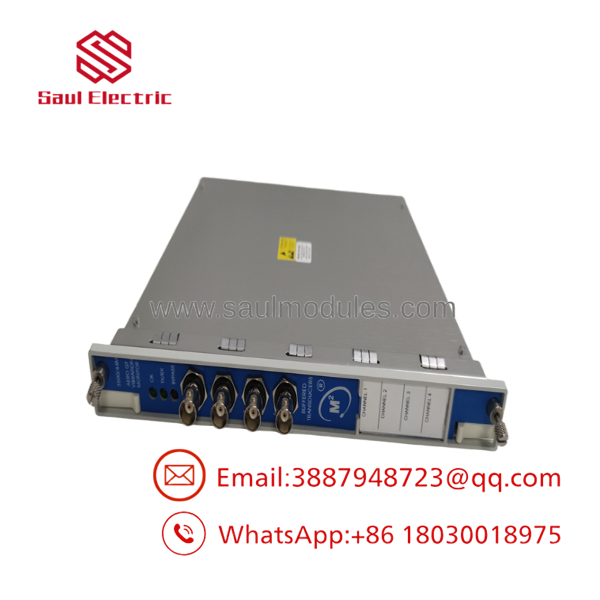

3500/44M-01-00 176449-03

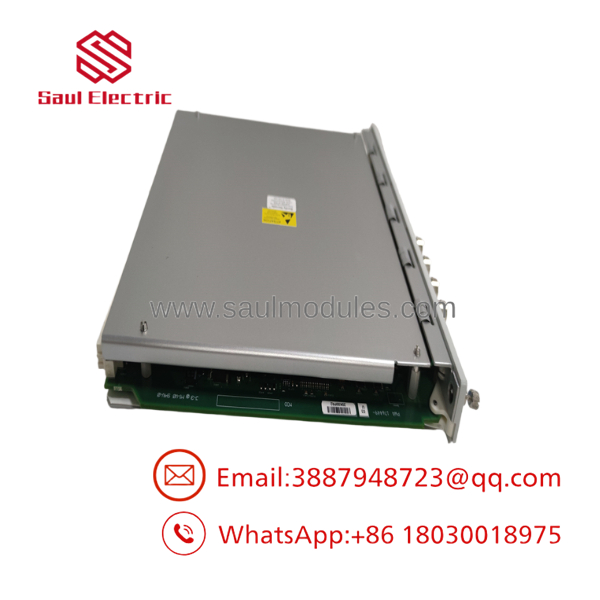

3500/44M-01-00 176449-03
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Charge Amplifier Wiring Polarization: Aeroderivative charge amplifiers require precise polarity and shielding. If field wiring shields are grounded at both ends or wired backwards on the rear terminal block, ground loop noise will overwhelm the low-level charge signal, causing channel “Not OK” faults or false high readings.
- ❗ Do Not Confuse 176449-03 with Standard 135489-01 (42M) Cards: While both fit in the same 3500 slot, the 176449-03 (44M) has distinct onboard filter hardware designed for aeroderivative processing. Installing a 42M card in a slot configured for a 44M in 3500 Rack Configurator will lock out the slot and generate a hardware configuration fault.
- ⚠️ Verify Keyphasor Association in Software: The order-tracking features of the 3500/44M require a valid Keyphasor signal assigned in the 3500 Rack Configuration Software. If the Keyphasor channel drops offline or isn’t assigned, the 44M falls back to default wideband filtering, which can lead to false trips during turbine startups.
Frequently Asked Questions (FAQ for Conversion)
Q: What is the difference between the Bently Nevada 3500/42M and 3500/44M?
A: The 3500/42M is a general-purpose proximity/seismic monitor for frame turbines, pumps, and motors. The 3500/44M is specifically designed for aeroderivative gas turbines, offering tracking filters and specialized charge amplifier interfaces to process high-frequency casing vibration.
Q: What does the suffix “-01-00” indicate for the 3500/44M?
A: The -01 suffix designates the Standard Prox/Seismic Rear I/O Module equipped with Euro-style screw terminals. The -00 suffix specifies Standard Agency Approvals (CSA, CE, UL).
Q: Is the 3500/44M-01-00 176449-03 hot-swappable?
A: Yes, the front main module (176449-03) can be hot-swapped while the rack is powered. However, to be honest, replacing a card wired to active turbine trip circuits carries risk—always bypass connected Danger relay channels before pulling the card.
Q: Does the 176449-03 card require a separate charge amplifier in the field?
A: Yes, if you are using high-temperature charge-mode accelerometers, an external charge amplifier (such as a Bently Nevada 330400 or 330425) is installed near the turbine casing to convert the high-impedance charge signal to a low-impedance voltage signal before it reaches the 3500/44M card.
Q: What warranty is provided with this module assembly?
A: All our 3500/44M-01-00 176449-03 modules—whether factory-sealed new surplus or fully rig-tested units—come backed by our full 12-month replacement warranty.
