Description
Product Introduction
The Bently Nevada 3500/61 is a 6-channel temperature monitor module designed for the 3500 Series Machinery Protection System. It accepts inputs from Resistance Temperature Detectors (RTDs) and thermocouples to continuously monitor bearing, winding, and process temperatures in critical rotating machinery.
Unlike basic PLC analog input cards, the 3500/61 conditions temperature signals directly at the rack level and processes them against programmed alarm setpoints. It delivers dedicated, hardware-level machinery protection by comparing temperature values against set limits to trigger alarm and trip relays independent of external control networks.
Key Technical Specifications
| Parameter | Value |
| Input Channels | 6 channels (individually configurable) |
| Supported Inputs | 3-wire RTD (100Ω Platinum, 10Ω Copper, 120Ω Nickel) & Thermocouples (Type J, K, T, E, S, R) |
| Power Consumption | 7.0 Watts typical |
| Rack Slot Occupancy | Dual-slot module (occupies 2 adjacent slots in 3500 rack) |
| Signal Conditioning | Internal 24-bit ADC per channel |
| Accuracy | ±1°C (±1.8°F) for typical RTD inputs |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Update Rate | 100ms full-channel scan rate |
| Isolation | 500V RMS galvanic channel-to-rack isolation |
| I/O Modules Supported | Internal Termination, External Termination, TMR I/O |
Application Scenarios & The “Trench” Experience
You get a call at 2:15 AM. A major gas turbine trips offline because the temperature monitoring card in slot 7 went dark, throwing communication faults across the rack backbone. The plant is losing $18,000 every hour the turbine sits cold. You do not need a sales pitch—you need a functional card with matching firmware, right now.
- Power Generation – Turbine Journal & Thrust Bearing Monitoring – Requires dedicated hardware-level temperature monitoring to detect oil film breakdown before catastrophic metal-on-metal contact occurs.
- Oil & Gas – Centrifugal Compressor Stator Winding Protection – Direct 3-wire RTD measurement prevents motor winding insulation failure during high ambient load conditions.
- Petrochemical – Boiler Feed Pump Casing & Bearing Temp – Continuously tracks differential temperatures across pump stages to prevent thermal distortion.
- Marine / Offshore – Main Propulsion Gearbox Oil Sump Monitoring – Ruggedized rack card handles high-vibration shipboard environments without signal drift.
Field Case Study: A Gulf Coast refinery experienced intermittent channel dropouts on an aging 3500/61 card monitoring high-pressure compressor bearings. The original board had developed micro-cracks in its solder joints after 12 years of heat exposure. Swapping in a pre-tested surplus 3500/61 card restored real-time RTD telemetry in under 20 minutes, avoiding an unplanned secondary shutdown of the cracking unit.
Transparency SOP: Quality Assurance & Testing
We test Bently Nevada hardware on actual 3500 racks before shipping. Here is our exact testing protocol:
- Inbound Physical Inspection: Verification of serial numbers, board revisions, conformal coating integrity, and backplane pin alignment.
- Rack Power-On & Diagnostic Verification: Insertion into a live Bently Nevada 3500 rack to pass full self-test diagnostic cycles without system fault LEDs.
- Channel Signal Injection: Precision signal generation (mA/mV/resistance) across all 6 channels to verify measurement accuracy within OEM tolerances.
- Firmware Logging: Recording and verifying installed firmware versions using Bently Nevada Rack Configuration Software.
- Anti-Static Packaging: ESD-safe packaging in anti-static shielding bags with custom foam enclosures for transport.
3500/61

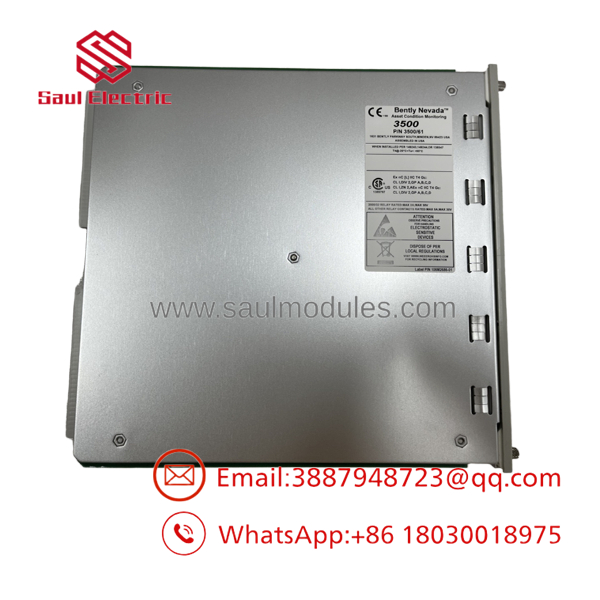

3500/61
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ DIP Switch Configuration Mismatch: Before sliding the new 3500/61 module into the rack, check the physical configuration switches on the side of the main board. If the replacement card switches are set for Thermocouples and your field wiring is 3-wire RTD, you will throw immediate system faults. Take a photo of the original card’s DIP switches before pulling it.
- ❗ Keying Peg Alignment: The 3500 system uses plastic keying pegs on the backplane connector to prevent incorrect module insertion. Do not force the card in if it resists. Verify that the rear I/O module type (Internal vs. External Termination) matches the card revision you are installing.
- ⚠️ 3500 Rack Configuration Upload: Swapping the physical module is only half the battle. If your replacement card has a different firmware revision than what is stored in the 3500/22M Transient Data Interface (TDI), you may need to re-download the rack configuration file using 3500 Rack Configuration Software to clear the mismatch alarm.
- ❗ External Termination Block Voltage: If using External Termination Blocks (ETBs), double-check field cable shielding. Floating grounds on RTD wiring can inject noise into the 3500/61 ADC, causing erratic temperature spikes that trigger false alarms.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I hot-swap the Bently Nevada 3500/61 module while the rack is powered?
A: Yes. The 3500 system supports hot-swapping under live rack power. However, pulling the module will cause a loss of temperature monitoring on those 6 channels, which may trigger rack alarm logic if your safety instrumented system (SIS) trips on loss of signal. Always bypass or inhibit affected shutdown logic prior to removal.
Q: What is the difference between 3500/61-01-00 and other option combinations?
A: The dash numbers indicate specific configuration options. The first dash number (e.g., -01) specifies the I/O Module Type (such as Internal Termination or External Termination), while the second dash number (e.g., -00) indicates agency approval ratings (like CSA/NRTL or ATEX/IECEx).
Q: Do I need to reconfigure the module after installation?
A: If you replace the card with an identical part number and firmware revision, the 3500/22M TDI module will automatically push the existing configuration to the new 3500/61 card upon boot. If the firmware differs, you will need to connect via 3500 Rack Configuration Software to sync them.
Q: Is this 3500/61 card new or refurbished, and what warranty is provided?
A: We supply both Factory Sealed New Surplus and fully tested Refurbished units. Every module undergoes full rack-level testing and comes backed by our comprehensive 12-month operational warranty.
Q: Why are surplus modules significantly less expensive than direct OEM quotes?
A: Industrial plants frequently order extra spare parts for capital projects that end up sitting unused in climate-controlled warehouses. We source this surplus directly from plant liquidations, upgrades, and surplus inventory. You receive genuine, original Bently Nevada hardware without the 16-to-24 week OEM factory lead time or markup.
