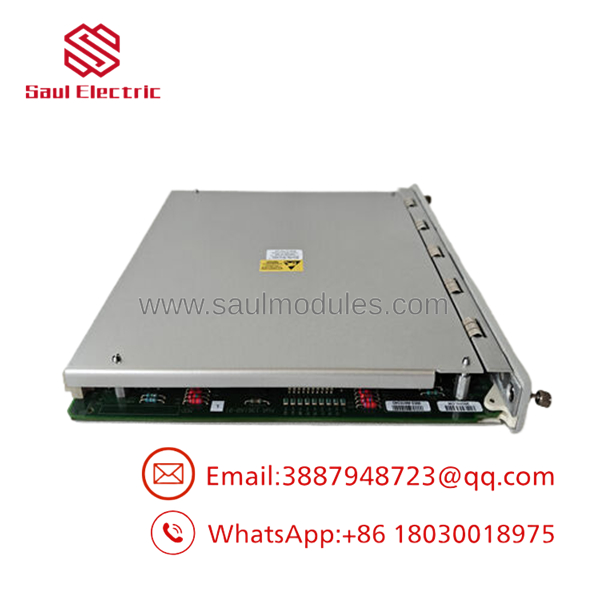

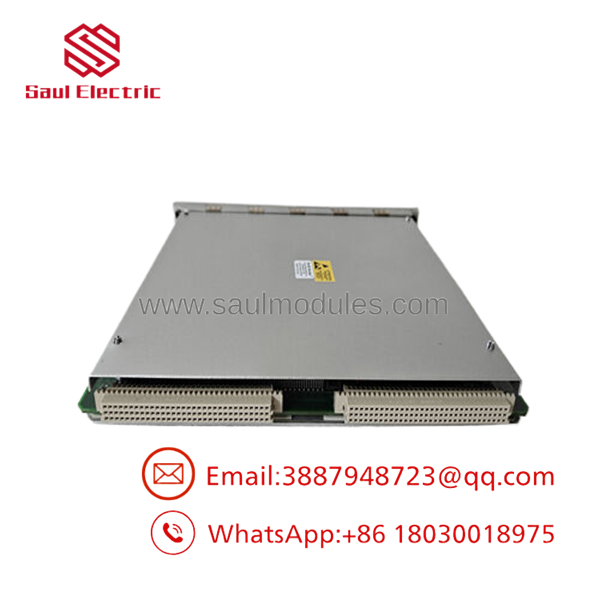

Bently Nevada 3500/92 136180-01 Communication Gateway Module

Description

Product Introduction

The Bently Nevada 3500/92 136180-01 is a Communication Gateway Module developed for the 3500 Machinery Protection System. It gathers monitored values, alarm status, and diagnostic information from every monitor installed in the 3500 rack and makes that information available to plant automation systems through Ethernet and serial communication protocols. It is commonly deployed in turbine, compressor, and rotating equipment protection systems.

Unlike monitor modules such as the 3500/42M or 3500/70M, the 3500/92 does not acquire vibration or process signals. Its responsibility is communication. In our field experience, replacing a failed gateway is often much faster and less expensive than troubleshooting an entire control network. Always verify the communication configuration before assuming the monitor modules are at fault.

Key Technical Specifications

3500/92 136180-01

3500/92 136180-01

Application Scenarios & The “Trench” Experience

It’s 1:45 AM.

The compressor is still running.

The protection rack shows healthy LEDs.

But every vibration point disappears from the DCS.

I’ve seen maintenance crews replace proximity probes, monitor cards, and even Ethernet switches before finding the actual problem—a failed communication gateway.

The machine never lost protection. The operators simply lost visibility.

That distinction matters.

Typical Applications

Power Generation – Steam and Gas Turbine Monitoring –
Transfers vibration, temperature, and alarm data from the 3500 rack to turbine control systems using Modbus/TCP.

Oil & Gas – Compressor Protection Systems –
Publishes machinery health information to DCS and compressor control systems while maintaining an independent protection layer.

Petrochemical Plants – Plant-Wide Asset Monitoring –
Provides centralized access to vibration and alarm data for predictive maintenance platforms.

Pipeline Stations – Remote Compressor Facilities –
Supports Ethernet and serial communications where PLCs require continuous machinery status.

Industrial Manufacturing – Rotating Equipment Diagnostics –
Interfaces the 3500 rack with SCADA and historian systems for long-term condition monitoring.

Field Case Study

A refinery experienced intermittent communication failures after replacing a core network switch. Every vibration monitor remained operational, yet the control room lost access to all machine health data.

After confirming network integrity, technicians replaced the 3500/92 136180-01 gateway. Communications were restored immediately without disturbing the protection rack configuration.

The shutdown investigation lasted six hours.

The hardware replacement took less than fifteen minutes.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels and serial numbers.
• Inspect edge connectors for wear or oxidation.
• Check enclosure integrity and rear connector alignment.
• Screen for counterfeit markings and unauthorized repairs.

2. Live Rack Testing

• Install the module in a compatible 3500 rack.
• Verify power-up diagnostics.
• Confirm communication with installed monitor modules.
• Test Ethernet and serial communications.

3. Electrical Parameter Checks

• Measure operating current.
• Verify Ethernet link status.
• Confirm stable Modbus communications under continuous operation.

4. Firmware Verification

• Record firmware revision.
• Verify compatibility with the installed rack configuration.
• Archive configuration information before shipment.

5. Final QC & Anti-Static Packaging

• Complete final visual inspection.
• Protect connectors with anti-static materials.
• Package using ESD-safe cushioning.
• Include inspection documentation upon request.

The Veteran’s Tech Trap Guide

⚠️ Don’t replace monitor modules first.
If the rack LEDs look healthy but the DCS receives no data, investigate the communication gateway before touching the vibration monitors.

❗ Verify the rear I/O module. Trust me.
The 3500/92 supports multiple rear I/O configurations. Ordering the wrong version can leave you with incompatible wiring even though the front module is correct.

⚠️ Back up the Modbus register mapping.
One forgotten configuration file can turn a 10-minute hardware replacement into several hours of PLC troubleshooting.

❗ Check firmware revisions before commissioning.
Older firmware revisions may not support newer communication features or customized Modbus register mapping.

⚠️ Inspect the RJ45 connector carefully.
Loose locking tabs, bent contacts, or damaged patch cables often produce symptoms identical to a failed gateway.

Frequently Asked Questions (FAQ)

Q1: What is the primary purpose of the 3500/92 136180-01?

A: It serves as the communication interface between the 3500 Machinery Protection System and plant automation systems, providing monitored values, alarms, diagnostics, and rack status through Ethernet and Modbus communications.

Q2: Does this module monitor vibration directly?

A: No. It is a communication gateway. Vibration acquisition and machinery protection are performed by monitor modules such as the 3500/42M, 3500/44M, 3500/70M, and 3500/72M.

Q3: Which communication protocols are supported?

A: The 3500/92 supports Modbus RTU, Modbus/TCP, and the proprietary Bently Nevada protocol used by 3500 Rack Configuration Software and Data Acquisition Software.

Q4: Can the 3500/92 replace the older 3500/90?

A: Yes. The 3500/92 retains the communication functions of the 3500/90 while adding the Configurable Modbus Register Utility, giving greater flexibility for PLC and DCS integration.

Q5: Is the module hot-swappable?

A: Follow the OEM maintenance procedures and your site’s lockout/tagout policy. Although the gateway does not perform machinery protection itself, removing hardware from an energized rack should only be done when approved by plant procedures.

Q6: Why is surplus inventory less expensive than buying directly from the OEM?

A: Most surplus inventory originates from modernization projects, cancelled expansions, or unused maintenance stock. Lower pricing reflects sourcing channels rather than product capability. Inspection records, functional testing, and traceability are far more important than purchase price.

Q7: What warranty is typically available?

A: Most qualified industrial automation suppliers provide a 12-month warranty on tested surplus or professionally refurbished 3500/92 136180-01 modules. Before purchasing, request the functional test report, serial-number verification, and firmware revision documentation.
