Bently Nevada 3500/92 Communication Gateway Module

Description

Product Introduction

The Bently Nevada 3500/92 Communication Gateway is designed to integrate the 3500 Machinery Protection System with plant DCS, PLC, SCADA, and asset management systems. Rather than acquiring machinery measurements, it collects monitored values and rack status from the 3500 backplane and makes them available through standard industrial communication protocols.

To be honest, this module is often overlooked until operators suddenly lose vibration data in the control room. The machinery protection system continues protecting the machine, but process historians, HMIs, and PLCs can no longer receive live information. The 3500/92 bridges that gap through Ethernet TCP/IP, Modbus/TCP, and serial Modbus communications.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The machine is healthy.

The vibration monitors are healthy.

Operators still lose every vibration tag on the HMI.

I’ve walked into this exact situation during a refinery turnaround. The maintenance team spent hours checking proximity probes and monitor modules before discovering the communication gateway had failed. Protection never stopped. Visibility did.

That’s an expensive lesson.

Typical Applications

Power Generation – Turbine Protection Integration –
Transfers vibration, temperature, and alarm information from the 3500 rack to turbine control systems using Modbus/TCP or serial Modbus.

Oil & Gas – Compressor Monitoring –
Allows compressor protection data to be shared with DCS and asset management platforms.

Petrochemical Plants – Process Automation –
Provides machine health information to operators without affecting independent protection logic.

Pipeline Stations – Remote SCADA Integration –
Supports long-term monitoring of compressor stations through industrial communication networks.

Manufacturing – Central Condition Monitoring –
Collects machinery health information for predictive maintenance and historian systems.

Field Replacement Example

A natural gas compressor station suddenly stopped updating vibration trends on the SCADA system after a scheduled network maintenance activity. Every monitor module passed diagnostics, yet no process values reached the PLC.

After replacing the failed 3500/92 Communication Gateway, communications resumed immediately. The compressor never stopped running—the only failure was the data path between the protection rack and the automation network.

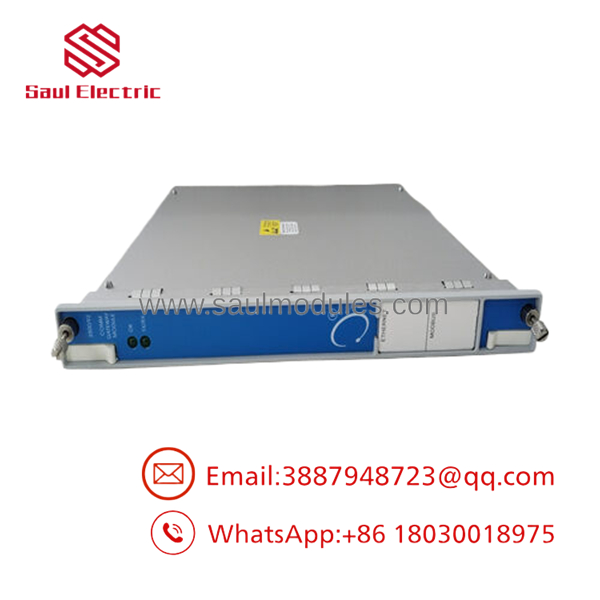

3500/92

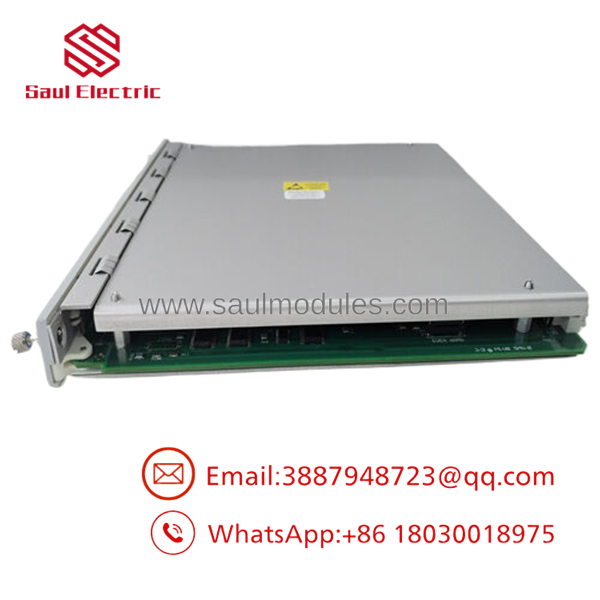

3500/92

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

Inbound Inspection

• Verify OEM labels, serial numbers, and hardware revision.
• Inspect rack connectors and communication ports.
• Check for evidence of unauthorized repair or physical damage.

Live Rig Testing

• Install in a compatible 3500 rack.
• Verify successful startup diagnostics.
• Confirm communication with monitor modules.
• Test Ethernet and serial communication using Modbus software.

Electrical Parameter Checks

• Measure operating current.
• Verify Ethernet link integrity.
• Test serial communication stability under continuous operation.

Firmware Verification

• Record installed firmware revision.
• Verify compatibility with the rack configuration.
• Document firmware before shipment.

Final QC & Anti-Static Packaging

• Perform final visual inspection.
• Protect connectors with anti-static packaging.
• Include inspection records upon request.

The Veteran’s Tech Trap Guide

⚠️ Don’t confuse communication failure with machinery failure.
If the 3500 rack LEDs are healthy but the PLC receives no data, investigate the gateway before replacing monitor modules.

❗ Verify the I/O module option.
The 3500/92 supports several rear I/O configurations (RS232/RS422, RS485, Ethernet combinations). Ordering the wrong version means the existing plant cabling won’t fit.

⚠️ Back up the Modbus mapping.
The 3500/92 uses configurable Modbus registers. If the configuration isn’t backed up, restoring PLC communications can take much longer than replacing the hardware.

❗ Check firmware compatibility.
Older communication gateways may require a firmware upgrade before they can operate with newer rear I/O modules.

⚠️ Inspect the Ethernet cable before blaming the module.
A damaged RJ45 connector or failed network switch can produce exactly the same symptoms as a faulty gateway.

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the 3500/92?

A: It transfers machinery protection data, rack status, alarms, and monitor values from the 3500 system to PLCs, DCSs, SCADA systems, and asset management software using Ethernet TCP/IP and Modbus communications.

Q2: Does the 3500/92 monitor vibration directly?

A: No. It is strictly a communication gateway. Measurement and protection are handled by monitor modules such as the 3500/42M, 3500/44M, 3500/70M, and 3500/72M.

Q3: Which communication protocols are supported?

A: The module supports Modbus RTU (serial), Modbus/TCP, and the proprietary Bently Nevada communication protocol used by the 3500 Rack Configuration and Data Acquisition Software.

Q4: Can the 3500/92 replace the older 3500/90?

A: Yes. The 3500/92 retains the communication capabilities of the 3500/90 while adding the Configurable Modbus Register Utility, providing greater flexibility for PLC and DCS integration.

Q5: Is the module hot-swappable?

A: Follow your plant’s maintenance procedures and the OEM documentation. Although replacing a communication gateway generally does not remove machinery protection, avoid removing hardware from an energized rack unless your site’s approved procedures specifically permit it.

Q6: Why is surplus inventory less expensive than buying directly from the OEM?

A: Most surplus modules originate from plant expansions, modernization projects, or unused maintenance inventory. Price reflects the supply chain rather than quality. Inspection records, firmware verification, and functional testing are the factors that matter.

Q7: What warranty is normally available?

A: Qualified industrial automation suppliers typically provide a 12-month warranty on tested surplus or professionally refurbished 3500/92 modules. Request serial-number verification, firmware documentation, and functional test reports before purchasing.
