Bently Nevada 3500/93 135785-02 System Display Module

Description

Product Introduction

The Bently Nevada 3500/93 135785-02 is the dedicated System Display Module for the 3500 Machinery Protection System. It provides operators with a local interface for viewing vibration measurements, Keyphasor data, relay status, alarm events, and rack diagnostics without requiring engineering software or an external workstation. It communicates with the rack through a high-speed RS422 interface.

Unlike communication gateways such as the 3500/91 or 3500/92, the 3500/93 is an operator display rather than a data communication module. In our field experience, it is often installed in turbine control rooms or compressor panels where maintenance personnel need immediate access to machine health information during startup, shutdown, or troubleshooting.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The turbine starts normally.

No alarms.

No trips.

Then the control room operator says, “The display is blank.”

I’ve watched maintenance teams immediately suspect the vibration monitors, proximity probes, or power supplies. In reality, the machinery protection system was operating normally—the only failure was the operator interface.

That’s an important distinction.

The 3500/93 is a visualization device. Losing it doesn’t necessarily mean you’ve lost machinery protection. It does mean you’ve lost immediate visibility into what’s happening inside the rack.

Typical Applications

Power Generation – Steam and Gas Turbines –
Provides operators with continuous display of shaft vibration, thrust position, and alarm status during startup and load changes.

Oil & Gas – Compressor Monitoring –
Displays real-time compressor condition data in local equipment rooms where rapid maintenance decisions are required.

Petrochemical Plants – Critical Rotating Equipment –
Allows maintenance personnel to review alarm history and monitor values without connecting engineering software.

Pipeline Compressor Stations – Remote Machinery Panels –
Provides a local HMI where SCADA response times may not be sufficient during maintenance activities.

Industrial Manufacturing – Condition Monitoring Systems –
Supports on-site diagnostics for pumps, fans, turbines, and large rotating assets.

Field Replacement Example

During a scheduled outage at a combined-cycle power plant, operators reported that the machinery display remained blank after energizing the protection rack.

All vibration channels continued updating through the DCS.

After verifying power and communication wiring, technicians replaced the 3500/93 135785-02 display module. The display immediately resumed showing machine values and alarm history.

The protection system had never stopped protecting the machine. The operators had simply lost their local window into the rack.

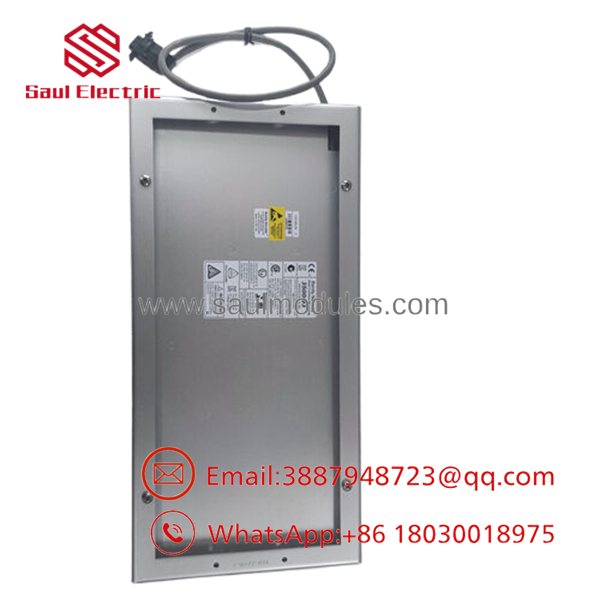

3500/93 135785-02

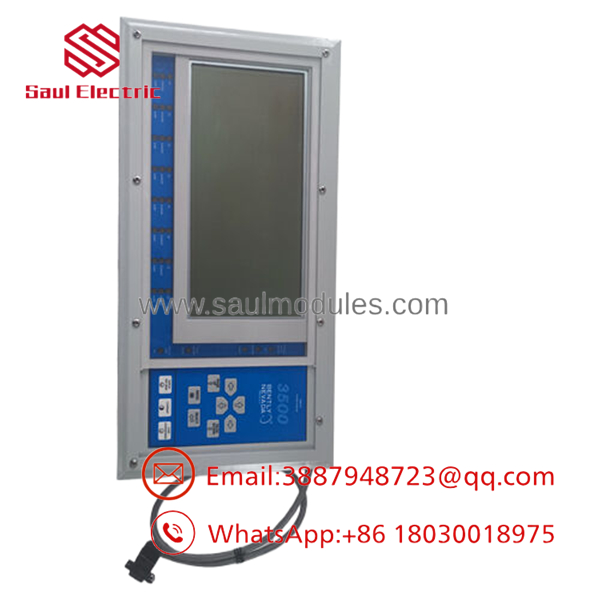

3500/93 135785-02

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Bently Nevada 3500 racks.

1. Inbound Inspection

• Verify OEM labels and serial numbers.
• Inspect LCD screen for scratches and dead pixels.
• Check keypad operation and housing condition.
• Examine RS422 communication connectors.

2. Live Rack Testing

• Connect the display to a compatible 3500 rack.
• Verify startup sequence.
• Confirm display updates every second.
• Check alarm and event list functionality.

3. Electrical Parameter Checks

• Measure power consumption.
• Verify display brightness and backlight stability.
• Test RS422 communication integrity.

4. Firmware Verification

• Record firmware revision.
• Verify compatibility with installed 3500 rack hardware.
• Archive configuration information before shipment.

5. Final QC & Anti-Static Packaging

• Complete functional testing.
• Protect LCD with removable film.
• Package in ESD-safe materials.
• Cushion against vibration and impact during transport.

The Veteran’s Tech Trap Guide

⚠️ A blank display doesn’t automatically mean the protection system has failed.
First verify whether the PLC or communication gateway is still receiving data. The monitors may still be operating normally.

❗ Check the RS422 cable before replacing the display. Trust me.
Loose connectors and damaged communication cables cause more display failures than defective hardware.

⚠️ Don’t ignore the backlight.
A failed backlight can make the LCD appear dead even though the display electronics are functioning correctly.

❗ Mounting distance matters.
Standard installations support up to 100 ft (30 m) between the rack and display. Longer distances require the appropriate external power supply and installation method.

⚠️ Protect the LCD during maintenance.
The display is more vulnerable to physical damage than most monitor modules. A dropped display often means replacing the entire unit.

Frequently Asked Questions (FAQ)

Q1: What is the purpose of the Bently Nevada 3500/93 135785-02?

A: It provides a local operator interface for viewing machine measurements, alarm events, relay status, and rack diagnostics from the 3500 Machinery Protection System.

Q2: Does the 3500/93 perform machinery protection?

A: No. It is strictly a display device. Protection functions remain the responsibility of monitor modules such as the 3500/42M, 3500/44M, 3500/70M, and 3500/72M.

Q3: Can the display be mounted remotely?

A: Yes. The display can typically be mounted up to 100 ft (30 m) from the rack using the standard interface. Longer distances, up to approximately 4000 ft (1219 m), are possible with the appropriate external power supply configuration.

Q4: What communication interface does the 3500/93 use?

A: The display communicates with the 3500 rack through a high-speed RS422 interface, providing approximately one-second display updates.

Q5: Is the module hot-swappable?

A: Follow the OEM maintenance documentation and your site’s procedures. Although replacing the display does not affect machinery protection logic, removing hardware from an energized system should only be performed under approved maintenance practices.

Q6: Why are surplus modules less expensive than buying directly from the OEM?

A: Most surplus inventory originates from plant modernization projects, cancelled expansions, or unused maintenance stock. Lower pricing reflects sourcing channels rather than reduced functionality. Inspection records, functional testing, and traceability are the key indicators of quality.

Q7: What warranty is normally available?

A: Qualified industrial automation suppliers commonly provide a 12-month warranty on professionally tested surplus or refurbished 3500/93 135785-02 modules. Before purchasing, request the functional test report, firmware verification, and serial-number documentation.
