Bently Nevada PWB78434-01 110VAC AC Input Relay Board

Description

Product Introduction & Engineering Value

Pain-Point First: Trying to source reliable components for a legacy 3300 monitoring rack is getting tougher every year. When an old contact input card fails, your automated trip or override system goes blind, risking false alarms or, worse, unmonitored equipment damage.

The PWB78434-01 is a critical legacy component that bridges your external dry contact logic (running at standard 110VAC plant utility voltage) with the internal system logic of your monitoring rack. Built with heavy-duty trace routing and durable, high-isolation relays, this board translates mains-level control signals into clean internal system actions. It keeps older, critical machine protection setups operating precisely as they did when they were commissioned.

Technical Specifications

Field Application & The “Trench” Experience

The “Trench” Story: Retrofitting an Old Boiler Feed Pump Interface

We were on site at a 40-year-old municipal water plant when a heavy utility surge took out the interlock feedback on their main high-pressure boiler feed pump’s monitoring rack. The old 3300 rack stayed powered, but the emergency bypass loop failed to recognize external manual overrides because the original AC relay interface board was scorched.

Finding a direct upgrade wasn’t an option because the plant’s outage window was only six hours long. We replaced the damaged board with a tested, refurbished PWB78434-01 unit. We slide-mounted it back into the power chassis distribution bracket, reconnected the 110VAC line-neutral inputs, and powered the rack up. The logic loop immediately reset, the plant verified the interlocks, and the main pump was back online with five minutes to spare in our window.

Targeted Applications:

• Industrial Boiler Fan Shunt-Trip: Interfacing external 110VAC manual trip pushbuttons directly to the 3300 system shut-down bus.
• Hydraulic Lubrication Skids: Translating external pressure-switch limit trips into the 3300 rack system alarm-override logic.
• Reciprocating Compressor Auxiliary Overrides: Providing high-isolation interfaces for external safety interlocks where 24VDC loops suffer too much voltage drop over long field wiring runs.

Transparency SOP: QA & Testing

Because these legacy boards are often deployed in safety-critical machinery shutdown loops, our testing protocol is rigorous:

• Sub-Component Micro-Inspection: We inspect the trace boundaries under high magnification for any micro-fissures, thermal discoloration, or solder degradation common in older, long-running boards.
• Isolation Integrity Testing: High-potential dielectric testing at 1.5 kV is performed on the relay contacts to ensure no leakage path exists between the 110VAC input power trace and the internal backplane logic.
• Cycle Stress Testing: The board is connected to a simulated 3300 power and logic environment. We cycle the 110VAC input terminals 250 times consecutively to verify there are no sticky relays or coil failures.
• Functional Backplane Verification: We test the board directly inside a live 3300 chassis to confirm that state changes register correctly across the rack backplane.

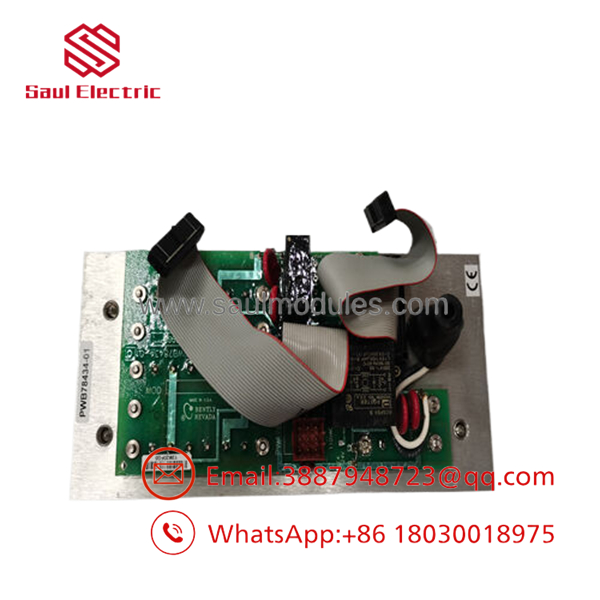

PWB78434-01

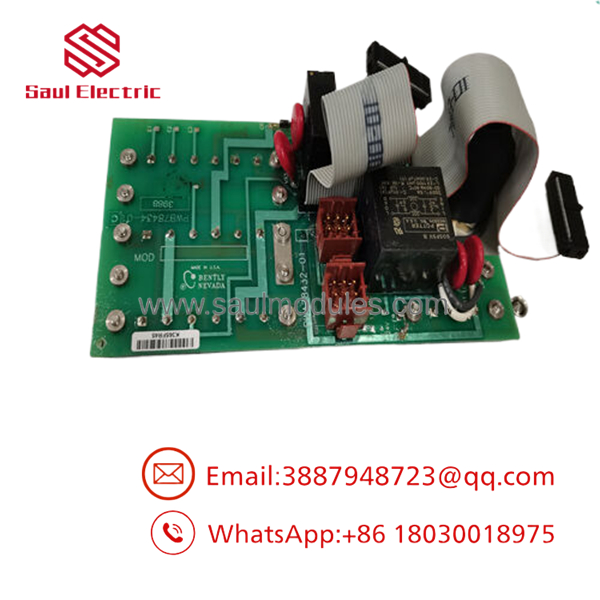

PWB78434-01

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ PART NUMBER CONFUSION RISK:

Pay close attention when reviewing Bently Nevada documentation. The board itself is stamped PWB78434-01 (the Printed Wiring Board), while the completed populated assembly is often referred to as PWA78432-01 or similar variants. If you are comparing your on-site spare to a procurement manifest, these two numbers represent the exact same physical card—one is just the bare board designation and the other is the finished assembly code.

PRO TIP on Line Voltage Wiring:

Always disconnect the main supply breaker before sliding this card in or out of the chassis. Because the is built to handle raw 110VAC power instead of the 24VDC or 5VDC logic signals typical in the rest of the rack, a slipped screwdriver or an uninsulated lead can instantly fry neighboring monitoring cards or the rack’s power supply modules.

Dynamic FAQ

• Q: Does the require external 24VDC logic power to operate?
  • A: No. The board is designed to interface directly with the internal rack backplane power distribution for its logical functions, while using the external 110VAC input specifically to trigger the input relay coils.
• Q: Can this card be used in the newer 3500 Series racks?
  • A: No. The is physically and electrically keyed exclusively for the legacy Bently Nevada 3300 Series architecture. It cannot be used in a 3500 system.
• Q: What is the warranty on these legacy parts?
  • A: Every unit we ship—whether supplied as New Surplus or meticulously Refurbished—is covered by our comprehensive 12-month replacement warranty.
• Q: How do we verify that the relays on this legacy board aren’t worn out?
  • A: During our standard QA process, we measure the contact resistance of each relay under a simulated electrical load. Any relay displaying erratic resistance or exceeding 150 milliohms is replaced with new industrial components before the card is cleared for our stock inventory.
