Description
Product Introduction
The DEIF AGCGS3 (DEIF AGC-3 / AGC/GS/3) is a versatile automatic generator controller designed for power generation systems ranging from single emergency standby gensets to complex paralleling power plants. It combines engine protection, generator metering, automatic voltage matching, frequency synchronization, and circuit breaker control into a single flush-mount unit.
Operating with integrated Power Management System (PMS) capabilities, the AGCGS3 dynamically starts, stops, and adjusts generator loading depending on bus demand. Its hardware flexibility supports CANbus engine communication (J1939) alongside traditional analog sensor inputs, providing real-time data visualizaton and alarm logging across critical power infrastructure.
Key Technical Specifications
| Parameter | Value |
| System Series | DEIF AGC-3 / AGCGS3 Family |
| AC Sensing Voltage | 100–690V AC nominal (L-L) |
| Current Inputs | 1A or 5A nominal (0.5A to 20A operating range) |
| Operating Frequency | 50 / 60 Hz |
| Control Logic | Advanced Microprocessor-Based Real-Time Controller |
| Display Interface | Backlit graphical LCD with multi-line status navigation |
| Protection Rating | IP20 rear housing / IP65 front panel when mounted with gasket |
| Communication Options | CANbus (J1939/EMS), RS-485 (Modbus RTU), Ethernet (Modbus TCP) |
| Operating Temperature | -10^\circC to +50^\circC (14^\circF to 122^\circF) |
| Mounting | Panel door flush-mount with retention clips |
Application Scenarios & The “Trench” Experience
In critical healthcare facilities, islanded microgrids, marine vessels, and data centers, losing a generator bus due to improper synchronization or unmanaged load steps can crash essential power supplies. When configured in a multi-genset ring, the DEIF AGCGS3 automatically handles dead-bus paralleling, phase matching, and breaker closing sequences. If one unit experiences an engine alarm or mechanical fault, the AGCGS3 instantly sheds non-critical loads and signals the next available generator on the bus to spin up and synchronize without dropping primary critical loads.
- Emergency Standby Gensets – Automatic mains failure (AMF) detection, automatic engine starting, and ATS transfer control.
- Marine Power Plants – Main propulsion auxiliary power generation and blackout prevention load-dependent start/stop loops.
- Islanded Microgrids – Dynamic load sharing and power management across multiple diesel or gas generator sets.
- Peak Shaving & Cogeneration – Paralleling onsite generator output with the commercial grid under constant power or power factor control loops.

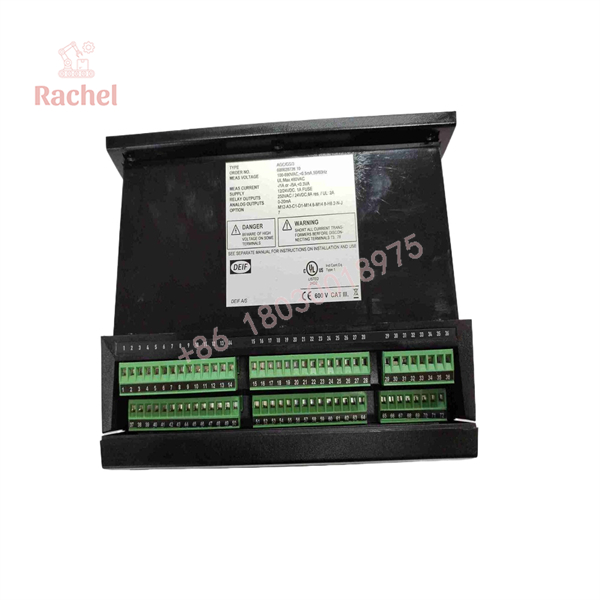

AGCGS3

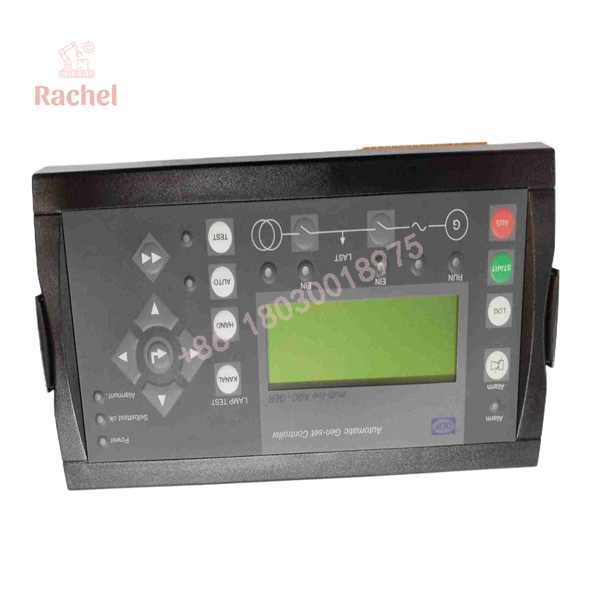

AGCGS3
Transparency SOP: Quality Assurance & Testing
Every surplus or refurbished DEIF AGCGS3 controller undergoes a rigorous 5-stage bench test before dispatch:
- Physical & Display Inspection: Visual audit of the front membrane buttons, housing retention latches, terminal blocks, and LCD display contrast.
- Power-On & Internal Diagnostics: Powered via 12V DC / 24V DC control power; verified boot sequence, internal self-checks, and system clock integrity.
- 3-Phase Voltage & Current Sensing Calibration: Simulated 3-phase 400V AC voltage and CT inputs injected to confirm accurate voltage, frequency, active power (kW), and power factor readouts on screen.
- Relay Output & Input State Test: Verified all programmable digital inputs and binary relay outputs (start/stop commands, breaker open/close signals).
- Event Log Reset & Anti-Static Packaging: Cleared previous field alarm logs, reset default setup parameters, and sealed the unit in static-shielding protective bags.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Phased-Out Model Consideration: DEIF has officially designated the AGC-3 series as End-of-Life (EOL), replacing it with the AGC-4 Mk II. When replacing an existing AGCGS3 in a live power plant, using a direct surplus drop-in AGC-3 saves you from having to re-engineer panel cutouts or modify the existing application logic.
❗ Check CT Secondary Ratings (1A vs 5A): Always verify whether your field Current Transformers are rated for 1A or 5A secondaries and match the unit parameter setup. Mismatched CT configuration leads to severe over-current tripping or failure of active kW load-sharing loops.
⚠️ Correct CANbus Termination: When running CANbus communications for J1939 engine control units (ECUs) or multi-controller power management lines, ensure 120\ \Omega termination resistors are present at both physical ends of the cable bus to prevent packet corruption and erratic load-sharing behavior.
❗ Firmware & Parameter Backup: Before pulling an old AGCGS3 controller off a panel, always back up the application parameter file via DEIF USW (Utility Software). Uploading the exact parameter file to the replacement unit prevents improper phase-sequence tripping or breaker control timing errors.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I replace an AGCGS3 with a newer DEIF controller?
A: Yes. DEIF recommends the AGC-4 Mk II as the modern replacement. However, installing an AGC-4 Mk II may require parameter translation and wiring adjustments. Sourcing an exact-match surplus AGCGS3 / AGC-3 is the fastest way to restore operation with minimal downtime.
Q: Does the AGCGS3 support both diesel and gas engine generators?
A: Yes. The controller supports configurable governor and AVR bias outputs (analog voltage/current or relay pulses) compatible with both gas and diesel engine speed controllers.
Q: What power supply voltage is required to operate the controller?
A: The AGCGS3 internal logic operates on standard 12V DC or 24V DC battery supply systems (8–36V DC continuous operating range).
Q: What warranty comes with this replacement unit?
A: All our new surplus and bench-tested refurbished DEIF controllers come backed by a full 12-month direct replacement warranty.
