DEIF AGC242 Advanced Genset Controller

Description

Product Introduction & Engineering Value

When a generator plant has to coordinate more than one genset, the controller has to do considerably more than start and stop an engine. The DEIF AGC242 combines three-phase electrical measurement, generator control, synchronization, protection, load sharing, and plant-level power management in one controller. DEIF’s documentation identifies the AGC242 specifically for multi-genset applications and CAN-based coordination.

For replacement work, the exact hardware variant matters. The AGC242 provides 14 configurable inputs, 14 configurable relay outputs, three configurable multi-inputs, three CAN interfaces, RS-485 Modbus RTU, TCP/IP Modbus, and a USB 2.0 service interface according to the AGC 200 comparison data.

Technical Specifications

DEIF specifies three-phase measurement capability, selectable 1/5 A CT input, and 100–690 VAC selectable measurement for the AGC242 family. The controller’s published I/O configuration includes 14 configurable inputs and 14 configurable relay outputs.

The AGC 200 architecture also supports synchronization and coordinated generator operation through CANbus. DEIF’s application diagrams show AGC242 controllers coordinating multiple generator breakers and working with AGC244 bus-tie controllers.

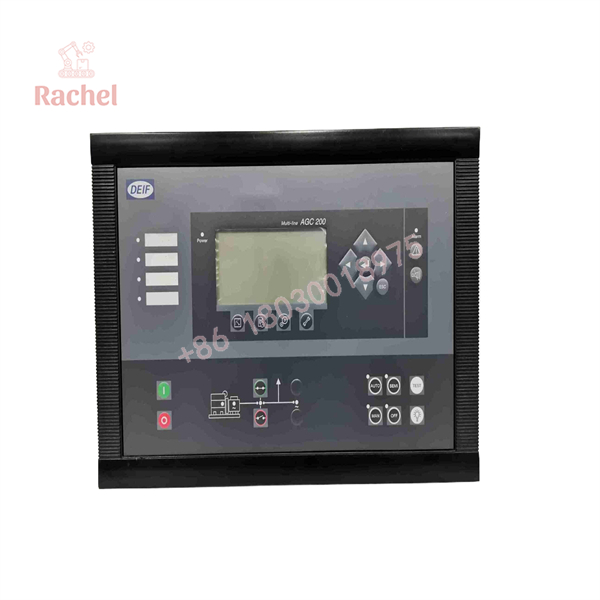

AGC242

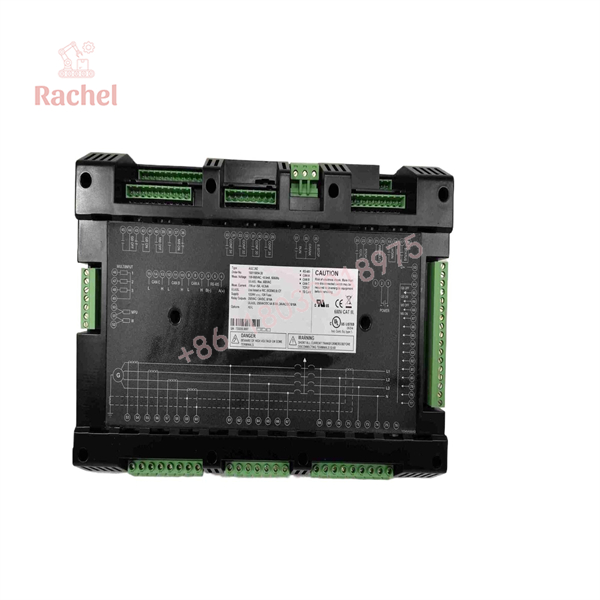

AGC242

Field Application & The “Trench” Experience

A plausible replacement scenario looks like this: a standby power plant has several diesel generator sets operating on a common bus. One AGC242 develops a hardware fault during maintenance. The replacement controller cannot simply be mounted and powered up. The technician first verifies the exact AGC242 variant, CT ratio, voltage-sensing arrangement, breaker feedback, engine interface, and communication topology. The controller configuration is then checked before the genset is returned to automatic load-sharing operation.

That distinction matters because the AGC242 is part of a coordinated system rather than an isolated start/stop relay. DEIF documents power-management systems involving multiple generators, generator breakers, CANbus communication, and bus-tie control.

Niche applications

• Data-center emergency generator paralleling: multiple diesel gensets sharing a common critical-load bus.
• Islanded industrial power plants: synchronized generator sets operating without a utility source.
• Marine auxiliary power systems: coordinated generator operation where load distribution and breaker sequencing are critical.
• Factory peak-load generator plants: generator groups coordinated according to plant loading and configured power-management logic.
• Critical-power black-start systems: generator control and protection during restoration of an isolated electrical bus.

DEIF lists island operation, synchronization, critical-power applications, and multi-generator power-management configurations among the AGC 200 application areas.

Transparency SOP: QA & Testing

For a new-surplus AGC242, a meaningful inspection should go beyond checking whether the LCD powers on.

1. Identity check — Verify the DEIF nameplate, AGC242 model designation, order number, hardware variant, and serial information.
2. Visual inspection — Examine the front display, terminal blocks, enclosure, connectors, and mounting hardware for damage or signs of previous installation.
3. Power-up test — Apply an appropriate DC supply and verify controller startup, display operation, alarms, and basic navigation.
4. I/O verification — Check representative configurable inputs and relay outputs against the intended application.
5. Communication check — Verify applicable CAN, RS-485/Modbus, TCP/IP Modbus, and USB service functions.
6. Configuration review — Confirm that application parameters and generator measurement settings correspond to the customer’s existing system before commissioning.

DEIF provides an AGC emulation tool intended to test functions such as plant modes, logic, breaker handling, mains operation, and generator operation; the documentation notes that the emulation environment can operate with DC supply and CANbus between controllers.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating the replacement as a generic PLC.
The AGC242 is tightly tied to generator electrical measurements, breaker control, synchronization, protection, and power-management logic. A controller that physically fits the panel is not automatically a valid functional replacement.

⚠️ Trap #2 — Ignoring the CT configuration.
The AGC 200 documentation specifies selectable 1 A / 5 A CT inputs. Verify the installed CT secondary rating before connecting the replacement. Incorrect current-transformer configuration can produce incorrect generator measurements and protection behavior.

PRO TIP: Photograph the existing terminal wiring and record the configured parameters before removing the old controller. In a multi-genset system, also document the CANbus arrangement and controller roles. This can save considerably more commissioning time than troubleshooting a wiring mistake after startup.

⚠️ Trap #3 — Assuming all AGC242 units have identical hardware options.
DEIF lists different AGC 200 variants and optional functions. Check the complete ordering information and installed options rather than matching only the model number.

Dynamic FAQ

What is the DEIF AGC242 used for?

The AGC242 is an advanced genset controller in the DEIF AGC 200 family. It is designed for multi-generator applications involving synchronization, generator protection, load sharing, and power management.

How many generators can an AGC242 power-management system handle?

DEIF’s current AGC 200 documentation describes power-management systems supporting up to 32 generators with generator breakers, depending on the overall controller configuration. The same documentation shows AGC242 controllers working with AGC244 bus-tie controllers.

Does the AGC242 support Modbus?

Yes. The AGC242 configuration includes an RS-485 Modbus RTU slave interface and a TCP/IP Modbus communication interface.

What DC supply does the AGC242 require?

The published AGC 200 technical specification gives an auxiliary supply range of 6–36 VDC. The supply circuit should be protected according to DEIF’s installation requirements.

Is a New Surplus DEIF AGC242 the same as a factory-new unit?

Not necessarily. New Surplus normally means unused excess inventory that is being sold outside the original factory distribution channel. The physical condition, packaging, serial number, production date, firmware/hardware configuration, and included accessories should be verified individually rather than assuming they are identical to a current factory shipment.

What warranty should I expect when purchasing an AGC242 replacement?

Warranty terms depend on the supplier and stock condition. Before purchasing, confirm the warranty period, return conditions, serial-number traceability, and whether functional testing is performed before shipment. For a critical generator application, it is also worth confirming the exact AGC242 ordering code and installed options before placing the order.
