Description
Product Introduction & Engineering Value
The Emerson 1C31234G01 is designed for Ovation compact contact input applications where reliable discrete status monitoring is required. Unlike standard digital input modules that depend on external field power, this module provides its own 48 VDC wetting supply for 16 contact inputs with a common return arrangement.
In real plant environments, this type of module handles the signals operators rely on every second: breaker position, pump running status, valve travel confirmation, and protective interlock feedback. A failed contact input card can remove critical operational visibility even when the field devices themselves are healthy.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Emerson Process Management |
| Model Number | 1C31234G01 |
| Platform | Ovation DCS |
| Module Type | Compact Contact Input Electronics Module |
| Input Channels | 16 |
| Input Configuration | Contact inputs with common return |
| Auxiliary Wetting Supply | 48 VDC supplied on-board |
| Personality Module | None required |
| Cavity Insert | 1C31238H01 |
| Propagation Delay | Maximum approximately 7 ms |
| Closed Contact Current | 4–8 mA |
| Diagnostics | Internal module fault monitoring and ground fault detection |
| Typical Power Dissipation | Approximately 4.56 W |
Field Application & The “Trench” Experience
A utility plant experienced a confusing sequence failure during turbine startup. Operators reported that several auxiliary permissives were missing, including pump-ready indications and valve position confirmations. Field technicians verified the switches and wiring at the junction box, but the control room still showed incorrect states.
The investigation moved back to the Ovation cabinet. The failed component was traced to the compact contact input electronics module. After installing a tested Emerson 1C31234G01 and confirming the 48 VDC wetting supply, all 16 discrete inputs returned to normal operation.
The key lesson: when multiple dry-contact signals disappear together, check the shared I/O electronics before replacing field instruments.
Typical application scenarios:
- Turbine auxiliary permissive monitoring using valve limit switches and equipment run contacts
- Generator protection panels monitoring breaker open/close status
- Boiler control systems tracking burner management interlocks
- Plant alarm systems using discrete field contacts

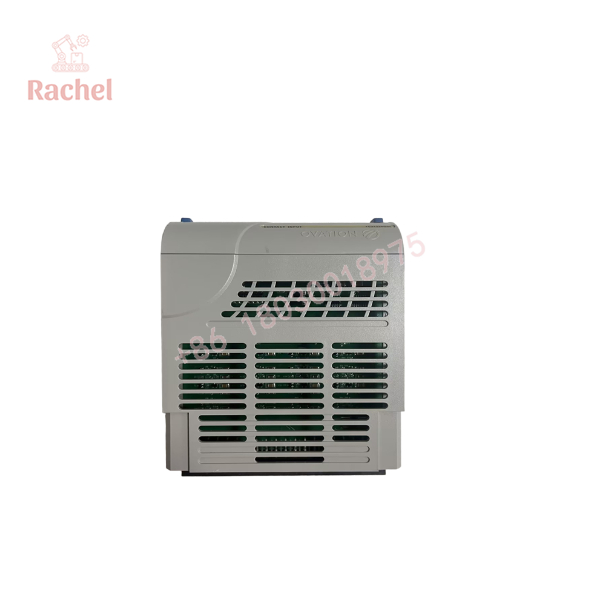

1C31234G01

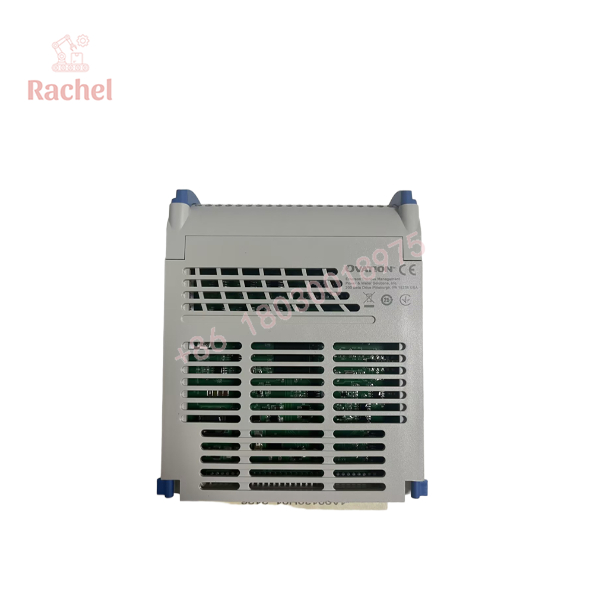

1C31234G01
Transparency SOP: QA & Testing
A spare contact input module should be verified under conditions that simulate actual plant use.
Inspection sequence:
Step 1 — Identification
- Confirm manufacturer marking: Emerson Ovation.
- Verify exact part number: 1C31234G01.
- Confirm no label damage or unauthorized modifications.
Step 2 — Hardware Examination
- Inspect edge connectors.
- Check PCB condition.
- Verify no oxidation, moisture exposure, or physical damage.
Step 3 — Electrical Testing
- Confirm onboard 48 VDC wetting supply operation.
- Verify all 16 input channels respond correctly.
- Test fault indication functions.
Step 4 — Documentation Control
- Record serial number.
- Attach inspection report.
- Maintain warranty and lifecycle records.
For New Surplus inventory, storage history matters. Long-term storage in uncontrolled environments can affect connectors and board surfaces.
The Veteran’s Tech Trap Guide
⚠️ Trap #1: Assuming a Personality Module Is Required
Many Ovation I/O modules use EMOD + PMOD combinations. The 1C31234G01 is different.
It does not use a traditional personality module.
Instead, it uses a cavity insert:
1C31234G01 + 1C31238H01
The insert provides wiring information only.
⚠️ Trap #2: Confusing 1C31234G01 With Compact Digital Input Modules
The part numbers are close, but the applications are different.
- 1C31234G01 → Compact Contact Input, 48 VDC onboard wetting supply
- 1C31232 series → Compact Digital Input variants
Do not substitute based only on channel count.
⚠️ Trap #3: Ignoring Field Contact Quality
A healthy input module can still report unstable signals caused by:
- Dirty mechanical contacts
- Incorrect switch wiring
- Excessive cable resistance
- Ground faults
PRO TIP: Check the complete field loop before condemning the Ovation module.
Dynamic FAQ
Q1. What is the Emerson 1C31234G01 used for?
The Emerson 1C31234G01 is an Ovation Compact Contact Input Electronics Module used to monitor 16 discrete contact inputs with an onboard 48 VDC wetting supply.
Q2. Does the 1C31234G01 require a personality module?
No. This module does not use a standard personality module. The Ovation system uses the 1C31238H01 cavity insert for wiring identification.
Q3. How many field inputs can the 1C31234G01 monitor?
The module supports 16 contact input channels with a common return configuration.
Q4. What should be checked before replacing a failed 1C31234G01?
Recommended checks:
- Verify field switch operation
- Confirm wiring continuity
- Check Ovation diagnostic information
- Confirm correct cavity insert configuration
- Verify replacement part number
Q5. Is New Surplus 1C31234G01 suitable for emergency plant inventory?
Yes, provided the unit has been inspected and electrically tested. For legacy Ovation systems, tested spare modules are commonly maintained to reduce outage risk.
Q6. What warranty should buyers expect for a refurbished 1C31234G01?
Warranty terms depend on the supplier and test process. Buyers should confirm whether the unit is New Surplus, refurbished, or repaired and request documentation of functional testing.
