Emerson Ovation 1B30023H01 I/O Bus Terminator Module

Description

Product Introduction & Engineering Value

A missing or incorrect bus terminator can create some of the hardest faults to diagnose in a distributed control system. The controller may appear healthy, individual modules may pass inspection, yet intermittent communication failures continue because the physical bus is electrically incomplete.

The Emerson Ovation 1B30023H01 is a small but critical infrastructure component. Installed at the correct I/O bus location, it supports reliable communication between Ovation I/O assemblies and helps maintain the stability of legacy control systems still operating in power and process facilities.

Technical Specifications

The Emerson spare parts documentation identifies 1B30023H01 as an “ASSY, I/O BUS TERMINATOR – INTERNAL GUIDES.”

Field Application & The “Trench” Experience”

A thermal power station performing a scheduled Ovation DCS cabinet expansion began experiencing unstable communication alarms after adding additional I/O modules. Diagnostics showed random module dropouts, but the controller, network, and individual I/O cards tested normally.

The maintenance team reviewed the cabinet modification history and discovered the I/O bus termination arrangement had been disturbed during the expansion work. A missing or incorrectly installed terminator caused communication instability across the affected I/O segment.

After installing the correct Emerson Ovation 1B30023H01 terminator and verifying the bus configuration, the I/O network returned to normal operation.

Typical application scenarios include:

• Boiler Control I/O Cabinets — maintaining stable communication between field I/O modules and controllers
• Turbine Control Systems — supporting reliable Ovation I/O bus operation
• Power Plant Auxiliary Control Systems — maintaining legacy DCS communication infrastructure

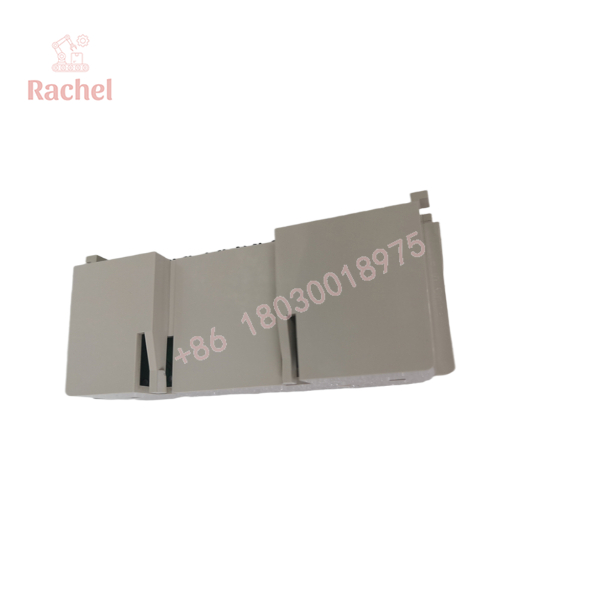

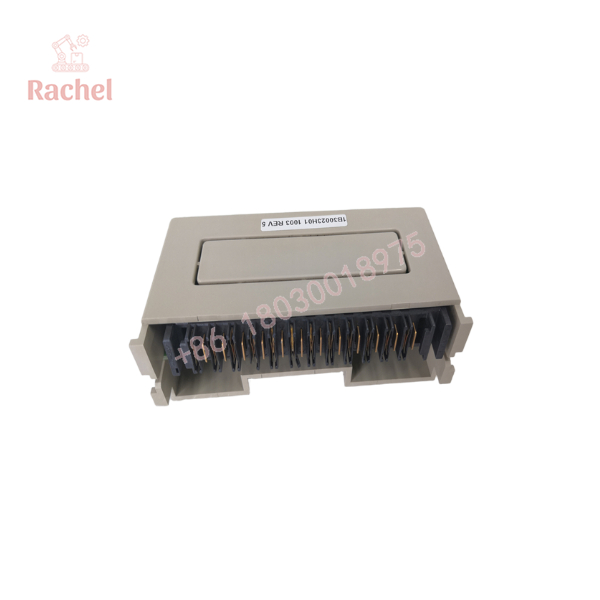

1B30023H01

1B30023H01

Transparency SOP: QA & Testing

For Emerson Ovation 1B30023H01 new surplus or refurbished stock:

Verification Procedure

1. Part Identification
   • Confirm Emerson/Ovation labeling.
   • Verify exact part number: 1B30023H01.
   • Check revision markings.
2. Physical Inspection
   • Inspect connector pins.
   • Check housing condition.
   • Verify no corrosion, contamination, or mechanical damage.
3. Electrical Verification
   • Confirm correct termination component configuration.
   • Check connector continuity where applicable.
   • Verify compatibility with the target Ovation I/O base.
4. Final Release
   • Record inspection results.
   • Apply ESD protection.
   • Provide warranty documentation.

The Veteran’s Tech Trap Guide

⚠️ Do not confuse 1B30023H01 with other Ovation terminators.

The Ovation I/O system may use different termination assemblies. Matching only the physical appearance is not enough.

⚠️ Do not install the terminator in the wrong location.

A terminator belongs at the correct bus endpoint. Incorrect placement can create communication issues across the I/O segment.

PRO TIP: Before removing the original terminator, photograph the complete I/O base arrangement and mark the exact installation position.

⚠️ Do not mistake a bus fault for an I/O module failure.

Intermittent communication alarms are often caused by bus wiring, termination, or connection problems rather than failed I/O electronics.

Dynamic FAQ

Q1: What is the Emerson 1B30023H01 used for?
The 1B30023H01 is an Emerson Ovation I/O Bus Terminator Assembly used to terminate the Ovation I/O bus and maintain communication signal integrity.

Q2: Is the 1B30023H01 an I/O control module?
No. It is a bus termination component. It does not perform analog input, digital output, or control processing functions.

Q3: Where is the 1B30023H01 installed?
It is installed at the appropriate end position of an Ovation I/O bus assembly according to the system hardware configuration.

Q4: Can 1B30023H01 replace another Ovation terminator?
Only after confirming the exact Ovation hardware configuration, I/O base type, and termination requirements.

Q5: How are refurbished 1B30023H01 terminators tested?
Testing should include part verification, connector inspection, physical condition checks, continuity verification, and compatibility review.

Q6: Is Emerson 1B30023H01 still manufactured?
The part is considered a legacy Ovation DCS component. Availability generally depends on remaining inventory, factory support channels, and industrial automation spare suppliers.

Q7: What information should be provided when sourcing a replacement?
Provide the Ovation controller type, I/O rack configuration, existing terminator label, installation location, and any active I/O communication alarms.
