Emerson Ovation 1C31129G03 16-Channel Digital Input Module

Description

Product Introduction

The Emerson / Westinghouse 1C31129G03 is a 16-channel digital input (DI) electronics module engineered for the Ovation Distributed Control System (DCS). Functioning as a primary signal interface within the Ovation I/O architecture, it monitors the status of binary field devices—such as limit switches, relay contacts, proximity sensors, and pushbuttons—operating at nominal 24V DC levels.

Built for mission-critical power generation and process control applications, the 1C31129G03 provides optical isolation between external field wiring and internal I/O bus logic to prevent noise propagation and surge damage. The module features 16 individual front-panel LED status indicators for real-time channel diagnostic monitoring and supports live insertion into active Ovation I/O base assemblies.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a turbine startup at a combined-cycle power plant, a main steam valve position switch fails to register on the DCS operator graphics, blocking automated sequencing. Diagnostic LEDs on the existing input module remain dark despite contact closure. Swapping in a pre-inspected Emerson 1C31129G03 digital input module restores immediate 24V DC contact sensing, allowing the control algorithm to verify valve status and safely proceed with startup.

• Power Generation Facilities: Reads valve limit switches, breaker auxiliary contacts, and emergency stop pushbuttons.
• Water & Wastewater Treatment: Tracks float switch levels, pump run/stop status, and valve position feedback.
• Petrochemical Refining: Monitors pressure switch trips, temperature limit contacts, and safety interlock loops.
• Industrial Process Automation: Connects photo-eyes, proximity sensors, and operator panel selector switches.

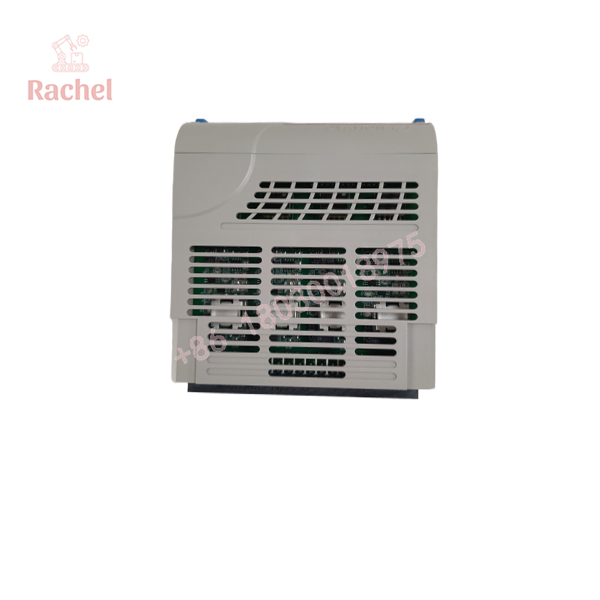

1C31129G03

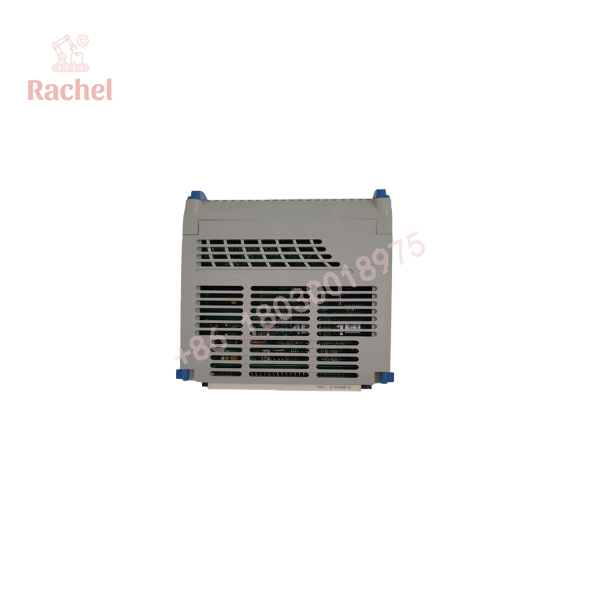

1C31129G03

Transparency SOP: Quality Assurance & Testing

1. Inbound Mechanical Audit: Inspect edge connector contacts for oxidation, examine housing latches for wear, and confirm PCB trace integrity under magnification.
2. Backplane POST & Power Test: Install module into an Ovation test rig; verify clean power-on self-test (POST) execution and logic power LED verification.
3. 16-Channel Contact Simulation: Apply 24V DC excitation to each of the 16 input channels sequentially; verify logic state transitions and LED activation.
4. Noise & Isolation Test: Validate optocoupler isolation performance and debounce filtering across simulated high-noise field input lines.
5. ESD Protection & Packaging: Vacuum-seal inside anti-static shielding bags, surround with custom foam inserts, and package in a rigid shipping container.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Verify Wetting Power Supply: Ensure external 24V DC loop power is steady; floating or sagging field power supplies can cause intermittent channel chatter or false OFF readings.
• ❗ Match Hardware Group Numbers (G01 vs. G03): Group sub-variants (like G03) specify internal voltage thresholds and channel configuration; verify exact group suffix matching prior to hot-swapping into active racks.
• ⚠️ Check PMOD Compatibility: Ensure the personality module (PMOD) on the 1B30035H01 base matches the digital input configuration of the 1C31129G03 to prevent backplane bus fault codes.
• ❗ Verify Contact Bounce Settings: For mechanical limit switches subject to high vibration, ensure debouncing parameters are configured in Ovation Developer Studio to prevent false multiple-trigger events.

Frequently Asked Questions (FAQ)

Q: Can the Emerson 1C31129G03 handle 120V AC input signals?

A: No. The 1C31129G03 is strictly designed for 24V DC inputs. Connecting 120V AC will permanently damage internal optical isolation circuitry.

Q: Can this module be hot-swapped while the DCS is online?

A: Yes. When installed in standard Ovation I/O base assemblies, the module can be removed and inserted online without disrupting adjacent channel operation.

Q: How do the channel LEDs on the front panel behave?

A: Each of the 16 LEDs corresponds to an individual input channel. A lit green/amber LED indicates a true (closed) contact condition, while an unlit LED indicates an open contact or loss of field power.

Q: What warranty applies to this surplus Emerson card?

A: All clean surplus and bench-tested Emerson 1C31129G03 digital input modules include a full 12-month replacement warranty from the delivery date.
