Description
Product Introduction
The Emerson 5X00062G01 is an 8-channel HART Analog Output electronic module engineered for the Westinghouse / Emerson Ovation Distributed Control System (DCS). Operating within power generation facilities, petrochemical plants, and large utility sites, this electronic module mounts onto standard Ovation I/O base units to deliver precise 4–20mA process control to final control elements like control valve actuators, variable frequency drives, and dampeners.
Beyond primary analog loop control, the 5X00062G01 integrates an internal switch array and microcontroller to overlay bi-directional HART digital communications. This enables real-time asset telemetry (such as valve stem position feedback, internal temperature, and device diagnostic alerts) to pass directly from field instruments to Emerson AMS Device Manager software without extra field wiring.
Key Technical Specifications
| Parameter | Value |
| Part Number | 5X00062G01 |
| Manufacturer | Emerson Process Management (Westinghouse) |
| System Architecture | Ovation DCS I/O |
| Number of Channels | 8 Output Channels |
| Output Signal Range | 4 to 20 mA (DC) with HART Digital Overlay |
| Resolution | 14-bit D/A Converter |
| Channel Update Rate | ~24 ms per channel |
| System Isolation | 1000V DC / RMS Isolation (Logic side to Field side) |
| Channel Architecture | Common auxiliary 24VDC power supply and ground (non-channel-isolated) |
| Matching Personality Module | 5X00063G01 (Personality Module) |
Application Scenarios & The “Trench” Experience
A combined-cycle power station experienced a sudden fault code on its turbine steam bypass valve control loop during a peak demand run. The Ovation controller flagged an open-loop communication error, and the active 4-20mA positioner dropped output. Diagnostics revealed that localized heat in the I/O cabinet had caused a failure in the onboard output D/A converter stage of the aging analog output card.
- Power Generation Plants – Turbine Valve Actuation – Controls modulating steam bypass and feedwater valves while pulling HART valve diagnostic curves.
- Petrochemical Refineries – Flow Control Loops – Regulates pneumatic valve positioners across dangerous process lines.
- Water & Wastewater Treatment – VFD Speed Reference – Transmits speed setpoints to high-capacity pumps with continuous health monitoring.
The instrument technician pulled the faulty 5X00062G01 electronic module from its base unit and inserted a bench-tested surplus module into the 5X00063G01 personality slot. The Ovation system automatically re-established field communication, synchronized HART device data with AMS Suite, and restored automatic loop control in under 20 minutes without disrupting the process software logic.

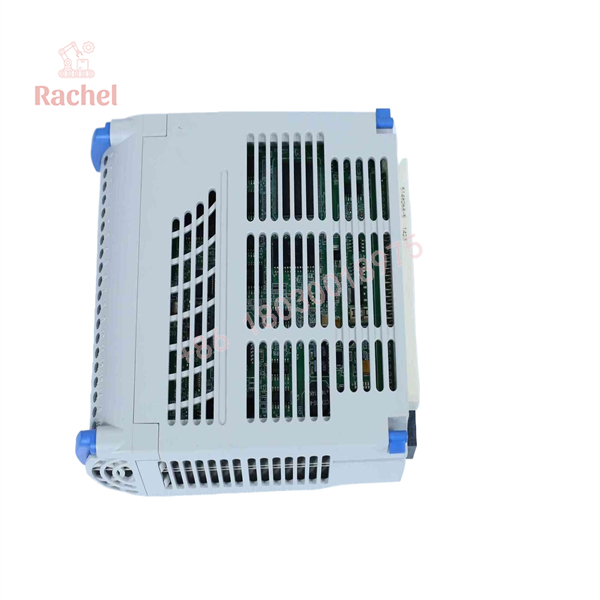

5X00062G01

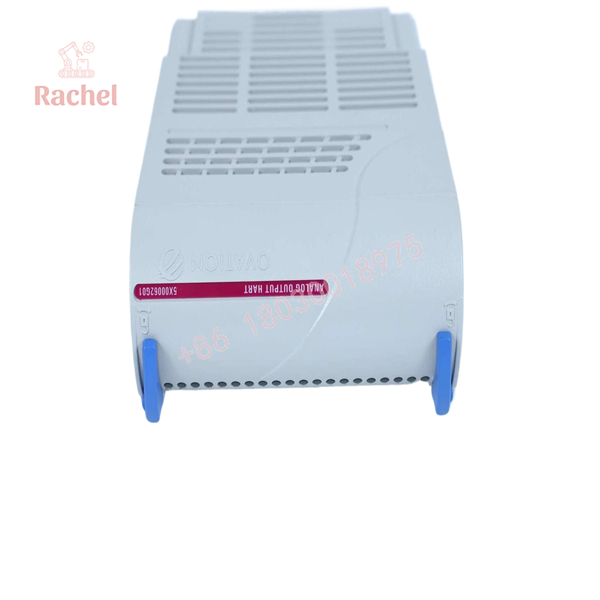

5X00062G01
Transparency SOP: Quality Assurance & Testing
We do not just ship modules; we test them on live Emerson Ovation controller test racks. Every 5X00062G01 electronic module undergoes the following verification process:
- Inbound Visual & Pin Check: Inspecting the backplane edge connector pins, housing latching tabs, and PCB components for thermal degradation or pin bend.
- Backplane & Logic Isolation Test: Testing isolation resistance between the logic bus pins and field-side power rails to confirm 1000V isolation integrity.
- 8-Channel Loop Current Precision Test: Connecting each output channel to a precision digital multimeter and driving the module across 4mA, 12mA, and 20mA setpoints to verify output accuracy within ±0.25% full scale.
- HART Communication Verification: Hooking up a HART communicator / AMS diagnostic station to verify bi-directional digital signal passthrough on all 8 channels simultaneously.
- ESD Shielding Packaging: Sealing the module inside anti-static ESD bags and securing it within custom shock-dampening foam packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ Electronic Module vs. Personality Module Split: The 5X00062G01 is the electronic module (contains the microprocessor, D/A converters, and HART logic). It requires a companion personality module (such as the 5X00063G01) installed in the base unit to complete field wiring terminations and fuse protection. Ensure you are ordering the correct half of the module assembly.
- ❗ Shared Common Ground Warning: Channels on the 5X00062G01 share a common +24VDC field supply ground (they are not channel-to-channel isolated). Connecting two loops that have conflicting ground references will cause current loop errors or ground loop noise that disrupts HART signal decoding.
- ⚠️ Inspect Connector Pins Prior to Hot-Swapping: While Ovation I/O supports online replacement, forcing an electronic module onto its base unit with misaligned guide pins can bend backplane connectors. Always align the card vertically in the track guide before snapping the retention levers closed.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I replace a standard (non-HART) Ovation analog output module with the 5X00062G01?
A: Yes, provided the Ovation software system configuration and base unit personality module (e.g., 5X00063G01) are updated in the Ovation Developer Studio project to recognize the HART electronic module type.
Q: Does the 5X00062G01 require an external 24VDC power supply for loops?
A: Yes. Field current loops rely on an auxiliary 24VDC power input fed through the base unit personality module to power the field positioners and transmitters.
Q: What LED indicators are located on the front panel?
A: The front panel includes status LEDs displaying Power OK (Green), Communication Active (Green), and Fault/Error state (Red) for immediate visual diagnostics inside the cabinet.
Q: Will swapping this module disrupt HART parameter settings stored in field valves?
A: No. HART configuration settings (such as zero/span calibration and device tags) are stored inside the smart field device itself, not on the 5X00062G01 module.
Q: What warranty is provided with this surplus Ovation module?
A: Every new surplus and rig-tested 5X00062G01 module comes backed by our full 12-month replacement warranty.
