Core Product Summary
The Foxboro FBM12 is a discrete input expansion fieldbus module designed for deployment within the Foxboro I/A Series Distributed Control System (DCS). It functions as a slave expansion unit that interfaces with compatible main fieldbus modules (such as the FBM07 or FBM07a) to increase channel density for digital status monitoring.
The module acquires dry contact closures and direct current (DC) voltage status signals from field devices such as limit switches, valve position indicators, and safety interlocks. It converts these binary states into digital data packets, transmitting them to the system control processor via the main module and the redundant system fieldbus.
Key Technical Specifications
| Specification Parameter | Verified Value / Detail |
| Product Type | Discrete Input Expansion Fieldbus Module |
| System Family | Foxboro I/A Series DCS |
| Input Channels | 16 isolated discrete input channels |
| Supported Input Types | Dry contact closures and DC voltage input signals |
| Operational Architecture | Slave expansion module (requires a paired main FBM module like FBM07/07a) |
| Channel Isolation | Opto-electrical isolation per channel |
| Enclosure Protection | Printed circuit board treated with conformal coating |
Detailed Product Overview
The Foxboro FBM12 provides an efficient mechanism for expanding discrete monitoring points in large-scale industrial control applications without requiring a complete redesign of the base slot framework. Because it operates as an expansion slave unit, it relies on a primary fieldbus module to manage communications across the system network, processing input signals locally at the rack level.
Each of the 16 input channels features opto-electrical isolation to protect internal backplane electronics from field-level voltage surges, electrical transients, and ground loops. The module’s internal diagnostics continuously scan for channel-level faults, including open circuits or wiring breaks, transmitting status diagnostics directly to the control environment. Built with industrial-grade electronic components and a protective conformal coating, the FBM12 is engineered to maintain continuous operational integrity in harsh processing environments such as petrochemical plants and power generation facilities.

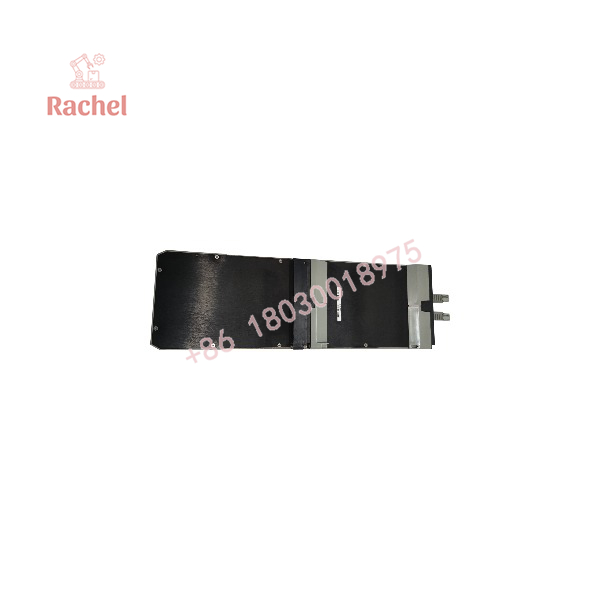

FBM12

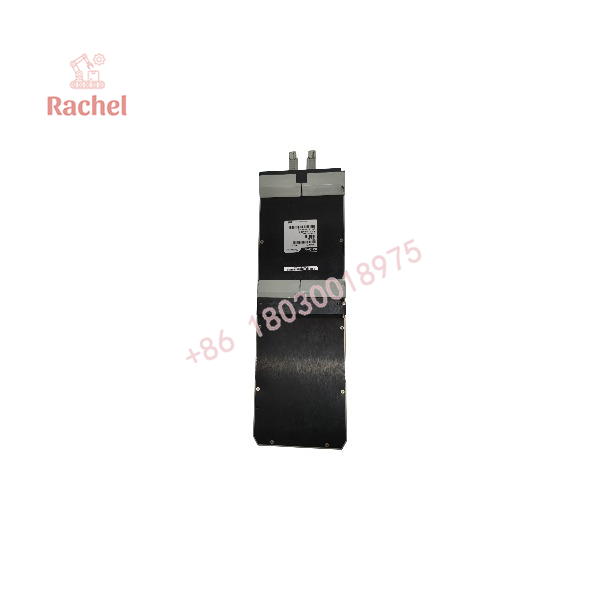

FBM12
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Control System | Foxboro I/A Series DCS | Designed exclusively for integration within the I/A Series architecture. |
| Main Module Dependency | FBM07 or FBM07a main FBM module | Cannot operate independently; requires a paired main module for fieldbus communication. |
| Mounting Baseplate | Standard I/A Series fieldbus module baseplate | Installs directly onto designated expansion mounting locations on the baseplate infrastructure. |
| Field Termination | Compatible termination assemblies or marshalling panels | Field wiring connects through standard system termination accessories matching discrete input requirements. |
Dimensions, Mounting & Connection Notes
- Mounting Method: Modular plug-in installation onto standard Foxboro I/A Series baseplates.
- Expansion Architecture: Positioned alongside or linked directly to its designated main communication module to share fieldbus access.
- Diagnostic Indicators: Front-panel LED indicators provide visual feedback for individual channel status and operational health.
- Maintenance Provision: Supports hot-swapping within redundant system configurations, allowing module replacement without requiring a full system shutdown.
FAQ
What is the Foxboro FBM12?
The Foxboro FBM12 is a 16-channel discrete input expansion fieldbus module used in the Foxboro I/A Series Distributed Control System to monitor digital switch and contact states.
Can the FBM12 operate as an independent module?
No. The FBM12 is a slave expansion unit and must be paired with a compatible main fieldbus module, such as the FBM07 or FBM07a, to handle network communication with the DCS controller.
What types of field signals does the module accept?
It accepts dry contact closures and multi-range DC voltage status signals typically originating from field limit switches, pushbuttons, and valve position feedback sensors.
How are the input channels protected against electrical noise?
Each channel utilizes opto-electrical isolation to guard internal backplane circuits against voltage spikes and ground loop interference.
Does the FBM12 support online replacement?
Yes, when implemented within an appropriate redundant system architecture, the module supports hot-swapping to facilitate maintenance without interrupting plant operations.
