Description
Core Product Summary
The Foxboro FBM204 is an 8-channel analog input fieldbus module designed for use within Foxboro I/A Series and EcoStruxure Foxboro Distributed Control System (DCS) architectures. It is engineered to accept and process standard analog current signals ranging from 0 to 20 mA (including standard 4 to 20 mA loops) originating from field-mounted transmitters, sensors, and measurement devices.
The module performs high-resolution analog-to-digital signal conversion locally, transmitting digitized process variables across a redundant 2 Mbps fieldbus network to system control processors. Featuring strict channel-to-channel galvanic isolation and loop power provisions, the FBM204 provides reliable, low-drift data acquisition for critical industrial process control applications.
Key Technical Specifications
| Specification Parameter | Verified Value / Detail |
| Product Type | 8-Channel Analog Input Module (Current) |
| System Family | Foxboro I/A Series / EcoStruxure Foxboro DCS (200 Series I/O) |
| Input Channels | 8 isolated and independent channels |
| Input Signal Range | 0 to 20 mA DC (supports 4 to 20 mA loops) |
| Input Resistance | 50 Ω nominal per channel |
| Analog Accuracy | ±0.03% of span (including linearity) |
| A/D Conversion | Independent Sigma-Delta converter per channel |
| Module Power Supply Input | Redundant 24 V DC (+5%, -10%) |
| Power Consumption / Dissipation | 7 W maximum / 4 W heat dissipation (typical for series architecture) |
| Isolation Rating | Withstands 600 V AC for 1 minute between channels and ground |
Detailed Product Overview
The Foxboro FBM204 serves as a foundational measurement interface for industrial current loops. Each of its eight input channels utilizes independent sigma-delta analog-to-digital conversion to ensure precise tracking of process variables without interference between channels. The module is capable of powering two-wire field transmitters directly on selected termination assemblies or accepting loop-powered signals.
System configuration parameters—such as engineering unit scaling, filter settings, and alarm limits—are configured through the host control environment. Physical installation relies on a modular baseplate framework that supports redundant power feeds and dual-pathed 2 Mbps fieldbus communications. Galvanic isolation on every channel protects internal control electronics against high common-mode voltage transients, ground loops, and electrical noise common in heavy industrial facilities.
Dimensions, Mounting & Connection Notes
- Form Factor: Compact modular plug-in card designed to occupy a single slot on a 200 Series modular baseplate.
- Mounting Options: Baseplates mount directly onto standard horizontal DIN rails or inside 19-inch equipment racks.
- Wiring Termination: Field current loops route through a separate DIN-rail mounted Termination Assembly (TA) connected via multi-core system cables.
- Hot-Swapping Support: Engineered to allow module removal and insertion under power without disturbing field-side wiring or system communication trunk lines.

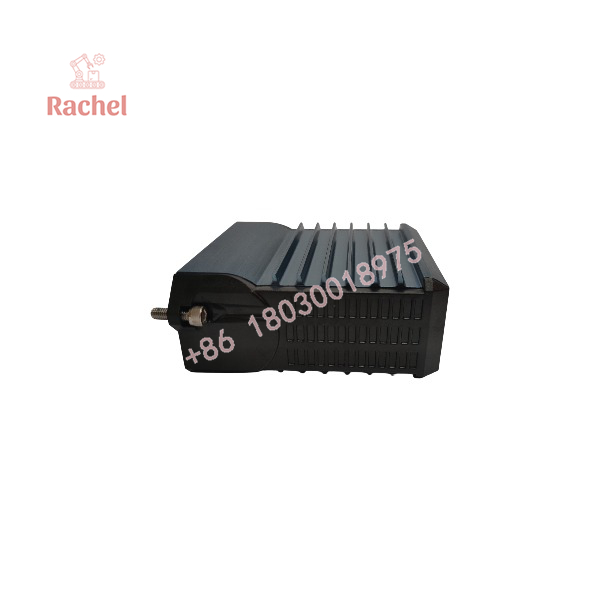

FBM204
FBM204
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
| Control System Platform | Foxboro I/A Series DCS / EcoStruxure Foxboro DCS | Connects via modular 200 Series baseplate infrastructure. |
| Communication Network | Redundant 2 Mbps fieldbus (Path A and Path B) | Interfaces with system processors (e.g., FCP) seamlessly with automatic path switching. |
| Termination Assemblies (TAs) | DIN-rail mounted TAs (Compression or Ring-Lug styles) | Interfaced via standard subsystem transition cables up to 30 meters long, supporting powered or unpowered loops. |
| Environmental Enclosure | Certified for harsh environments up to ISA Standard S71.04 Class G3 | Designed with a ruggedized housing suited for industrial plant spaces. |
FAQ
What is the Foxboro FBM204?
The Foxboro FBM204 is an 8-channel analog input fieldbus module used to process 0 to 20 mA and 4 to 20 mA current signals within Foxboro distributed control systems.
How does the FBM204 communicate with system controllers?
It communicates across a redundant 2 Mbps fieldbus network linked to system field control processors, utilizing dual communication paths for high availability.
Are the input channels isolated from one another?
Yes, each of the eight input channels features independent galvanic isolation from other channels and system ground, rated to withstand 600 V AC for one minute.
Can the module be replaced while the system is powered on?
Yes, the design permits online module replacement (hot-swapping) without disconnecting field wiring, base power, or network data cables.
What termination options are compatible with the FBM204?
It connects to dedicated DIN-rail mounted termination assemblies available in compression screw or ring-lug configurations via standard subsystem cables.
