Description
Core Product Summary (Brand / Model / Key Attributes)
The Foxboro FBM205 is a redundant 0 to 20 mA I/O Interface Module for the Foxboro I/A Series and EcoStruxure Foxboro DCS 200 Series subsystem. It provides four redundant analog input channels and four redundant analog output channels, each operating over the 0 to 20.4 mA DC range.
Modules are installed and operated in redundant pairs that share a common termination assembly. Each module independently converts its inputs, drives its outputs, and reports values over the redundant 2 Mbps module Fieldbus. Control software uses redundant analog input and output blocks to validate the paired readings and commands. The module is electrically compatible with standard HART signals and is rated for Class G3 harsh environments.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 0 to 20 mA I/O Interface Module (Redundant) |
| Input Channels | 4 redundant 0–20 mA DC analog inputs |
| Output Channels | 4 redundant 0–20 mA DC analog outputs |
| Signal Range (each channel) | 0 to 20.4 mA DC |
| Input Accuracy | ±0.3 % of span (includes sense resistor in redundant adapter) |
| Input Accuracy Temperature Coefficient | ±50 ppm/°C |
| Input Impedance | 60 Ω nominal (in redundant adapter) |
| A/D Conversion | Independent Sigma-Delta converter per channel |
| Output Accuracy | ±0.05 % of span |
| Output Load | 750 Ω maximum |
| Output Processing Delay | 30 ms maximum |
| Output Resolution | 13 bits |
| Isolation | Galvanic isolation, channel-to-channel and channel-to-ground (paired channels share common field connection) |
| Power Supply (Redundant) | 24 V DC +5 % / –10 % |
| Power Consumption | 10 W maximum (total for redundant pair) |
| Heat Dissipation | 7 W maximum (total for redundant pair) |
| Loop Power | Channel-to-channel isolated, current-limited and voltage-regulated |
| Communication | Redundant 2 Mbps module Fieldbus |
| HART Compatibility | Electrically compatible with standard HART signals |
| Environmental Rating | Class G3 (harsh) environments |
| Application Features | Configurable Rate of Change Limits; Fail-Safe Action on outputs |
Detailed Product Overview
The Foxboro FBM205 delivers fault-tolerant analog I/O for critical process loops. Two identical modules form a redundant pair and connect to a single common termination assembly. Field transmitters and final elements are wired once; both modules continuously read the same input signals and drive the same output signals. Each module independently performs Sigma-Delta conversion on its inputs and independently attempts to hold the commanded output values. The control processor’s redundant analog input (AINR) and analog output blocks compare the paired data, validate consistency, and select the healthy path if a discrepancy appears.
Input channels accept 0–20.4 mA signals from 2-wire or 4-wire transmitters and support both module-powered and externally powered configurations through the termination assembly. Output channels drive loads up to 750 Ω with 13-bit resolution and a maximum processing delay of 30 ms. Galvanic isolation is provided between individual channels and system ground; the paired redundant channels share the field connection and are therefore not isolated from each other.
The module executes the standard analog I/O application program, offering configurable integration/conversion timing and rate-of-change limits on the inputs plus fail-safe fallback action on the outputs. Loop power supplied by the module is current-limited and voltage-regulated on a per-channel basis. The design is suitable for Class G3 harsh industrial environments and communicates with the associated Fieldbus Communications Module or Field Control Processor over the redundant 2 Mbps Fieldbus.

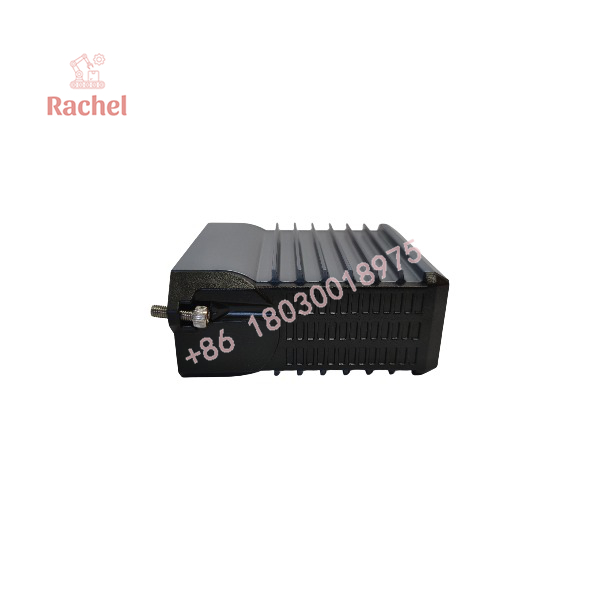

FBM205

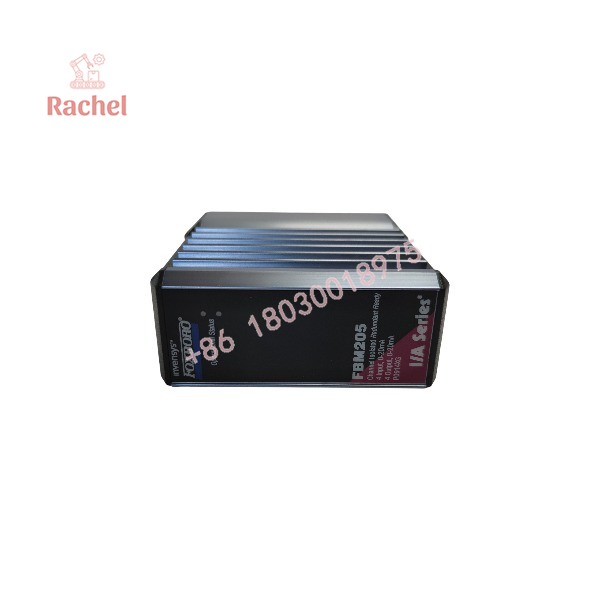

FBM205
Engineering Selection Highlights
- Select FBM205 when true FBM-level redundancy is required for both analog inputs and analog outputs on the same module pair.
- Confirm that the application needs exactly four input and four output channels and that the 0–20.4 mA range matches the field devices.
- Verify that a compatible redundancy adapter and common termination assembly are used so both modules share the same field wiring.
- Account for the combined 10 W power consumption and 7 W heat dissipation of the redundant pair when sizing cabinet power and cooling.
- Use the configurable rate-of-change limits and fail-safe output action to meet process safety or continuity requirements.
- Ensure control software is configured with the corresponding redundant analog input and output blocks for proper validation and failover.
- Confirm HART signal compatibility if digital communication with smart transmitters is required on the same loops.
Dimensions, Mounting & Connection Notes
The FBM205 is a standard 200 Series Fieldbus Module form factor. A redundant pair occupies two adjacent slots and mates with a single common termination assembly that brings field wiring to both modules. Mounting is on a DIN-rail or modular baseplate. Termination assemblies support both locally and remotely mounted configurations and accommodate internally or externally powered transmitters on a per-channel basis. Adequate ventilation must be provided for the combined heat load of the pair. Installation follows normal 200 Series practices and remains within the Class G3 environmental envelope.
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| System Family | Foxboro I/A Series / EcoStruxure Foxboro DCS | 200 Series Fieldbus Module subsystem |
| Redundancy | Must be installed and operated as a redundant pair | Requires redundancy adapter and common termination assembly |
| Fieldbus | Redundant 2 Mbps module Fieldbus | Connects to FCM or FCP |
| Power Supply | Redundant 24 V DC +5 % / –10 % | 10 W maximum for the pair |
| Termination | Common TA supporting per-channel internal/external loop power | 3-tier style assemblies available |
| Software Blocks | Redundant Analog Input (AINR) and Analog Output blocks | Required for validation and failover |
| Environmental | Class G3 (harsh) | Suitable for industrial process areas |
FAQ
What is the Foxboro FBM205?
The Foxboro FBM205 is a redundant 0 to 20 mA analog I/O module that provides four input and four output channels for the I/A Series and EcoStruxure Foxboro DCS.
How does redundancy work on the FBM205?
Two modules operate as a pair sharing one termination assembly. Each independently reads inputs and drives outputs; control software validates the paired values and maintains continuous operation if one module fails.
What is the signal range?
Each channel handles 0 to 20.4 mA DC for both inputs and outputs.
What is the power consumption?
Maximum 10 W total for the redundant pair; heat dissipation is 7 W maximum for the pair.
Is the module HART compatible?
Yes. It is electrically compatible with standard HART signals.
What isolation is provided?
Channels are galvanically isolated from each other and from ground. Paired redundant channels share the field connection and are therefore not isolated from each other.
What environmental rating does it have?
It is designed for Class G3 (harsh) industrial environments.
Verification & Troubleshooting Notes
- Confirm both modules of the pair are present, powered, and recognized on the Fieldbus.
- Verify that the common termination assembly and redundancy adapter are correctly installed.
- Check that the 24 V DC redundant supply is within tolerance and that total pair consumption remains within 10 W.
- Use control-system diagnostics to compare the two modules’ reported input values and output commands; large discrepancies indicate a module or wiring fault.
- Confirm fail-safe configuration and rate-of-change limits match process requirements.
- For HART devices, verify that the signal level and termination support digital communication.
- Module replacement should be performed only after confirming power, Fieldbus integrity, and correct pairing; the healthy partner continues to maintain the process during replacement.
