Product Introduction
The Foxboro FBM216b (Part Number P0922AL) is an 8-channel discrete output Fieldbus Module engineered for the Foxboro I/A Series and EcoStruxure DCS platforms. Serving as an updated revision of the standard FBM216 card, the “b” variant features enhanced component protection and refined driver circuitry designed to actuate heavy-duty field hardware—such as trip solenoids, motor starters, annunciators, and interlock relays.
Each channel operates independently and provides high-level galvanic and optical isolation between field wiring and the host 200 Series baseplate backplane. This protects the Control Processor and adjacent I/O modules from field voltage transients, ground loops, and high inductive back-EMF spikes generated during load switching.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM216b / P0922AL |
| Series | Foxboro 200 Series Subsystem |
| Output Channels | 8 optically isolated discrete output channels |
| Output Switching | External DC or AC load switching (determined by Termination Assembly) |
| Isolation Voltage | 1500V AC channel-to-bus optical isolation |
| Power Dissipation | 3.0W maximum from baseplate power rails |
| Mounting | Foxboro 200 Series DIN-rail baseplate (P0926KE or equivalent) |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 02:40 AM at a chemical processing plant. A high-pressure discharge valve fails to open during an automated line flush sequence. The operator commands the valve “OPEN” on the workstation, but the output remains de-energized, triggering a batch hold interlock. Maintenance troubleshooting reveals that an inductive kickback spike from an unsuppressed 120V AC solenoid coil fried the output switching transistor on Channel 5 of an older output card. Installing a bench-tested FBM216b (P0922AL) module—with its upgraded transient suppression—restores reliable switching power to the valve solenoid, allowing the batch sequence to resume.
Target Application Scenarios
- Emergency Shutdown (ESD) Solenoids: Controls 24V DC or 120V AC trip solenoids on safety dampers, blowdown valves, and fuel shutoff lines.
- Motor Control Centers (MCC): Issues start, stop, and permissive signals directly to heavy magnetic contactors and drive control inputs.
- Industrial Annunciators & Alarms: Actuates warning horns, strobe beacons, and hardwired alarm panels in hazardous process areas.
Field Case Study
A paper mill in Maine experienced intermittent channel failures on 8 steam diverter valve outputs connected to a Foxboro 200 Series baseplate. Diagnostic checks traced the failures to thermal degradation on the internal output driver stages of the installed modules. A bench-tested replacement FBM216b unit was delivered via morning express. The site electrician bypassed the active interlocks, hot-swapped the FBM216b card on the live baseplate, and restored full output control within 12 minutes.

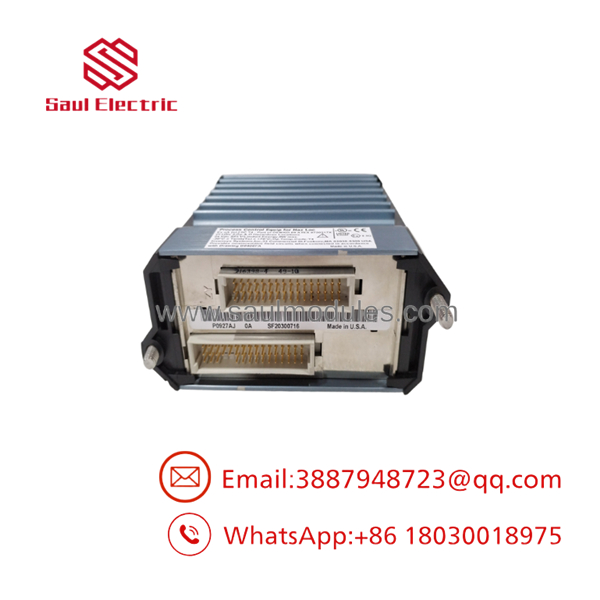

FBM216b

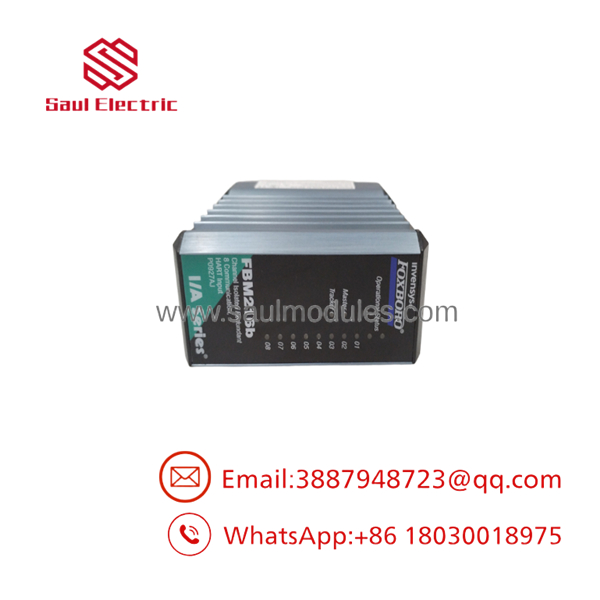

FBM216b
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every FBM216b / P0922AL module undergoes a strict 5-stage workbench validation process prior to dispatch:
- Inbound Visual & Mechanical Inspection: Inspection under high magnification to check PCB traces, edge-connector gold plating, locking tab integrity, and verify no thermal stress on driver transistors.
- Cold Power Rail Diagnostics: Resistance checks across power conversion rails, output driver circuits, and bus lines to rule out shorted components or degraded transient suppression diodes.
- Live Baseplate Bus Handshake: Module is slotted into a live Foxboro 200 Series baseplate connected to a Control Processor to confirm bus address recognition, module handshake, and proper LED status routines.
- 8-Channel Load & Switching Test: Test loads (relays and indicator lamps) are wired across all 8 output channels. We toggle software control blocks from OFF to ON, measuring switching response, channel isolation, and LED status synchronization.
- Anti-Static ESD Packaging: Cleared modules are solvent-cleaned, thoroughly dried, and sealed in heavy-duty anti-static ESD shielding bags prior to custom foam packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Confuse FBM216b (Discrete Output) with FBM214b (Discrete Input/HART)!
While both occupy identical 200 Series slots, the FBM216b is strictly an Output card. Inserting an input module into an output slot will trigger system configuration errors and prevent field device control.
- ❗ Always Install Surge Suppression on Inductive Field Loads!
When switching inductive field loads (solenoids, contactor coils, relays) through the FBM216b and its Termination Assembly (TA), ensure flyback diodes (DC) or RC snubbers (AC) are installed directly across the load terminals. High back-EMF spikes during coil de-energization are the leading cause of output driver failure.
- ⚠️ Verify Fail-Safe Configuration in Software.
The FBM216b supports configurable output safety states upon loss of bus communication (Fail to Low/Zero, Fail to High, or Hold Last State). Always verify that safety-critical outputs (like fuel shutoff valves) are set to “Fail to Zero” (De-energize to Trip) in the DCS database before going live.
- ❗ Bypass Active Loops Before Hot-Swapping.
While Foxboro 200 Series baseplates fully support Live Insertion and Removal (Hot Swap), pulling an FBM216b card immediately de-energizes all 8 output channels, causing connected field devices to revert to their fail-safe states. Transfer downstream loops to manual bypass prior to extraction.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro FBM216b module while the baseplate is powered?
A: Yes, Foxboro 200 Series baseplates support Hot Swap (Live Insertion and Removal). However, pulling the module cuts drive power to all 8 output channels immediately. Always place downstream solenoids, relays, or motor drives in manual bypass prior to removing the card.
Q: What is the exact difference between part numbers FBM216b and P0922AL?
A: “FBM216b” is the functional model designation used in DCS engineering and software configuration, while “P0922AL” is the exact Foxboro hardware part number stamped on the physical module enclosure and circuit board. They refer to the exact same physical product.
Q: What is the main improvement in the FBM216b compared to the original FBM216?
A: The “b” revision incorporates updated component layouts and enhanced transient voltage suppression on the output switching stages, offering greater protection against inductive voltage spikes and electrical noise.
Q: What warranty covers these pre-tested FBM216b modules?
A: Every FBM216b () module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy pre-tested surplus stock instead of ordering directly from Schneider Electric?
A: OEM lead times for legacy Foxboro 200 Series hardware can stretch into weeks or months, and factory list pricing is high. Pre-tested surplus stock allows you to restore critical plant outputs and interlocks immediately at a fraction of the cost.
