Description
Core Product Summary (Brand / Model / Key Attributes)
The Foxboro FBM217 is a 32-channel Discrete Input Module for the Foxboro I/A Series and EcoStruxure Foxboro DCS 200 Series I/O subsystem. It monitors DC voltage presence or contact/solid-state switch states and converts the signals for transmission over the module Fieldbus.
Associated termination assemblies support input voltages of 15–60 VDC, 120 VAC/125 VDC, and 240 VAC. Channels are group-isolated. The module offers configurable input filtering, supports pulse counting up to 250 Hz, and can run Discrete Input, Ladder Logic, Pulse Count, or Sequence of Events application programs. It may be installed as a single module or as a redundant pair.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Discrete Input Module / Voltage Monitor |
| Input Channels | 32 group-isolated channels |
| Supported Voltages (via TA) | 15–60 VDC; 120 VAC/125 VDC; 240 VAC |
| On-State Voltage | 15 to 30 VDC |
| Off-State Voltage | 0 to 5 VDC |
| Input Current | 2.2 mA typical at 30 VDC |
| Source Resistance Limits | On-state ≤ 1 kΩ at 15 VDC; Off-state ≥ 100 kΩ at 30 VDC |
| Filter / Debounce Time | Configurable: None, 4 ms, 8 ms, 16 ms, or 32 ms |
| Pulse Count Rate | Up to 250 Hz |
| Isolation | Group isolation (module + TA); some TAs provide channel isolation |
| Communication | Module Fieldbus (redundant 2 Mbps) |
| Power Supply (Redundant) | 24 V DC +5 % / –10 % |
| Power Consumption | 3 W maximum at 24 V DC |
| Heat Dissipation | 5 W maximum at 24 V DC |
| Application Programs | Discrete Input, Ladder Logic, Pulse Count, Sequence of Events |
| Configurable Options | Input Filter Time, Fail-Safe Configuration |
| Redundancy | Single module or redundant pair with common termination assembly |
| Environmental Rating | Suitable for Class G3 (harsh) environments |
| Typical Part Numbers | P0914TR, P0916CA, RH916XZ and related revisions |
Detailed Product Overview
The Foxboro FBM217 delivers high-density discrete input acquisition for status monitoring, interlocks, and event capture. Each of the 32 channels accepts a 2-wire input from a DC voltage source. Termination assemblies match the field voltage level and, for higher voltages, incorporate attenuation and optical isolation. Channels are group-isolated from system logic; selected termination assemblies also provide channel-to-channel isolation.
In voltage-monitor mode the module detects the presence or absence of voltage within defined on/off thresholds. With appropriate termination assemblies it can also sense dry contacts or solid-state switches. Configurable digital filtering (none / 4 / 8 / 16 / 32 ms) rejects contact bounce and electrical noise while still supporting pulse rates up to 250 Hz without missing counts.
The module executes Discrete Input, Ladder Logic, Pulse Count, or Sequence of Events programs, giving flexibility for simple status monitoring, interlock logic, high-speed totalization, or SOE recording. Fail-safe configuration options are available. For critical applications the FBM217 can be installed as a redundant pair sharing a common termination assembly via a redundancy adapter; control software manages the redundancy.
Power is supplied by the standard 24 V DC redundant baseplate supply. The design is rated for Class G3 harsh environments and communicates with the associated Fieldbus Communications Module or Field Control Processor over the module Fieldbus.

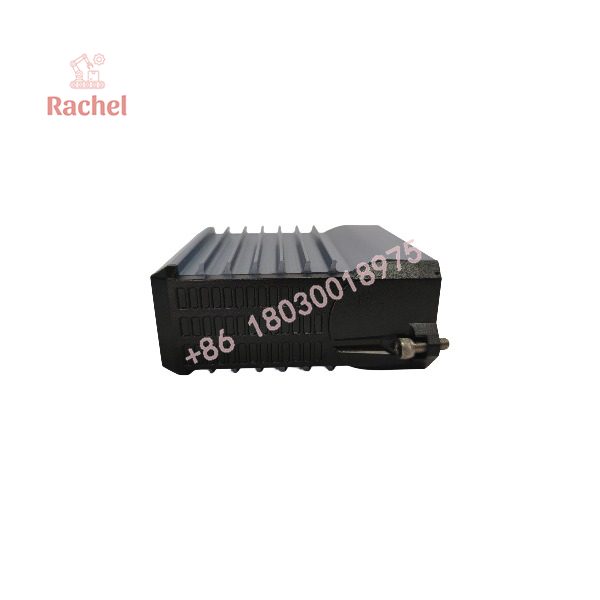

FBM217

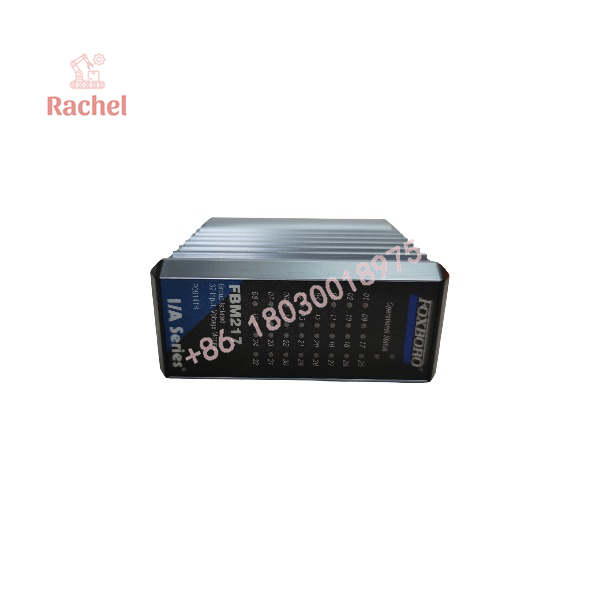

FBM217
System Compatibility & Integration Requirements
| Item / Dependency | Verified Compatibility or Requirement | Practical Note |
|---|---|---|
| System Family | Foxboro I/A Series / EcoStruxure Foxboro DCS | 200 Series Fieldbus Module subsystem |
| Fieldbus | Module Fieldbus (redundant 2 Mbps) | Connects to FCM or FCP |
| Power Supply | Redundant 24 V DC +5 % / –10 % | 3 W maximum consumption |
| Termination Assembly | Voltage-matched TA (supports attenuation, optical isolation, external excitation) | Required for field wiring and voltage adaptation |
| Isolation Scheme | Group isolation standard; channel isolation available with selected TAs | Confirm TA type for isolation requirements |
| Redundancy | Optional redundant pair | Requires redundancy adapter and common TA |
| Application Programs | Discrete Input, Ladder Logic, Pulse Count, SOE | Configurable filter time and fail-safe options |
| Environmental | Class G3 (harsh) | Suitable for industrial process areas |
Dimensions, Mounting & Connection Notes
The FBM217 is a standard 200 Series Fieldbus Module (approximately 102–114 mm high × 45 mm wide × 104 mm deep including mounting features). It mounts on a DIN-rail or modular baseplate. Field wiring is terminated on a dedicated termination assembly that may be local or remote. Higher-voltage termination assemblies contain attenuation and optical-isolation circuitry. When used in a redundant pair the two modules share a single common termination assembly via a redundancy adapter. Installation follows normal 200 Series practices and must remain within Class G3 environmental limits.
Engineering Selection Highlights
- Choose FBM217 when high channel density (32 discrete inputs) is required in a single module slot.
- Match the termination assembly to the actual field voltage (60 VDC, 120/125 V, or 240 V) for correct attenuation and isolation.
- Use the configurable filter times to balance noise rejection against response speed.
- Select Pulse Count or Sequence of Events programs when high-speed event capture or accurate totalization is needed.
- Install as a redundant pair when the discrete signals are critical to plant control or safety interlocks.
- Confirm that control software is configured for the appropriate application program and, if used, the corresponding redundant discrete input blocks.
- Verify source-resistance limits and wetting-current compatibility with the field devices.
FAQ
What is the Foxboro FBM217?
The Foxboro FBM217 is a 32-channel Discrete Input Module that monitors DC voltage presence or contact states for the I/A Series and EcoStruxure Foxboro DCS.
How many channels does it have?
Thirty-two group-isolated discrete input channels.
What voltage levels are supported?
Via the appropriate termination assembly: 15–60 VDC, 120 VAC/125 VDC, and 240 VAC.
Can the module be used redundantly?
Yes. It may be installed as a single module or as a redundant pair sharing a common termination assembly.
What filtering options are available?
Input filter/debounce time is configurable: none, 4 ms, 8 ms, 16 ms, or 32 ms.
Does it support pulse counting?
Yes. It captures pulses without missing counts for rates up to 250 Hz.
What application programs does it execute?
Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events programs, with configurable filter time and fail-safe options.
Verification & Troubleshooting Notes
- Confirm module identity by the FBM217 designation and part number on the label and by successful recognition on the Fieldbus.
- Verify that the termination assembly matches the field voltage level in use.
- Check that the 24 V DC redundant power is present and within tolerance.
- Observe channel status in the control system; incorrect on/off thresholds usually indicate a mismatch between field voltage and the selected TA.
- Review the configured filter time if contact bounce or noise is suspected.
- For redundant installations, confirm both modules of the pair are online and that control software is using the corresponding redundant discrete input blocks.
- Module replacement should be performed only after verifying power, Fieldbus integrity, and correct termination-assembly matching.
