Product Introduction & Engineering Value
Running out of discrete input points during a turnaround is a frequent frustration, especially when the existing wiring supports multiple voltage levels. The FBM217 P0914TR packs 32 group-isolated channels into one baseplate slot and accepts either dry contacts or voltage signals ranging from low-level DC up to 240 V AC, depending on the Termination Assembly selected.
The module executes Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events programs with software-configurable filter times. It can operate as a single module or as a redundant pair when installed with the proper adapter. Communication occurs over the standard 2 Mbps Module Fieldbus to the FCP, making it a direct fit for existing 200 Series installations that need high-density discrete monitoring.
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 32 group-isolated |
| Supported Input Types | Contact sense or voltage monitor |
| Voltage Ranges (TA dependent) | 15–60 V DC, 120 V AC / 125 V DC, 240 V AC |
| On-State Voltage (typical low-level) | 15 to 30 V DC |
| Off-State Voltage | 0 to 5 V DC |
| Input Current | 2.2 mA typical at 30 V DC |
| Filter / Debounce Time | Configurable: none, 4, 8, 16, or 32 ms |
| Maximum Pulse Count Rate | 250 Hz |
| Power Supply | 24 V DC +5% / –10% (redundant) |
| Power Consumption | 3 W maximum |
| Operating Temperature | –20 to +70 °C (–4 to +158 °F) |
| Redundancy | Single module or redundant pair (with adapter) |
Field Application & The “Trench” Experience
A Midwest chemical plant needed to expand discrete status monitoring on a batch reactor interlock panel without adding another baseplate. Two existing low-density cards were replaced with a single FBM217 P0914TR. The original field wiring was landed on a new Termination Assembly that supported 120 V AC inputs. After download of the Discrete Input application program and a quick filter-time adjustment, all 32 points came online cleanly. The extra capacity allowed the plant to bring previously unmonitored limit switches into the SOE system during the same outage.
Typical niche applications:
- High-density limit-switch and valve-position monitoring on a multi-reactor batch train
- 120 V AC or 240 V AC voltage monitoring of motor starter auxiliary contacts in a large MCC lineup
- Pulse counting from turbine flow meters or high-speed proximity sensors on a continuous packaging line where Sequence of Events resolution is required

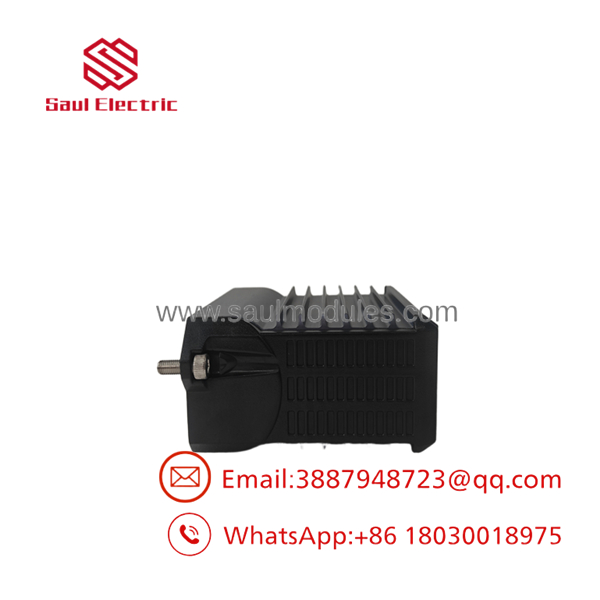

FBM217 P0914TR

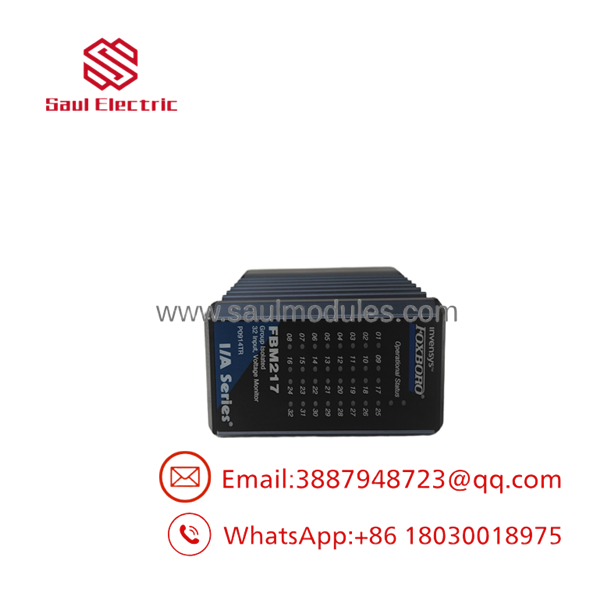

FBM217 P0914TR
Transparency SOP: QA & Testing
- Visual inspection of housing, connectors, and original part-number labeling.
- Power-up on dual 24 V supplies with Fieldbus communication verification.
- Channel-by-channel functional test using both contact-closure and voltage sources appropriate to the intended TA.
- Verification of all configurable filter times and pulse-count operation up to 250 Hz.
- Isolation resistance check between the input group and module logic.
- Extended burn-in under elevated temperature while monitoring for any missed transitions or communication dropouts.
The Veteran’s Tech Trap Guide
⚠️ Termination Assembly selection is critical. The FBM217 itself is voltage-agnostic; the TA determines whether the channels accept low-level DC, 120 V AC/125 V DC, or 240 V AC. Installing the wrong TA will either leave channels dead or expose the module to incorrect voltage levels.
PRO TIP: When configuring for pulse counting or Sequence of Events, set the filter time as short as the field noise will allow. An unnecessarily long debounce can mask short-duration events that the SOE system is expected to capture.
⚠️ Redundant pairing requires the correct adapter and adjacent baseplate slots. Simply installing two FBM217 modules side-by-side does not create redundancy. The proper Redundant Adapter (commonly P0926ZY) and correct odd/even slot placement are required for Master/Tracker operation.
Dynamic FAQ
Q: What voltage levels can the FBM217 P0914TR accept? A: The module itself supports the electrical interface; the Termination Assembly determines the actual voltage range—15–60 V DC, 120 V AC/125 V DC, or 240 V AC.
Q: Can the FBM217 be used in a redundant configuration? A: Yes. Two modules plus the appropriate Redundant Adapter provide module-level redundancy with a single shared Termination Assembly.
Q: Does the module support Sequence of Events (SOE) timestamping? A: Yes. It executes the Sequence of Events application program with configurable filter times, enabling high-resolution event capture.
Q: Is field calibration required? A: No. Discrete input modules do not require calibration. Filter times and application program options are set in software.
Q: Are New Surplus P0914TR units original Foxboro product? A: Yes. Units are original OEM material that have passed full functional testing of all 32 channels, filter options, and Fieldbus communication.
Q: What warranty is provided? A: 12-month warranty against defects in materials and workmanship from the date of shipment for both New Surplus and fully tested refurbished units.
