Product Introduction & Engineering Value
I’ve commissioned more than a few of these when a plant needed to bring existing PROFIBUS drives, remote I/O, or smart actuators into the I/A Series or Foxboro Evo system without a separate gateway. The FBM223 acts as a PROFIBUS-DP master with two independent ports. Slave device process data, parameters, and diagnostic messages are mapped directly into the control database through standard ECB and DCI blocks.
The module mounts on a standard 200 Series baseplate and communicates with the FCP over the 2 Mbps Module Fieldbus. The P0917SY is the common compression-screw Termination Assembly used for the PROFIBUS cable connections. It is suitable for Class I, Division 2 and Zone 2 locations when installed with the proper enclosure and wiring practices.
Technical Specifications
| Parameter | Value |
|---|---|
| Ports | 2 independent PROFIBUS-DP ports |
| Protocol | PROFIBUS-DP (EN 50170) |
| Physical Layer | EIA RS-485, twisted-pair shielded cable |
| Baud Rates | Selectable 9.6 kbit/s to 12 Mbit/s |
| Max Connections | Up to 100 connections per port (analog, discrete, or diagnostic data) |
| Power Supply | 24 V DC +5% / –10% (redundant) |
| Power Consumption | 6 W maximum |
| Heat Dissipation | 6 W maximum |
| Operating Temperature | –20 to +70 °C (–4 to +158 °F) |
| Module Dimensions | 102 mm H × 45 mm W × 104 mm D (approx.) |
| Status Indicators | Red/green operational LEDs + amber activity LEDs per port |
Field Application & The “Trench” Experience
A Midwest paper mill needed to integrate twelve existing PROFIBUS variable-frequency drives on a machine section into the Foxboro system. Two FBM223 modules with P0917SY Termination Assemblies were installed on an existing baseplate. GSD files were loaded, slave addresses assigned, and the process data mapped into DCI blocks. Within one shift the drives were reporting speed, torque, and fault codes directly to the operator stations. No intermediate PLC or gateway was required.
Typical niche applications:
- Integration of PROFIBUS motor drives and soft starters on a multi-section paper machine or continuous web line
- Connection of remote PROFIBUS I/O islands on a long conveyor system where traditional hardwired discrete I/O would be costly
- Linking of PROFIBUS-enabled valve positioners and analytical instruments on a chemical batch train that already runs a mixed fieldbus architecture

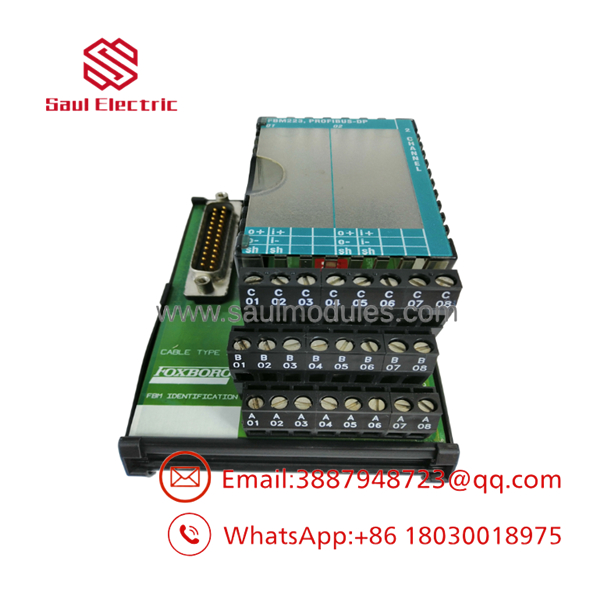

FBM223 P0917SY

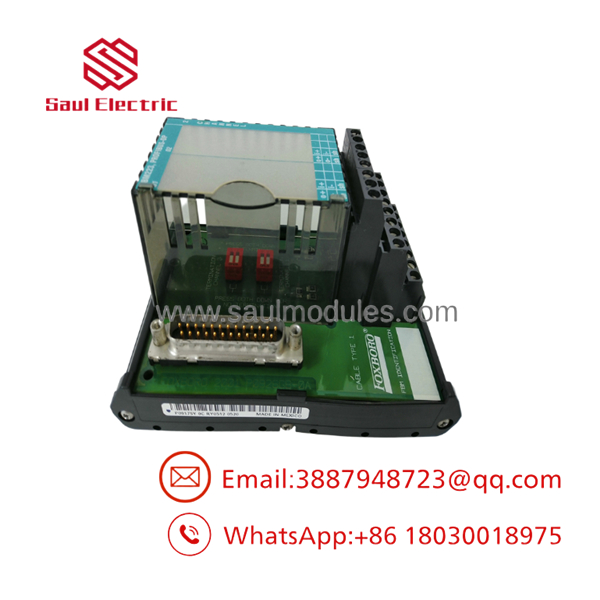

FBM223 P0917SY
Transparency SOP: QA & Testing
- Visual inspection of module and P0917SY Termination Assembly for connector integrity and labeling
- Power-up on dual 24 V supplies with Fieldbus link verification
- Port communication test at multiple baud rates using a known PROFIBUS slave or analyzer
- Verification of diagnostic message pass-through and data mapping into test ECB/DCI blocks
- Isolation and continuity checks on the Termination Assembly terminals
- Extended burn-in while monitoring both ports for stable communication and correct LED status
The Veteran’s Tech Trap Guide
⚠️ GSD file version matters. An outdated or incorrect GSD file is the most common reason a slave fails to go online. Always use the exact GSD supplied by the device manufacturer for the firmware revision installed in the field.
PRO TIP: Set the baud rate on the FBM223 to match the slowest device on the segment. Mixing devices that cannot support the selected speed will cause intermittent dropouts that are difficult to diagnose under load.
⚠️ Termination and cable length. PROFIBUS requires proper termination at both ends of the segment. The P0917SY provides the connection points, but the actual bus terminators must still be installed correctly. Exceeding the cable length limit for the selected baud rate is a frequent cause of CRC errors.
Dynamic FAQ
Q: How many PROFIBUS slave devices can one FBM223 support? A: Each of the two ports can handle multiple slaves. Practical limits depend on baud rate, data volume, and the 100-connection-per-port guideline. Most installations stay well below the theoretical maximum for reliable performance.
Q: What is the role of the P0917SY? A: P0917SY is the compression-screw Termination Assembly that provides the physical PROFIBUS cable connection points for the FBM223 module.
Q: Does the FBM223 support PROFIBUS-PA devices directly? A: No. It is a PROFIBUS-DP interface. PA devices require a DP/PA coupler or link on the segment.
Q: Is configuration done with GSD files? A: Yes. Device-specific GSD files are imported into the configuration tools to define the slave data structure and mapping.
Q: Are New Surplus units with original Foxboro product? A: Yes. Modules and Termination Assemblies are original OEM material that have passed full communication and functional testing.
Q: What warranty is provided? A: 12-month warranty against defects in materials and workmanship from the date of shipment for both New Surplus and fully tested refurbished units.
