Description
Product Introduction & Engineering Value
I’ve used the FBM232 more times than I can count when a plant needed to pull data from Ethernet-based PLCs, analyzers, or smart devices without adding external gateways. The P0926GW version provides a single 10/100 Mbps copper Ethernet port that connects through standard switches or hubs. Protocol drivers are downloaded from the library, most commonly Modbus TCP or EtherNet/IP, and device data is mapped straight into DCI blocks.
The module mounts on a standard 200 Series baseplate and talks to the FCP over the redundant 2 Mbps Module Fieldbus. It is the single (non-redundant) Ethernet FDSI; the FBM233 is the redundant counterpart. IP addressing can be fixed or assigned by DHCP, giving flexibility during commissioning.
Technical Specifications
Communication Type: 10/100 Mbps Ethernet (copper)
Protocols: UDP/IP or TCP/IP; actual device protocol determined by downloadable driver (Modbus TCP, EtherNet/IP, etc.)
IP Address: Fixed or DHCP
Max Devices: Up to 64 (performance dependent)
DCI Connections: Up to 2000
Data Types: 2-byte/4-byte integers, IEEE single-precision float, binary (plus driver-specific conversions)
Power Supply: 24 V DC +5% / –10% (redundant)
Power Consumption: 7 W maximum
Operating Temperature: –20 to +70 °C (–4 to +158 °F) typical (check specific revision)
Module Weight: Approx. 284 g (10 oz)
Dimensions: 102 mm H × 45 mm W × 104 mm D (114 mm H with mounting lugs)
Field Application & The “Trench” Experience
A West Coast specialty chemical plant needed real-time data from eight Ethernet-connected laboratory analyzers and two Allen-Bradley PLCs into the Foxboro system. One FBM232 P0926GW was installed, connected to an existing plant Ethernet switch, and loaded with the appropriate drivers. After mapping the required registers and tags into DCI blocks, all analyzer results and PLC status points appeared in the operator displays and historian within a single commissioning window. No intermediate gateway hardware was required.
Typical niche applications:
- Integration of Ethernet-based analytical instruments and laboratory systems into the DCS database
- Data exchange with third-party PLCs or motor control centers using Modbus TCP or EtherNet/IP
- Collection of packaged equipment data (skid-mounted compressors, package boilers, etc.) that already communicate over plant Ethernet

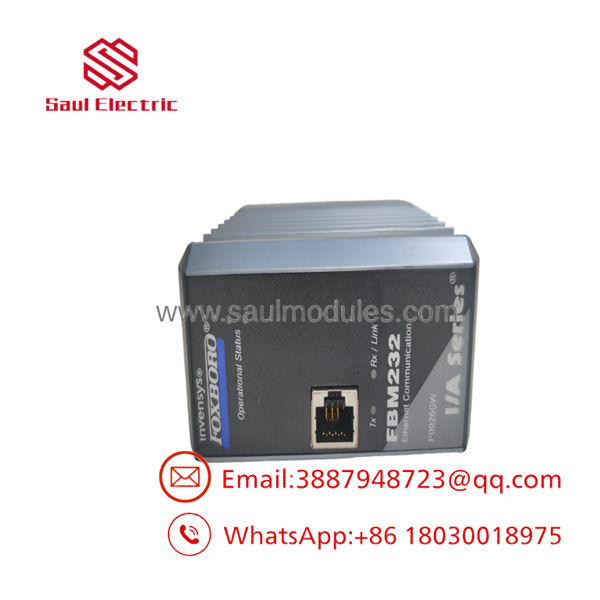

FBM232 P0926GW

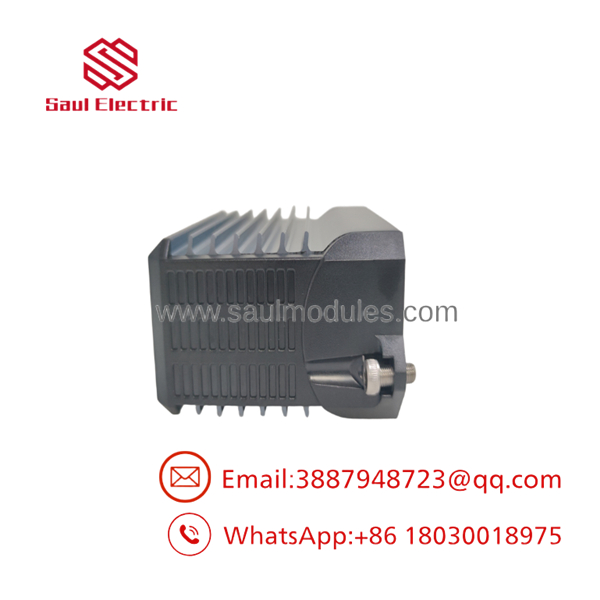

FBM232 P0926GW
Transparency SOP: QA & Testing
- Visual inspection of housing, Ethernet connector, and original P0926GW labeling
- Power-up on dual 24 V supplies with Module Fieldbus link verification
- Ethernet link test at both 10 Mbps and 100 Mbps with a known switch
- Driver load and basic communication test with a reference Ethernet device
- DCI mapping verification and data integrity check
- Extended burn-in while monitoring continuous Ethernet traffic and Fieldbus stability
The Veteran’s Tech Trap Guide
⚠️ Driver and device firmware must match. Loading an outdated or incorrect protocol driver is the most common reason devices fail to exchange data even though the Ethernet link is solid. Always confirm the driver revision against the field device documentation.
PRO TIP: When using DHCP, reserve the IP address on the plant network or document the assigned address immediately. A module that changes IP after a power cycle will disappear from the configuration until the address is rediscovered.
⚠️ Network topology matters. The FBM232 is a single-port device. For critical applications that require network redundancy, the dual-module FBM233 solution or external network redundancy must be planned at the switch level.
Dynamic FAQ
Q: What is the difference between FBM232 and FBM233? A: The FBM232 is the single (non-redundant) Ethernet FDSI module. The FBM233 provides a redundant Ethernet FDSI pair.
Q: Which protocols can the FBM232 P0926GW run? A: Protocol support comes from downloadable software drivers. Common options include Modbus TCP and EtherNet/IP; other drivers may be available depending on system software version.
Q: How many devices can one support? A: Up to 64 devices, limited by performance, scan rate, and the 2000 DCI connection maximum.
Q: Does the module support both fixed and DHCP IP addressing? A: Yes. The IP address can be set as a fixed value or obtained via DHCP.
Q: Are New Surplus P0926GW units original Foxboro product? A: Yes. Units are original OEM material that have passed full Ethernet communication, driver, and Fieldbus testing.
Q: What warranty is provided? A: 12-month warranty against defects in materials and workmanship from the date of shipment for both New Surplus and fully tested refurbished units.
