Foxboro FBM233 2-Port 10/100 Mbps Ethernet Communication Module

Description

Product Introduction

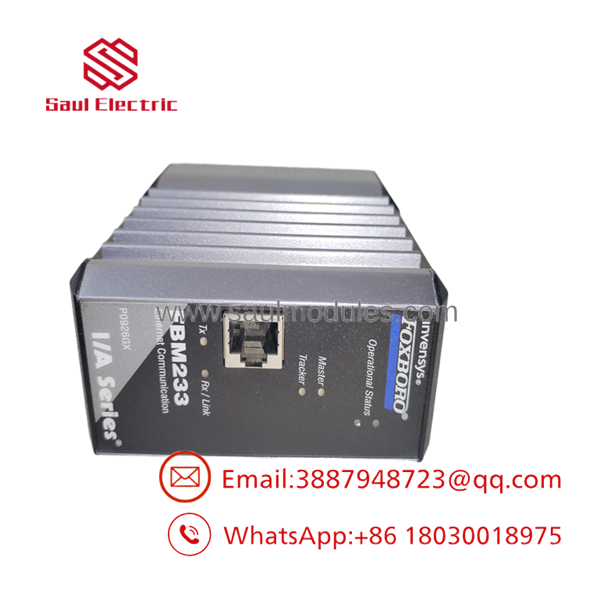

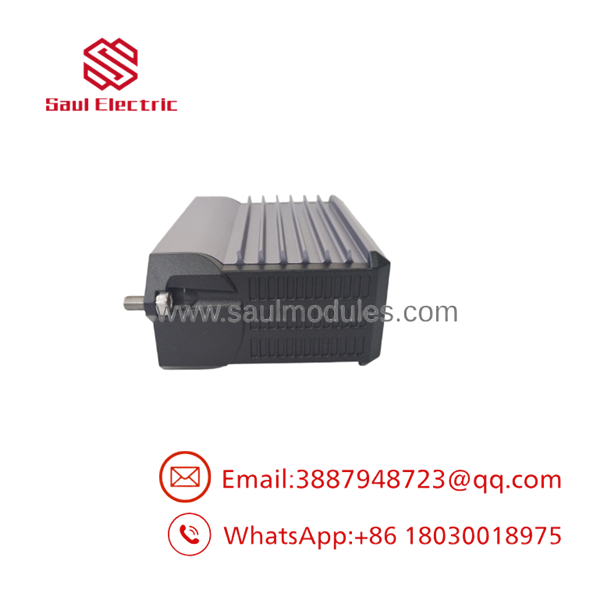

The Foxboro FBM233 (Part Number P0926GX) is a high-performance 2-port Ethernet communication Fieldbus Module engineered for Foxboro I/A Series and EcoStruxure DCS platforms. Operating as an intelligent subsystem bridge, the FBM233 connects high-speed Ethernet networks—such as PLC networks, safety instrumented systems (SIS), power monitoring networks, and smart field skids—directly into the DCS database.

Featuring 2 independent 10/100 Mbps Ethernet channels, the FBM233 supports dual-redundant network topologies or two isolated subsystem subnets within a single 200 Series baseplate slot. Onboard microprocessors manage network protocol stacks and cyclic data polling independently, ensuring high-volume Modbus TCP/IP telemetry is ingested smoothly without overloading the host Control Processor (CP).

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It is 03:45 AM at a gas processing plant during an unplanned throughput surge. The central DCS loses communication with a dual-redundant Modbus TCP link connected to an offshore compressor station package. Channel A dropped offline due to a blown line pulse transformer on an aging communication card, forcing the backup link onto Channel B, which began dropping packets under heavy load. The instrument lead retrieved a bench-verified FBM233 (P0926GX) replacement module from emergency spares. Swapping the card on the live rack and reconnecting the dual RJ-45 Ethernet cables restored full multi-socket Modbus TCP redundancy in under 7 minutes, stabilizing compressor speed telemetry.

Target Application Scenarios

• Redundant Ethernet PLC Integration: Interfacing dual-cable Modbus TCP/IP networks from third-party PLCs (Rockwell/Allen-Bradley, Schneider Modicon, Siemens) into Foxboro Control Processors.
• Substation & Power Monitoring Networks: Collecting high-volume electrical parameter data from digital protective relays, power meters, and breaker controllers over dual Ethernet channels.
• Safety & Emergency Shutdown (ESD) Systems: Linking independent safety instrumented skids or burner management systems (BMS) into the DCS control room alarm dashboard.

Field Case Study

A fertilizer plant in Ohio experienced intermittent socket timeouts between a Foxboro 200 Series rack and a steam turbine governor control skid. Network diagnostics confirmed PHY transceiver degradation on the primary port of the installed module. We supplied a bench-tested P0926GX replacement via morning express. The technician placed the Ethernet driver blocks into manual bypass, hot-swapped the FBM233 module on the live baseplate, and re-established 100% data transmission on both ports without plant interruption.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every / P0926GX module undergoes a strict 5-stage workbench validation process prior to dispatch:

1. Inbound Visual & Mechanical Inspection: Detailed inspection under high magnification to check PCB trace health, edge-connector gold plating, locking tab integrity, and inspect for thermal degradation around Ethernet physical layer transceivers.
2. Cold Power Rail Diagnostics: Resistance checks across internal bus rails, DC-DC converter stages, and Ethernet PHY line drivers to rule out hidden component shorts.
3. Live Baseplate Bus Handshake: Module is mounted on a live Foxboro 200 Series baseplate connected to a Control Processor to confirm bus address recognition, module handshake, and proper LED status routines.
4. Dual-Port Modbus TCP Loopback & Redundancy Test: High-rate Modbus TCP simulators connect to both Ethernet ports simultaneously. We run concurrent multi-socket polling and failover scripts, verifying zero packet loss, stable socket retention, and immediate failover execution in Foxboro I/A system software.
5. Anti-Static ESD Packaging: Cleared modules receive solvent contact cleaning, thorough drying, and are sealed in heavy-duty anti-static ESD shielding bags prior to custom foam packaging.

FBM233

FBM233

The Veteran’s Tech Trap Guide

• ⚠️ Do Not Confuse (2-Port Ethernet) with FBM230 (4-Port) or FBM232 (Ethernet/Serial Combo)!

  While all sit in standard 200 Series slots, the provides 2 dedicated 10/100 Mbps Ethernet ports. Inserting an into a slot configured in the software database for an FBM230 (4-port) or FBM232 (combo) will result in database hardware driver mismatch errors.

• ❗ Verify Dual-Subnet & IP Address Assignments.

  Port 1 and Port 2 on the can be assigned independent IP addresses and subnets. Always verify network addressing, default gateways, and subnet masks in the Control Database prior to commissioning to avoid network broadcast storms or duplicate IP conflicts.

• ⚠️ Ensure Proper RJ-45 Shielded Cable Grounding.

  When running Ethernet cables between different equipment cabinets or power buildings, ground potential differences can introduce high-frequency noise. Use industrial shielded twisted-pair (STP) patch cables connected to properly grounded Foxboro Ethernet Termination Assemblies (TAs).

• ❗ Bypass ECB Driver Blocks Before Hot-Swapping.

  While Foxboro 200 Series baseplates fully support Live Insertion and Removal (Hot Swap), pulling an card instantly severs all active Modbus TCP sockets on both ports, setting all linked database tags to “BAD” quality status. Always disable or bypass associated Equipment Control Block (ECB) drivers prior to card extraction.

Frequently Asked Questions (FAQ)

Q: Can I hot-swap the Foxboro module while the baseplate is powered?

A: Yes, Foxboro 200 Series baseplates support Hot Swap (Live Insertion and Removal). However, pulling the module terminates all TCP/IP Ethernet connections on both ports immediately. Place all affected ECB device driver blocks into manual bypass prior to extracting the module.

Q: What is the exact difference between part numbers , P0926GX, and RH926GX?

A: “” is the functional model designation used in DCS engineering documentation, “” is the standard Foxboro hardware part number, and “RH926GX” is Schneider Electric’s RoHS-compliant (lead-free) hardware equivalent. and RH926GX are 100% functionally and mechanically interchangeable.

Q: Can Port 1 and Port 2 operate on separate physical networks?

A: Yes. Each port on the operates as an independent network interface with its own MAC and IP configuration, allowing you to bridge two segregated network subnets or set up dual-redundant communication links to third-party devices.

Q: What warranty covers these pre-tested modules?

A: Every ( / RH926GX) module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.

Q: Why buy pre-tested surplus stock instead of ordering directly from Schneider Electric?

A: Factory lead times for specialized Foxboro 200 Series Ethernet communication modules can stretch into weeks or months, and OEM list pricing for mature platform hardware is high. Pre-tested surplus stock allows you to restore critical Ethernet subsystem links immediately at a fraction of the cost.
