Description
Product Introduction
The Foxboro FBM237 (Part Number P0914XS) is an 8-channel analog voltage output Fieldbus Module engineered for Foxboro I/A Series and EcoStruxure DCS platforms. While standard analog output cards (like the FBM203) provide 4–20 mA current signals, the FBM237 is specifically designed for systems requiring precise 0 to 10 V DC control voltage signals.
The FBM237 drives field equipment that accepts voltage reference inputs—such as Variable Frequency Drives (VFDs), electronic positioners, building automation dampers, solid-state power controllers, and laboratory instrumentation. Each channel features an independent Digital-to-Analog Converter (DAC) and high-grade optical/galvanic isolation to protect host 200 Series baseplate backplane electronics from field line transients, noise, and ground loops.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FBM237 / P0914XS (RoHS Equivalent: RH914XS) |
| Series | Foxboro 200 Series Subsystem |
| Output Channels | 8 isolated voltage output channels |
| Signal Range | 0 to +10 V DC |
| Resolution / Accuracy | 13-bit D/A conversion |
| Isolation Voltage | 1500V AC channel-to-bus optical isolation |
| Power Dissipation | 3.2W maximum from baseplate power rails |
| Mounting | Foxboro 200 Series DIN-rail baseplate (P0926KE / RH916AQ or equivalent) |
| Operating Temp Range | -20°C to +70°C (-4°F to +158°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 02:15 AM at an HVAC and environmental control center in a pharmaceutical manufacturing facility. The main DCS loses speed demand control over three critical air handling unit (AHU) fan drives. The VFDs accept 0–10 V DC reference inputs, but output Channel 2 on an old FBM237 card drifted to a constant 0 V output state due to a failed internal D/A converter stage, stalling ventilation in a cleanroom unit. The instrument technician retrieved a bench-verified FBM237 (P0914XS) unit from emergency stock. Swapping the card on the live rack instantly restored proper 0–10 V speed demand scaling, bringing AHU fans back online without triggering room pressure alarms.
Target Application Scenarios
- Variable Frequency Drive (VFD) Speed Control: Provides 0–10 V DC speed reference commands to industrial motor drives and HVAC fan/pump controllers.
- Proportional Valves & Damper Actuators: Controls motorized air dampers, water valves, and positioning units configured for voltage-input control.
- Analog Panel Indicators & Chart Recorders: Drives remote 0–10 V analog displays, meters, and local OEM panel instruments.
Field Case Study
A plastics extrusion plant in Illinois experienced voltage signal dropouts on 8 heating zone controllers driven by a Foxboro 200 Series baseplate. Diagnostic checks confirmed thermal fatigue on the output driver stage of the installed card. A bench-tested replacement P0914XS module was delivered via morning express. The site electrician bypassed the temperature control loops, hot-swapped the card on the live baseplate, and restored 100% precision voltage control in under 12 minutes.

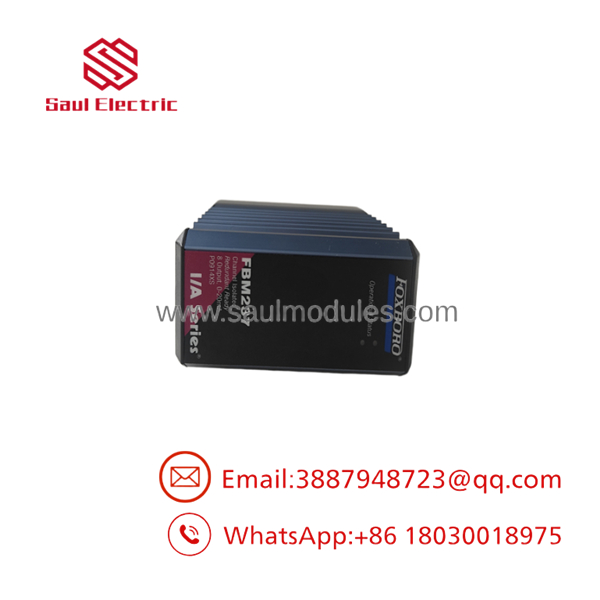

FBM237 P0914XS

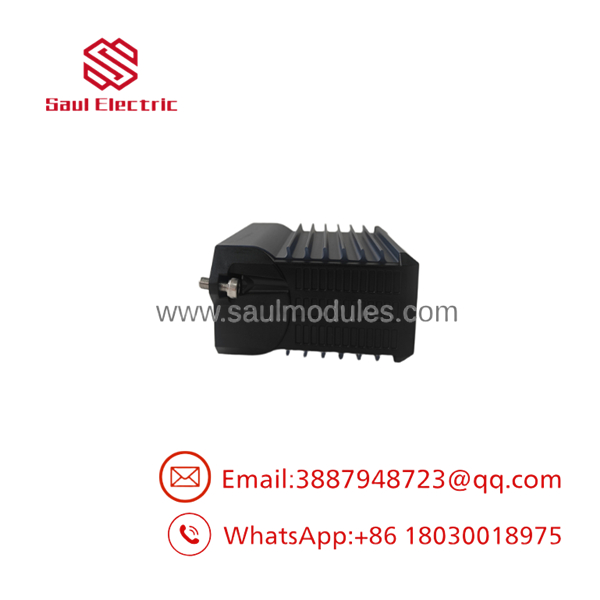

FBM237 P0914XS
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro 200 Series racks. Every / P0914XS module undergoes a strict 5-stage workbench validation process prior to dispatch:
- Inbound Visual & Mechanical Inspection: Inspection under high magnification to check PCB trace integrity, edge-connector gold plating, housing latch mechanisms, and inspect for thermal stress on DAC output stages.
- Cold Power Rail Diagnostics: Resistance checks across internal power conversion circuitry, bus interface lines, and voltage output drivers to rule out shorted components.
- Live Baseplate Bus Handshake: Module is slotted into a live Foxboro 200 Series baseplate connected to a Control Processor to confirm bus address recognition, module handshake, and proper status LED routines.
- 8-Channel Voltage Ramp & Precision Test: High-precision digital multimeters and load resistors are connected across all 8 output channels. We sweep software output blocks from 0.00 V to 10.00 V DC, verifying linear tracking, low noise ripple, and accurate DAC resolution across every channel.
- Anti-Static ESD Packaging: Cleared modules receive solvent contact cleaning, thorough drying, and are sealed in heavy-duty anti-static ESD shielding bags prior to custom foam packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Confuse (0–10V Output) with FBM203 (4–20mA Output)!
The outputs Voltage (0–10 V DC), whereas standard current cards like the FBM203 output Current (4–20 mA). Connecting a voltage output channel into a current loop receiver will result in inaccurate control or potential signal distortion.
- ❗ Mind the Field Load Impedance.
The is designed to drive high-impedance voltage inputs (typically > 1 kΩ). Connecting low-impedance or shorted field loads will draw excess current, triggering channel current-limiting protection and causing output voltage droop.
- ⚠️ Verify Fail-Safe Configuration in the Database.
The supports configurable output fallback states upon loss of bus communication (Hold Last Value or Fail to 0V / Preset Value). Always verify that safety-critical loops are configured to “Fail to 0V” or a safe predefined voltage before going live.
- ❗ Bypass Active Loops Before Hot-Swapping.
While Foxboro 200 Series baseplates fully support Live Insertion and Removal (Hot Swap), pulling an module instantly drops output signals on all 8 channels to 0 V, causing connected VFDs or dampers to revert to their de-energized states. Place field loops into manual bypass prior to extraction.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the Foxboro module while the baseplate is powered?
A: Yes, Foxboro 200 Series baseplates support Hot Swap (Live Insertion and Removal). However, pulling the module cuts output signals to 0 V across all 8 channels immediately. Always transfer downstream VFDs, dampers, or valves to manual control prior to removing the card.
Q: What is the exact difference between part numbers , P0914XS, and RH914XS?
A: “” is the functional model designation used in DCS engineering software, “” is the standard Foxboro hardware part number, and “RH914XS” is Schneider Electric’s RoHS-compliant (lead-free) hardware equivalent. and RH914XS are 100% functionally and mechanically interchangeable.
Q: Can the output 4–20 mA signals?
A: No. The is strictly a 0 to 10 V DC voltage output module. If your field loops require 4–20 mA current outputs, an FBM203 module should be used instead.
Q: What warranty covers these pre-tested modules?
A: Every ( / RH914XS) module sold includes a full 12-Month Functional Warranty. If the card experiences hardware failure under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
