Description
Product Introduction
The Foxboro FCP270 (Part Number P0926CP) is a central Field Control Processor engineered for the Foxboro I/A Series and EcoStruxure DCS platforms. Functioning as the “brain” of the control node, the FCP270 executes complex regulatory, sequential, and advanced control strategies while interfacing directly with up to 128 local or remote 200 Series Fieldbus Modules (FBMs).
Operating on a high-speed 100 Mbps Ethernet-based Control Network (The Mesh), the FCP270 delivers high execution throughput and rapid scan rates for demanding process applications. When deployed as a fault-tolerant redundant pair in a dedicated baseplate, two FCP270 modules run in tight lockstep synchronization: if the primary controller experiences a hardware fault, the secondary controller takes over execution within milliseconds with zero bump to field outputs or operator displays.
Key Technical Specifications
| Parameter | Value |
| Manufacturer | Foxboro (Invensys / Schneider Electric) |
| Part Number | FCP270 / P0926CP (RoHS Equivalent: RH926CP) |
| Series | Foxboro I/A Series / EcoStruxure Control Hardware |
| Processor Type | High-performance 32-bit RISC Architecture |
| FBM Capacity | Connects up to 128 200 Series FBMs via 2 Mbps HDLC Fieldbus |
| Network Interface | Dual 100 Mbps Redundant Ethernet Control Network (The Mesh) |
| Redundancy | Hardware Redundant Pair (Fault-Tolerant) Support |
| Power Dissipation | 8.5W maximum per processor module |
| Mounting | Foxboro Control Processor Baseplate (P0926KE / RH926KE or equivalent) |
| Operating Temp Range | 0°C to +60°C (+32°F to +140°F) |
Application Scenarios & The “Trench” Experience
The Trench Story
It is 02:20 AM during an online catalyst load shift at a continuous chemical reforming unit. The primary Control Processor in Cabinet 12 displays a steady red “FAIL” LED after an onboard memory parity check fails. Because the system was configured with a fault-tolerant pair of FCP270 (P0926CP) modules, the backup instantly assumed active master status without a single valve position drifting or losing process history on the plant workstation. The lead instrument technician replaced the failed primary with a bench-verified spare on the live baseplate. Within 30 seconds, the new card auto-synced its control database from the active partner and restored full 1:1 hardware redundancy.
Target Application Scenarios
- Central Plant Process Control: Executes core control loops (PID, ratio, cascade, sequence) for boilers, distillation columns, reactors, and turbine balance-of-plant skids.
- High-Availability Redundant Control Nodes: Essential for critical process units where controller downtime causes costly trips or safety hazards.
- Large-Scale Subsystem Integration: Serves as the high-speed gateway aggregating telemetry from dozens of FBMs, serial cards (FBM224), and Ethernet gateways (FBM230/232) into the DCS architecture.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual Foxboro Control Processor test benches. Every / P0926CP module undergoes a strict 5-stage workbench validation process prior to dispatch:
- Inbound Visual & Mechanical Inspection: Magnified check of PCB traces, backplane gold connector pins, latching handles, and thermal pads across internal memory/processor ICs.
- Cold Resistance & Power Rail Diagnostics: Multi-point resistance checks across internal power buses, DC-DC converter stages, and network transceivers to rule out component shorts.
- Live Mesh Network & Bootloader Verification: Module is mounted on a live Foxboro CP baseplate and booted into the System Manager to verify MAC address recognition, memory integrity, and clean firmware boot routines.
- Redundant Lockstep Sync & Failover Test: Paired with a second in a redundant baseplate configuration. We run heavy control block execution loads, cycling power and network links on the primary card to verify seamless sub-second failover and database re-synchronization.
- Anti-Static ESD Packaging: Cleared modules receive solvent contact cleaning, thorough drying, and are sealed in heavy-duty anti-static ESD shielding bags prior to custom foam packaging.

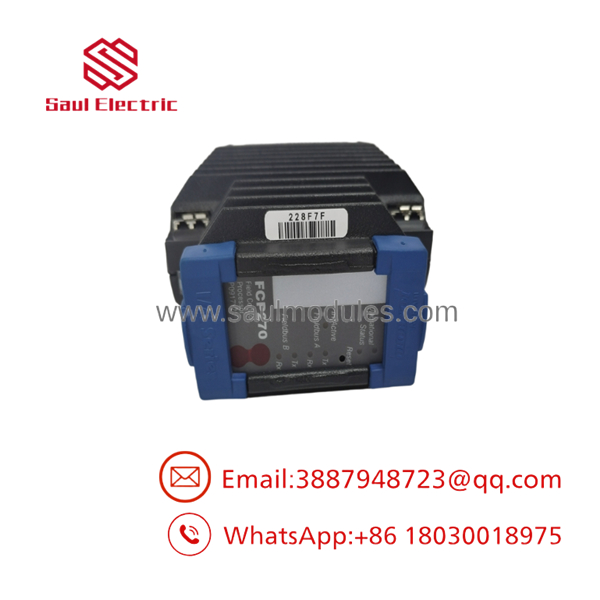

FCP270

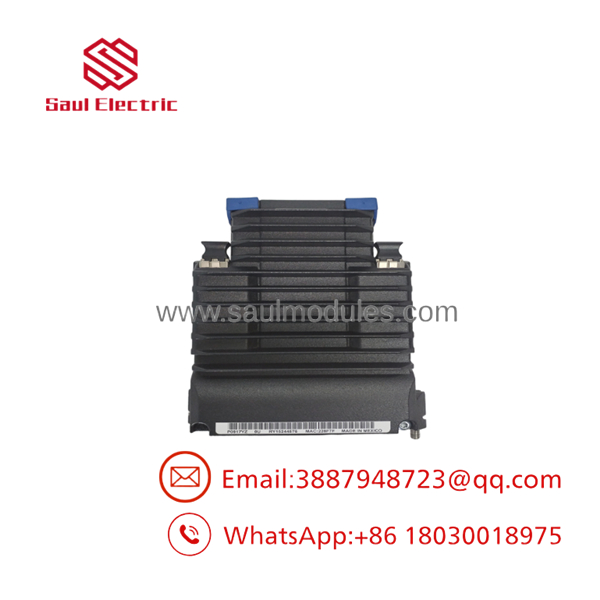

FCP270
The Veteran’s Tech Trap Guide
- ⚠️ Do Not Confuse with Legacy ZCP270 or FCP280!
While all are Foxboro controllers, the mounts directly on a baseplate linked to 2 Mbps 200 Series FBM fieldbuses. The ZCP270 connects to FBMs via fieldbus communications modules (FCMs), and the newer FCP280 uses gigabyte control networks. Always verify database hardware definition before swapping controller generations.
- ❗ Verify Network Transceiver / Cable Type.
The utilizes specific 100 Mbps fiber optic or copper network interface cables to connect to Foxboro Control Network switches (Mesh Switches). Ensure network patch connections and switch port speeds match system specifications.
- ⚠️ Observe Redundant Boot-Up Order.
When inserting a replacement into an active redundant pair setup, confirm that the running partner is healthy (Green Active LED) before slotting the replacement card. The new card will automatically enter “Tracking” mode and download the running database from the active partner.
- ❗ System Software (Foxboro I/A or EcoStruxure) Compatibility.
Ensure the ‘s internal bootloader and firmware version match the version required by your host software environment (e.g., I/A Series v8.x or EcoStruxure Foxboro DCS) to prevent reboot loops upon system connection.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap an module while the system is running?
A: Yes, if configured as a redundant pair (Fault-Tolerant ). You can extract and replace the failed module without interrupting control execution on the running partner. If configured as a single (non-redundant) controller, pulling the module will immediately stop control execution for all attached FBMs.
Q: What is the exact difference between part numbers , P0926CP, and RH926CP?
A: “” is the functional model designation used in DCS system engineering, “P0926CP” is the standard Foxboro hardware part number, and “RH926CP” is Schneider Electric’s RoHS-compliant (lead-free) hardware equivalent. and RH926CP are 100% functionally and mechanically interchangeable.
Q: How many 200 Series Fieldbus Modules (FBMs) can a single control?
A: A single node supports up to 128 200 Series FBMs connected over its 2 Mbps HDLC fieldbus ports (via local baseplates or fiber optic FCM couplers).
Q: What warranty covers these pre-tested modules?
A: Every ( / RH926CP) controller sold includes a full 12-Month Functional Warranty. If the hardware fails under normal operating parameters within 365 days, we provide an immediate unit replacement or full credit.
Q: Why buy pre-tested surplus stock instead of ordering directly from Schneider Electric?
A: Direct OEM lead times for primary Foxboro DCS control processors can stretch into months, and OEM pricing for core hardware is high. Pre-tested surplus stock allows you to restore or expand critical plant control nodes immediately at a fraction of the cost.
