Description
Product Introduction & Engineering Value
When a primary AC feed is lost or needs to be taken offline for maintenance, a reliable changeover device is required to transfer the load to a secondary source without extended interruption. The Foxboro P0912XX is an alternating-current power supply changeover switch used in I/A Series and related system power distribution schemes.
It provides a means to select or automatically transfer between available AC sources feeding power supplies or system cabinets. The unit is intended for installation in control-room or field-equipment power distribution arrangements that support Foxboro equipment. Documentation for this specific part number is limited in current public resources, so confirmation against the original system drawings or bill of materials is recommended before replacement.
Technical Specifications
Function: AC power supply changeover / transfer switch
Application: Power source selection or automatic transfer in Foxboro I/A Series related installations
Form Factor: Compact module suitable for system power distribution panels
Typical Use: Primary/secondary AC feed switching for power supplies or cabinet power
Note: Detailed electrical ratings (voltage, continuous current, transfer time) should be verified against the specific system documentation or the physical unit labeling, as public datasheets for this exact part number are limited.
Field Application & The “Trench” Experience
A Midwest process plant still operating older I/A Series nodes needed to replace a failed changeover switch that selected between two independent 120 V AC feeds supplying the local power supplies. The original P0912XX was identified from the cabinet bill of materials. After installation and verification of the transfer function under controlled conditions, the system regained the ability to switch cleanly between the two sources during planned maintenance without dropping the 24 V rails.
Typical niche applications:
- Manual or automatic changeover between primary and secondary AC feeds in Foxboro system cabinets
- Power source selection for redundant power-supply arrangements in legacy I/A Series installations
- Maintenance of older power distribution schemes where the original changeover device has failed

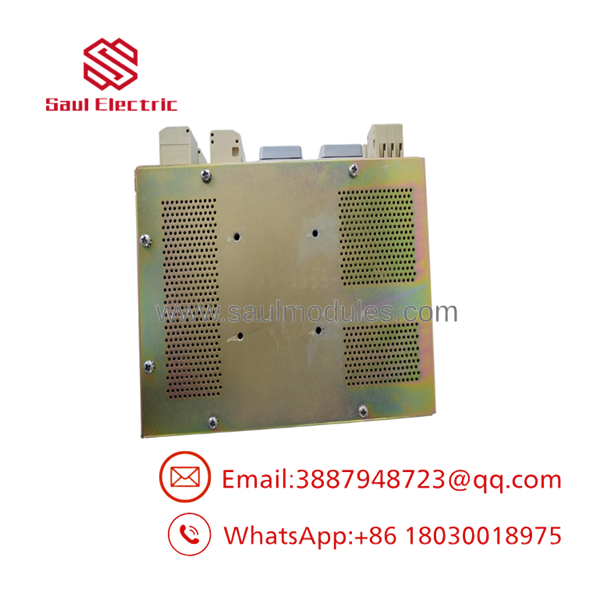

P0912XX

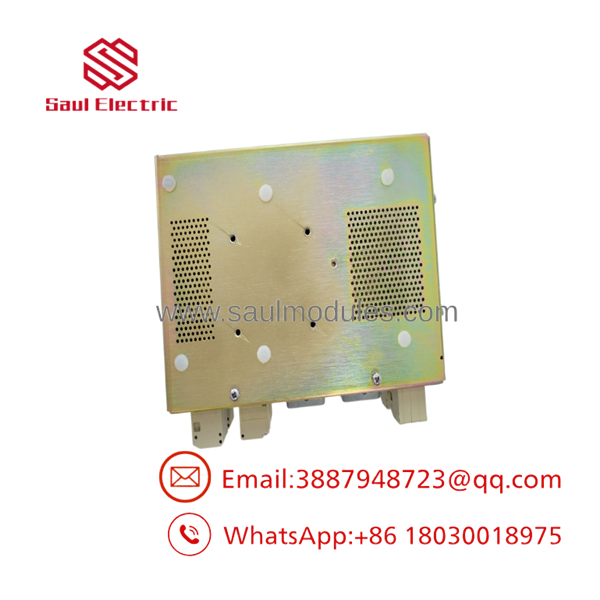

P0912XX
Transparency SOP: QA & Testing
Each unit is visually inspected for housing integrity, connectors, and original labeling. Basic continuity and switching function are verified where possible. Input and output paths are checked for obvious shorts or opens. Because detailed factory test procedures for this specific part number are not widely published, testing focuses on functional transfer behavior and physical condition. Units that pass visual and basic electrical checks are released with the standard warranty.
The Veteran’s Tech Trap Guide
⚠️ Confirm the exact function in your system drawings. “Changeover switch” can mean different things (manual selector, automatic transfer, make-before-break, etc.). Verify the original P0912XX role before assuming a direct replacement will behave identically.
PRO TIP: Label both the primary and secondary sources clearly and document the transfer procedure. Incorrect source selection during maintenance is a common cause of unexpected power loss.
⚠️ Check voltage and current ratings on the physical unit. Public documentation is sparse. Always cross-check the nameplate or original system documentation for the actual voltage and continuous current ratings before applying power.
Dynamic FAQ
Q: What is the primary function of the P0912XX? A: It is an alternating-current power supply changeover switch used to select or transfer between AC sources in Foxboro system power distribution schemes.
Q: Is detailed electrical data (voltage, current, transfer time) readily available? A: Public datasheets for this specific part number are limited. Ratings should be confirmed from the physical unit labeling or the original system documentation.
Q: Can the P0912XX be used as a general-purpose transfer switch? A: It is intended for Foxboro I/A Series related installations. Compatibility with non-Foxboro equipment should be verified before use.
Q: Are New Surplus P0912XX units original Foxboro product? A: Yes. Units are original OEM material that have passed visual and basic functional inspection.
Q: What warranty is provided? A: 12-month warranty against defects in materials and workmanship from the date of shipment for both New Surplus and fully tested refurbished units.
Q: Should I verify compatibility before ordering? A: Yes. Because documentation is limited, cross-checking the part number against the original bill of materials or system drawings is strongly recommended.
