Product Introduction & Engineering Value

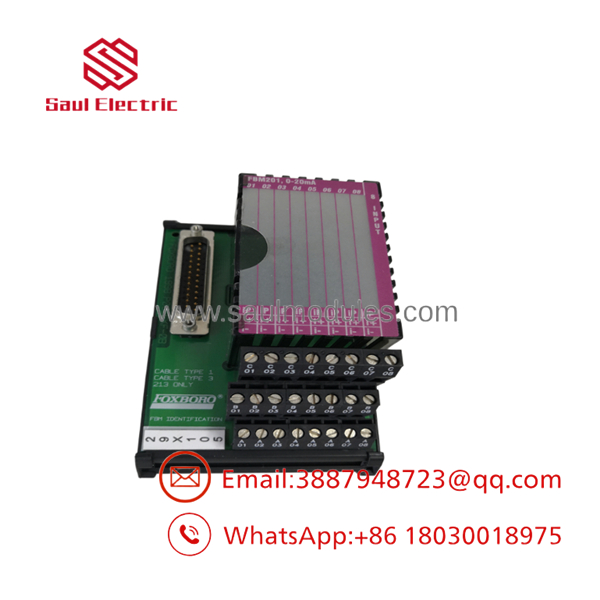

I’ve replaced more of these than I can count when field wiring needs to stay intact while an FBM201 is swapped. The P0916AA is the compression-type Termination Assembly designed specifically for the Foxboro FBM201 eight-channel 0-20 mA analog input module.
It provides a secure, vibration-resistant landing point for field transmitter wiring and connects to the FBM via the standard termination cable. Because it is a passive device, it introduces no active signal conditioning of its own—its job is clean, reliable termination and easy module replacement without disturbing the field side. The assembly is typically PVC construction and supports the cable types used in standard 200 Series installations.
Technical Specifications
Compatible Module: FBM201 (8-channel 0-20 mA Analog Input)
Terminal Type: Compression
Electrical Function: Passive field signal termination and routing
Construction: Typically PVC
Cable Compatibility: Supports standard termination cables (polyurethane or Hypalon XLP types commonly used)
Maximum Cable Length (typical): 30 m (98 ft)
Mounting: DIN rail or cabinet/panel mounting with the associated baseplate system
Certifications: UL/cUL, CENELEC (as applicable to the family)
Note: Not compatible with FBM201b/c/d or other FBM types without verification
Field Application & The “Trench” Experience
A Midwest refining unit needed to replace an aging FBM201 without lifting the field wiring on eight 4-20 mA transmitters. The existing P0916AA Termination Assembly was left in place. The old module was unplugged, the new FBM201 installed, and the termination cable reconnected. All eight points came back online with no re-landing of field wires and no change in signal integrity. The compression terminals had remained tight despite years of vibration.
Typical niche applications:
- Field termination for FBM201 0-20 mA analog input channels in process cabinets
- Maintenance-friendly wiring interface that allows FBM replacement without disturbing field cables
- Legacy I/A Series installations still using the original and matching compression TA
Transparency SOP: QA & Testing
- Visual inspection of housing, terminal blocks, connectors, and original P0916AA labeling
- Continuity check of all terminal-to-connector paths
- Verification of mechanical fit with a known-good and termination cable
- Inspection for cracked housings, damaged terminals, or corrosion
- Basic isolation check between channels and to ground where applicable

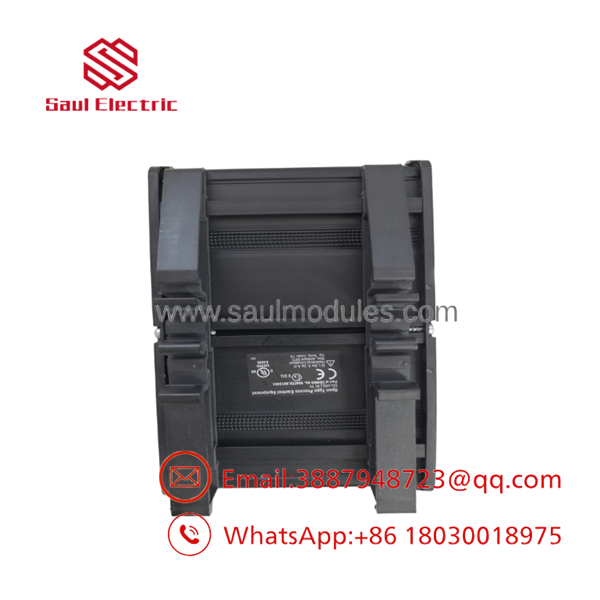

P0916AA
P0916AA
The Veteran’s Tech Trap Guide
⚠️ This TA is matched to the only. Do not assume it will work with FBM201b, FBM201c, FBM201d, or other analog input modules. Using the wrong TA can produce incorrect wiring, loss of isolation, or physical interference.
PRO TIP: When replacing an , leave the P0916AA and field wiring undisturbed whenever possible. The whole point of the termination assembly is to allow module swap without lifting a single field wire.
⚠️ Check terminal tightness on older units. Compression terminals can loosen over years of thermal cycling and vibration. A quick torque check during maintenance prevents intermittent high-resistance connections that look like transmitter problems.
Dynamic FAQ
Q: What module is the P0916AA designed for? A: It is the compression-style Termination Assembly specifically matched to the Foxboro 0-20 mA analog input module.
Q: Is the P0916AA an active or passive device? A: It is a passive termination assembly. It provides wiring termination and connection only—no active signal conditioning.
Q: Can I use the with later variants (b/c/d)? A: No. It is not compatible with FBM201b, FBM201c, or FBM201d without specific verification. Use the Termination Assembly specified for those modules.
Q: What type of terminals does it use? A: Compression-style terminals.
Q: Are New Surplus units original Foxboro product? A: Yes. Units are original OEM material that have passed visual, continuity, and mechanical fit testing.
Q: What warranty is provided? A: 12-month warranty against defects in materials and workmanship from the date of shipment for both New Surplus and fully tested refurbished units.
