Product Introduction & Engineering Value
The P0916AE is the compression-type Termination Assembly designed specifically for the Foxboro FBM203 eight-channel RTD input module. It provides the field wiring interface for platinum and nickel RTDs, supporting the resistance range used by the FBM203 (0 to 320 ohms typical).
As a passive assembly, it offers clean, low-resistance termination points and allows the FBM203 to be replaced without lifting field wiring. The compression terminals deliver secure connections that resist vibration and thermal cycling. The TA mounts with the standard 200 Series baseplate system and connects to the module via the termination cable.
Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Module | FBM203 (8-channel RTD Input) |
| Terminal Type | Compression |
| Supported Sensors | Platinum and nickel RTDs |
| Typical Resistance Range | 0 to 320 ohms (as used by FBM203) |
| Electrical Function | Passive field signal termination and routing |
| Wiring Style | Supports 2-wire and 3-wire RTD connections (per FBM203 capability) |
| Cable Length (typical max) | 30 m (98 ft) |
| Mounting | DIN rail / cabinet with associated baseplate system |
| Construction | Industrial-grade (typically PVC family) |
Field Application & The “Trench” Experience
A Midwest specialty chemical plant needed to replace an aging that monitored eight critical RTDs on a reactor jacket and feed lines. The existing P0916AE Termination Assembly was left undisturbed. The old module was removed, a tested installed, and the termination cable reconnected. All eight temperature points returned with no re-termination of field leads and no shift in readings after a quick verification against a decade box.
Typical niche applications:
- Field termination for RTD input channels in process temperature monitoring
- Maintenance-friendly interface that permits module swap without disturbing RTD wiring
- Legacy or active I/A Series installations using the original and matching compression TA

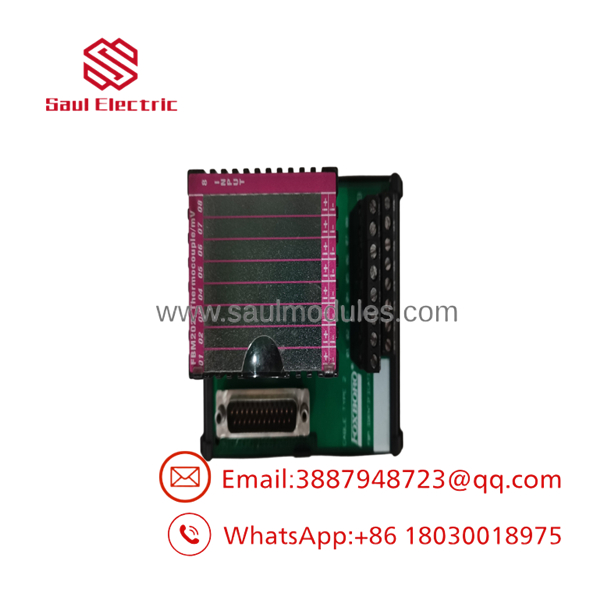

P0916AE

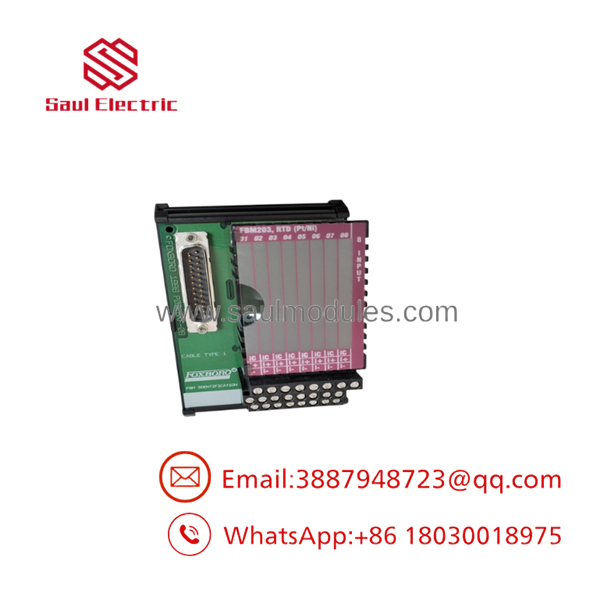

P0916AE

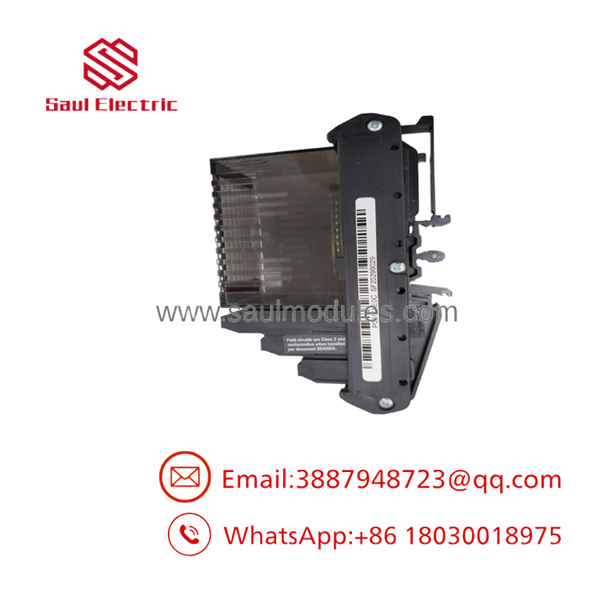

P0916AE
Transparency SOP: QA & Testing
Each unit is visually inspected for housing integrity, terminal condition, and original P0916AE labeling. Continuity is verified on all terminal-to-connector paths. Mechanical fit is confirmed with a known-good and termination cable. Terminals are checked for damage, corrosion, or excessive wear. Units that pass these checks are released for shipment.
The Veteran’s Tech Trap Guide
⚠️ This TA is matched to the only. Do not use it with other RTD or analog input modules (such as FBM213 or thermocouple modules) unless the system documentation explicitly allows it. Incorrect pairing can produce wiring errors or loss of proper lead compensation.
PRO TIP: When working with 3-wire RTDs, confirm that the lead wires are landed on the correct terminals. A swapped compensation lead will introduce a temperature offset that is easy to miss during quick checks.
⚠️ Keep field wiring strain-relieved. RTD leads are often fine-gauge. Poor strain relief at the TA can cause intermittent open or high-resistance connections that appear as drifting temperature readings.
Dynamic FAQ
Q: What module is the P0916AE designed for? A: It is the compression-style Termination Assembly specifically matched to the Foxboro 8-channel RTD input module.
Q: Is the P0916AE an active or passive device? A: It is a passive termination assembly. It provides wiring termination and connection only.
Q: What types of RTDs does it support? A: It supports the platinum and nickel RTDs used with the (typical resistance range 0–320 ohms).
Q: Can the be replaced without lifting field wires? A: Yes. That is one of the primary advantages of the Termination Assembly design.
Q: Are New Surplus P0916AE units original Foxboro product? A: Yes. Units are original OEM material that have passed visual, continuity, and mechanical fit testing.
Q: What warranty is provided? A: 12-month warranty against defects in materials and workmanship from the date of shipment for both New Surplus and fully tested refurbished units.
