Foxboro P0916JTOE 8-Channel Analog Input

Description

Product Introduction & Engineering Value

The documented Foxboro P0916JT is a termination assembly associated with the FBM211 analog-input module. It is used where loop power is supplied to field devices by a customer-provided external DC power supply. This is field termination hardware, not the FBM211 electronics itself.

That distinction is important during a maintenance replacement. A failed termination assembly and a failed FBM211 can produce similar symptoms at the control-room level, but they require completely different spare parts. Verify the physical assembly and wiring configuration before placing the order.

Technical Specifications

Foxboro’s FBM211 functional specification lists P0916JT for the externally powered configuration and P0916PQ as the corresponding ring-lug alternative. The same documentation identifies compression terminals as the C termination type.

The later Foxboro documentation identifies RH916JT as superseding P0916JT for the applicable termination configuration.

What the “OE” suffix means

This is where procurement needs to slow down.

I found credible documentation for P0916JT, but not authoritative documentation establishing P0916JTOE as a separate Foxboro engineering part number. Some third-party listings simply identify P0916JT as an termination assembly, while other sellers attach additional suffixes without providing a Foxboro drawing.

For a critical spare, do not infer electrical or certification differences from “OE” alone.

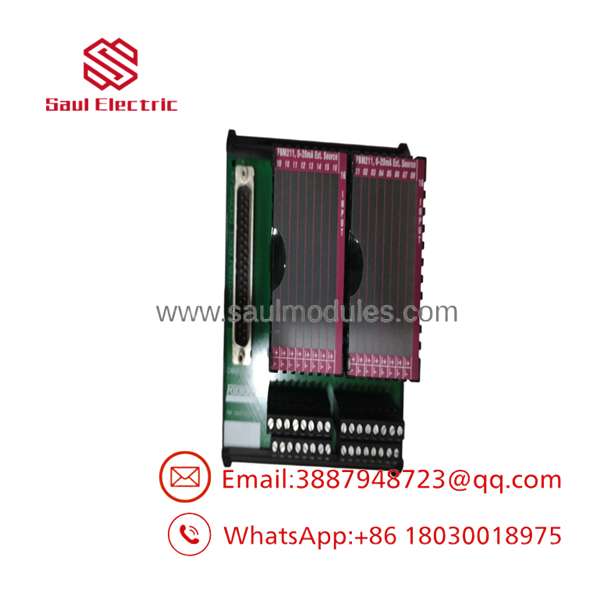

P0916JTOE

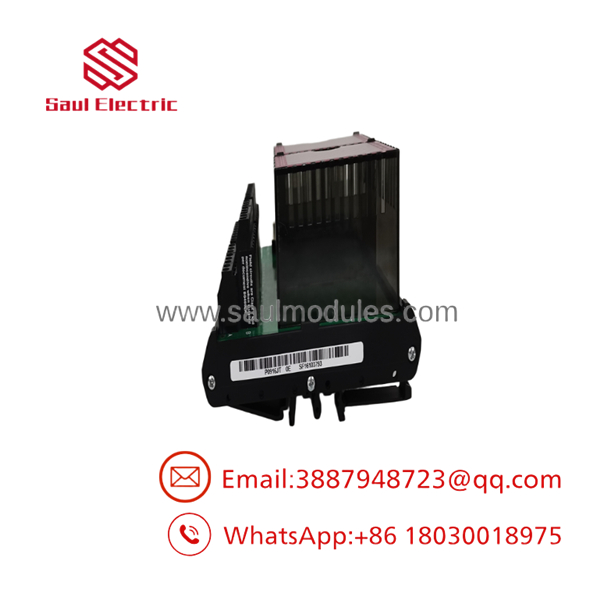

P0916JTOE

Field Application & the “Trench” Experience

Picture an older I/A Series cabinet collecting 4–20 mA signals from pressure, level, and flow transmitters. An channel begins intermittently reading low. The transmitter checks correctly. The field cable checks correctly. The problem follows movement of the termination wiring.

At that point, replacing the electronics may be unnecessary. The termination assembly becomes the logical inspection target. If the installed hardware is marked and the system uses externally powered field devices, the termination configuration matches the documented application.

Practical application scenarios

• 4–20 mA pressure-transmitter input loops on legacy process skids.
• Level-transmitter monitoring where external DC supplies power the field instruments.
• Flow and differential-pressure measurement connected to analog-input channels.
• I/A Series cabinet maintenance where the existing termination assembly is being replaced without changing the FBM architecture.

Transparency SOP: QA & Testing

For new-surplus or refurbished P0916JTOE/ inventory, use a stricter identification procedure:

1. Read the physical marking. Photograph the complete part number, including every suffix.
2. Compare the terminal arrangement. Confirm that the hardware physically corresponds to the termination configuration.
3. Verify the power architecture. is documented for installations where field-device loop power comes from an external DC supply.
4. Inspect the compression terminals. Look for damaged clamps, corrosion, contamination, or evidence of overheating.
5. Check the cable interface. Confirm that the associated termination cable and connector arrangement match the installed system.
6. Record the revision. For obsolete hardware, revision-level documentation can matter as much as the base part number.

For refurbished stock, continuity and terminal-interface testing should be documented before shipment.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Treating P0916JTOE as automatically equivalent to

The manufacturer’s documentation I found identifies , not P0916JTOE. If the suffix is printed on the actual hardware, obtain the corresponding drawing or manufacturer documentation before substituting another assembly.

⚠️ Trap #2 — Confusing with the

is the termination assembly. is the associated I/O module. A termination assembly does not replace the electronics.

PRO TIP: If a supplier quotes “ ” as though it were one module, ask for a photograph of the exact item being supplied. This catches a surprising number of legacy-DCS ordering errors.

⚠️ Trap #3 — Missing the external-power requirement

Foxboro’s documentation distinguishes /P0916PQ from the P0916BT/P0916BU arrangement. The former is associated with customer-supplied external DC power, while the latter is associated with the FBM auxiliary +24 V DC supply.

That distinction should be checked before replacing the assembly.

Dynamic FAQ

Is P0916JTOE an official Foxboro part number?

The exact designation could not be independently confirmed in the manufacturer documentation I located. is documented by Foxboro as an termination assembly. Treat the “OE” suffix as requiring verification rather than assuming it represents a different electrical specification.

What module is associated with?

It is associated with the analog-input module. The documented configuration uses externally supplied DC loop power for the field devices.

Is the itself?

No. It is the termination assembly used with the . The is the I/O electronics module.

What termination style does use?

The Foxboro documentation identifies C = compression terminals for the configuration. P0916PQ is listed as the ring-lug counterpart.

Is there a newer replacement?

Yes. The later Foxboro documentation identifies RH916JT as the successor to for the applicable configuration. Before substituting it, verify the installed , termination cable, cabinet arrangement, and certification requirements.

What should be verified for New Surplus stock?

Confirm the complete part number and suffix, physical terminal configuration, compatibility, external-power arrangement, packaging/traceability, and warranty. For a specifically, I would require a clear photograph of the nameplate and the applicable Foxboro documentation before approving it as a direct replacement.
