Description
Product Introduction & Engineering Value
P0916PW is not a standalone intelligent I/O processor. It is the termination assembly associated with the Foxboro FBM217. That distinction matters during procurement. The FBM217 performs the discrete-input processing and Fieldbus communication, while P0916PW provides the field-side termination and contact-wetting arrangement.
For maintenance teams supporting an existing I/A Series installation, P0916PW can be important when the original termination hardware is damaged or unavailable. The documented configuration provides 32 contact inputs, with the P0916PW/PX termination assemblies providing a single fused 24 VDC source for field contact wetting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Termination Assembly | P0916PW |
| Associated FBM | FBM217 |
| I/O Type | Discrete Input |
| Number of Channels | 32 |
| Input Type | Contact input |
| Nominal Field Circuit | 24 VDC |
| FBM Input On-State | 15–30 VDC |
| FBM Input Off-State | 0–5 VDC |
| Typical Input Current | 2.2 mA at 30 VDC |
| Source Resistance — ON | 1 kΩ maximum at 15 VDC |
| Source Resistance — OFF | 100 kΩ minimum at 30 VDC |
| Filter/Debounce | No filtering, 4, 8, 16, or 32 ms |
| Maximum Pulse Count Rate | 250 Hz |
| TA Field-Circuit Supply | 24 VDC +15% / −10% open-circuit voltage |
| Short-Circuit Current | 75 mA |
| Isolation Arrangement | Group-isolated from earth/ground |
| Maximum Dielectric Withstand | 600 VAC for 1 minute between group-isolated channels and earth/ground |
The 32-channel input, voltage thresholds, source-resistance limits, filtering options, and 250 Hz pulse-count capability are specified for the FBM217 module/TA combination. The P0916PW termination assembly itself is specifically identified as a group-isolation TA for FBM217.
Important procurement distinction: do not automatically treat as an FBM217 replacement. is the termination assembly; the is the associated discrete-input interface module. Emerson documentation lists the combination as .
Field Application & the “Trench” Experience
A typical maintenance situation looks like this: an older I/A Series cabinet remains in service, and one group of 24 VDC contact inputs begins producing intermittent field alarms. The itself passes diagnostics, but inspection finds a problem in the termination assembly. Replacing the alone does nothing. The field interface is still the weak point.
That is where identifying the complete / combination becomes important. The provides the termination and contact-wetting arrangement used by the 32-channel discrete-input configuration. Emerson’s documentation confirms that the is one of the group-isolated TAs used with .
Niche application scenarios
- Compressor auxiliary-status monitoring: motor permissives, lube-oil pressure switches, local/remote selectors, and trip contacts.
- Boiler burner management status collection: contact-based flame-system permissives and auxiliary equipment status.
- Process-unit interlock monitoring: valve limit switches, pump running feedback, motor starter status, and equipment permissive contacts.
The can also be used in redundant configurations, with two modules sharing the appropriate termination arrangement through the FBM baseplate architecture.

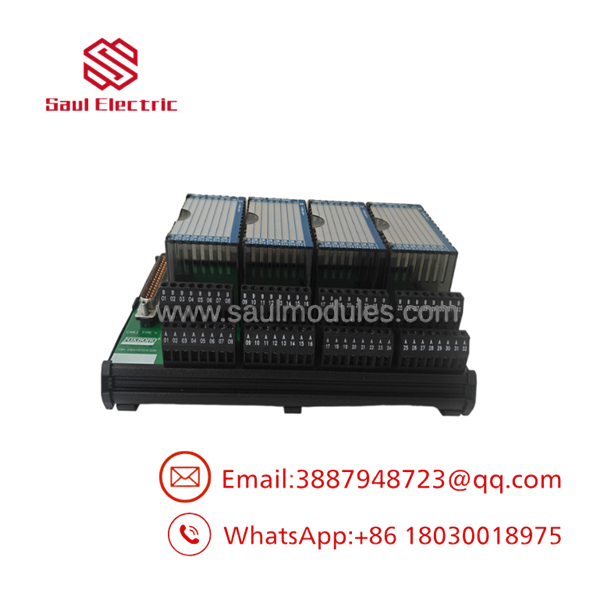

P0916PW

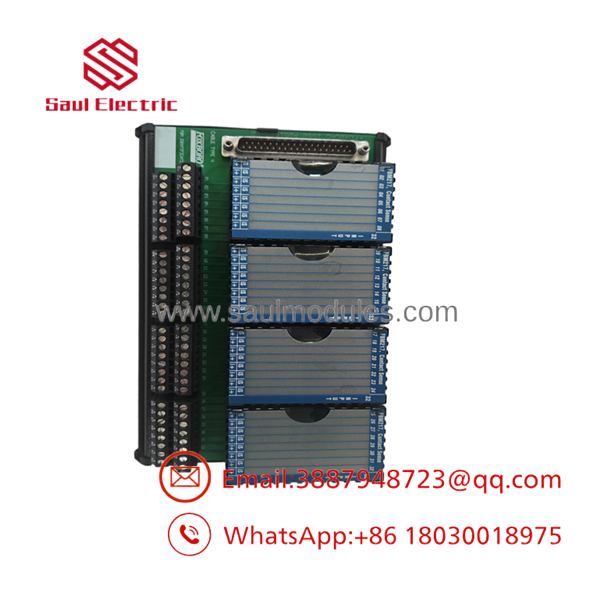

P0916PW
Transparency SOP: QA & Testing
For New Surplus or Refurbished inventory, a meaningful QA process should focus on the actual termination circuitry rather than simply powering up the assembly.
- Visual inspection — Check terminal blocks, connector interfaces, PCB condition, labels, contamination, corrosion, and evidence of overheating.
- Part-number verification — Confirm the assembly is marked and is intended for the configuration.
- Continuity testing — Verify field-side circuits and connector paths against the applicable termination documentation.
- 24 VDC circuit verification — Check the contact-wetting supply path and associated protection circuitry.
- Channel simulation — Where the appropriate test fixture is available, simulate discrete contact transitions across representative channels.
- Isolation verification — Confirm the group-isolation arrangement before releasing the assembly for installation.
- Final inspection — Record serial/identification information and document test results.
The manufacturer’s documentation states that calibration of the module and termination assembly is not required.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Ordering the wrong hardware
and are related, but they are not interchangeable part numbers. is the termination assembly associated with . If the failed component is actually the FBM, ordering only will not restore the control-system I/O point.
PRO TIP: Photograph the existing FBM and TA separately before ordering. Verify both labels.
⚠️ Trap #2 — Assuming every TA has identical field behavior
The supports multiple termination assemblies for different voltage and isolation arrangements. belongs to the group-isolated 24 VDC contact-input configuration. Do not substitute another P0916-series TA merely because its connector appears compatible.
⚠️ Trap #3 — Ignoring the field-wetting circuit
/PX uses a single fused 24 VDC supply for all 32 channels. A fault in that circuit can affect multiple inputs simultaneously.
Dynamic FAQ
Is Foxboro an I/O module?
No. is a termination assembly (TA) associated with the Foxboro 32-channel discrete input interface. The is the actual I/O module responsible for processing the input signals and communicating over the module Fieldbus.
How many inputs does the / configuration support?
The / combination supports 32 discrete/contact input channels. Emerson’s FlexConnect documentation explicitly identifies / as a 32-DI configuration.
What field voltage is associated with ?
The contact-wetting circuit is based on a 24 VDC supply. The input specifications define an on-state range of 15–30 VDC and an off-state range of 0–5 VDC.
Does provide channel-by-channel isolation?
Not in the same manner as a channel-isolated TA. is identified as a group-isolated termination assembly, with the input channels isolated from earth/ground as a group.
Can replace another termination assembly?
Do not assume so. Different termination assemblies are designed for different input voltage and isolation arrangements. Confirm the existing TA part number and field wiring before substitution.
Can New Surplus be supplied with a warranty?
Yes, provided the supplier’s commercial terms specify it. For industrial spare-parts procurement, request the exact part number, condition declaration, identification photographs, test report, and written warranty before purchase. “New Surplus” should not be treated as equivalent to factory-fresh current production without supporting documentation.
