Description
Product Introduction & Engineering Value
P0924DB is a Foxboro I/A Series 200 termination assembly intended for use within the system’s field-I/O architecture. The TA is the physical connection point between field wiring and the associated Fieldbus Module, making the exact termination configuration important during a replacement.
For an installed legacy cabinet, do not select P0924DB simply because another Foxboro TA uses a similar connector or mounting arrangement. The associated FBM, field-signal characteristics, terminal assignment, and site drawings should all be checked before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | P0924DB |
| Manufacturer | Foxboro / Invensys |
| System Family | I/A Series 200 |
| Hardware Type | Termination Assembly |
| System Function | Field I/O termination |
| Primary Interface | Field wiring ↔ FBM |
| Installation | I/A Series 200 I/O architecture |
| Application | Industrial process-control field I/O |
| Replacement Requirement | Exact configuration verification |
| Procurement Status | Typically handled as a legacy/maintenance spare |
Configuration warning
The P0924DB suffix should be verified from the physical nameplate and applicable Foxboro documentation before procurement. A termination assembly’s electrical characteristics cannot safely be inferred from the P0924 prefix alone.
When replacing an installed unit, verify:
TA part number → associated FBM → field voltage/signal → terminal assignment → isolation arrangement.
That sequence prevents most avoidable substitution errors.
Field Application & the “Trench” Experience
A maintenance technician opens an I/A Series cabinet during a scheduled shutdown and finds a damaged termination assembly. The associated FBM has already been tested and is functioning normally. The obvious solution appears to be swapping the TA and returning the cabinet to service.
The dangerous part comes next.
If the replacement TA is from a different electrical configuration, the connector can physically fit while the field interface remains incorrect. With legacy control systems, mechanical compatibility is only one part of the equation.
Practical application scenarios
- Discrete equipment-status collection: motor starters, auxiliary contacts, and package equipment.
- Valve feedback circuits: open/closed limit switches from motor-operated valves.
- Process permissive monitoring: equipment-ready and interlock contacts used by sequence logic.

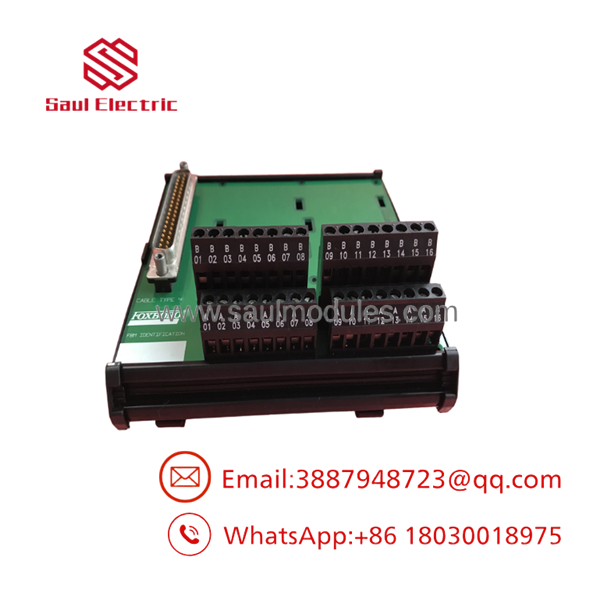

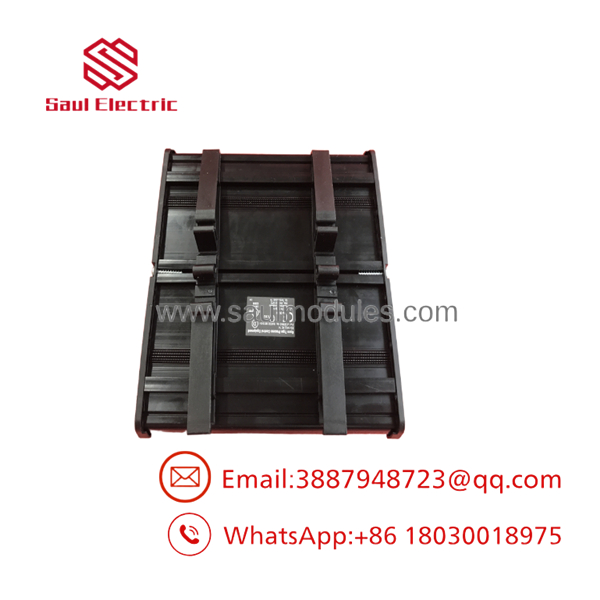

P0924DB
P0924DB
Transparency SOP: QA & Testing
For New Surplus or Refurbished P0924DB inventory, a sensible receiving procedure is:
- Identity check — Verify P0924DB on the actual assembly label.
- Visual examination — Inspect connectors, terminals, PCB surfaces, mounting hardware, and signs of heat or corrosion.
- Mechanical check — Verify connector condition and mounting points.
- Electrical inspection — Check accessible continuity and termination paths against the correct technical documentation.
- System test — Where the appropriate Foxboro FBM test equipment is available, perform a controlled I/O simulation.
- Documentation — Record the part number, condition, test status, and warranty information.
A “tested” label without a description of what was actually tested provides limited information to a plant maintenance engineer.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Assuming all P0924-series hardware is interchangeable
Do not use the series prefix as a compatibility test. The complete part number matters.
PRO TIP: Request a photograph showing the entire identification label before purchasing used or surplus stock.
⚠️ Trap #2 — Replacing the TA when the FBM is actually faulty
A termination assembly does not replace the associated Fieldbus Module. Separate the troubleshooting process into field wiring, TA, FBM, and Fieldbus communication.
⚠️ Trap #3 — Trusting an old spare-parts list
Legacy I/A Series installations are often modified over their service life. The original engineering configuration may differ from the current cabinet wiring.
Compare the old spare number with the actual installed hardware and current I/O documentation before releasing the spare.
Dynamic FAQ
What is Foxboro ?
is a Foxboro I/A Series 200 termination assembly used within the system’s field-I/O termination architecture.
Is a Fieldbus Module?
No. It is termination hardware. The associated FBM is a separate electronic module that performs the I/O processing and system communication functions.
What should I verify before ordering ?
At minimum, verify the complete TA part number, associated FBM model, field-signal type, field voltage, terminal configuration, and isolation requirements.
Can I use a visually similar Foxboro TA as a substitute?
Not without engineering verification. Similar mechanical construction does not prove electrical compatibility.
What should New Surplus documentation include?
For procurement purposes, request actual-part photographs, complete identification markings, condition status, test information, and written warranty terms. If the part is represented as unused, ask whether it has ever been installed or energized.
Does come with a warranty?
Warranty terms depend on the supplier and stock condition. For a critical I/A Series spare, obtain the warranty duration and return conditions in writing before purchase.
