Foxboro P0924JH I/A Series Termination Assembly Module

Description

Product Introduction

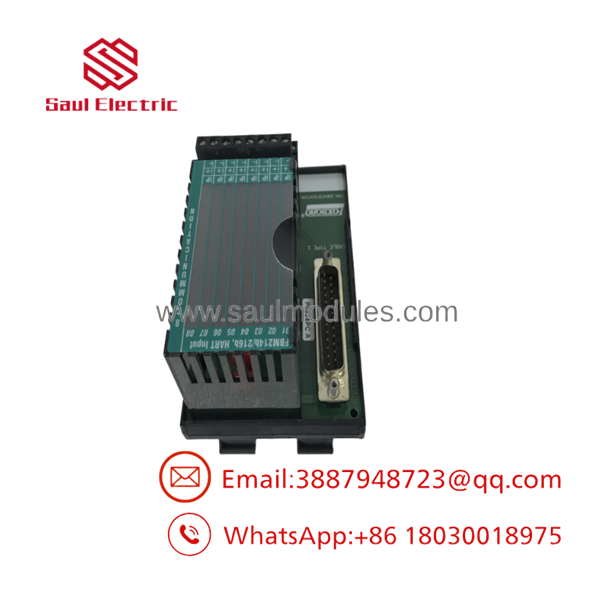

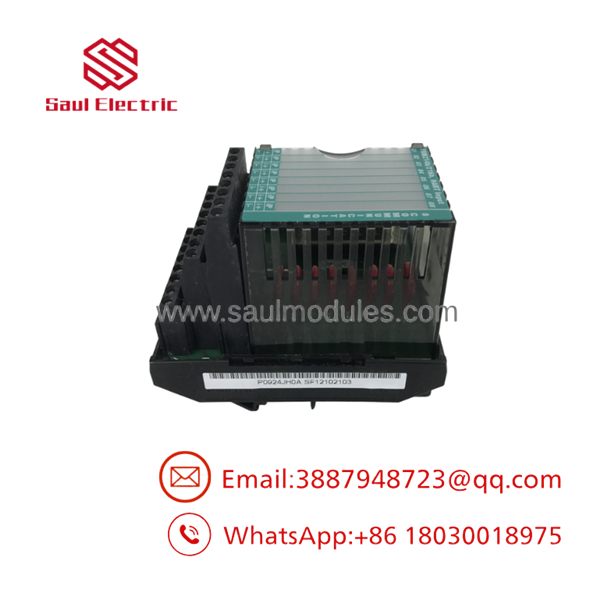

The Foxboro P0924JH (frequently cataloged under the conformal-coated designation P0924JH-OC) is a rugged Field Termination Assembly (FTA) engineered for the Foxboro I/A Series Distributed Control System (DCS). Positioned inside marshalling panels or field enclosure racks, this assembly serves as the direct physical interface connecting field instrument cables—such as transmitters, valves, and switches—to upstream baseplate I/O modules.

Built to streamline panel wiring and eliminate signal crosstalk, the P0924JH delivers high terminal isolation and robust connection points. Swapping out a worn, corroded, or shorted termination assembly restores clean signal conduction across your field loops, eliminating intermittent wiring faults and preventing costly false trips across plant operations.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It is 3:00 AM on a humid night at a petrochemical plant. A batch reactor’s main feed valve feedback loop starts oscillating wildly on the operator’s display, throwing intermittent high-alarm spikes. You open the marshalling rack and trace the loop back to a legacy termination block green with chemical corrosion and oxidation. Moisture has created a high-resistance tracking path across adjacent terminals, cross-coupling 24V field power straight into a sensitive 4-20mA signal lead.

• Petrochemical & Refining – Marshalling Cabinet Interfacing – Connects hazardous-area field instruments to control room I/O cards via organized screw-terminal blocks.
• Power Generation Facilities – Turbine & Boiler Skid Wiring – Provides stable, vibration-resistant termination points for high-density sensor loops.
• Water & Wastewater Treatment – Outdoor Substation Skid Modules – Prevents moisture-induced ground loops on long-run field telemetry lines.
• Pulp & Paper Mills – Corrosive Wet-End Panel Integration – Protects multi-channel field connections from harsh ambient chemical vapors.

Field Case Study: Emergency Block Replacement Prevents Batch Loss

A continuous chemical processing facility in Texas experienced recurring signal noise on a cluster of temperature transmitters wired through an older P0924JH unit. Severe humidity in the field enclosure caused terminal tracking, threatening an imminent automatic safety trip on a $60,000 continuous chemical batch.

We shipped a fully tested -OC unit via priority overnight air. The site technician isolated the loop blocks, landed the field wiring onto the new termination assembly, plugged in the ribbon interface to the baseplate, and restored clean 4-20mA readings. The entire swap took under 45 minutes, keeping the reactor online and saving the product batch.

P0924JH

P0924JH

Transparency SOP: Quality Assurance & Testing

We do not just wipe down old terminal blocks and put them in shipping boxes. Every single Foxboro termination assembly undergoes a strict inspection and physical verification protocol before receiving a pass tag:

1. Inbound Visual & Mechanical Inspection: Check terminal screw threads, card edge connectors, pin alignment, and inspect the PCB substrate for micro-cracks or heat discoloration.
2. Terminal Continuity & Isolation Testing: Perform point-to-point resistance checks across all terminal positions and run high-pot insulation tests between adjacent channels to verify zero signal leakage.
3. Live System Loop Handshake: Connect the to an active Foxboro I/A test bed to verify full signal pass-through to simulated I/O modules.
4. Environmental Integrity Verification: Inspect conformal coating (“-OC” variants) under UV inspection light to ensure 100% moisture-barrier coverage.
5. ESD Protection & Packaging: Seal the board in heavy-duty anti-static shielding bags and pack with high-density custom foam for secure transit.

“We don’t just ship boxes; we test them on actual Foxboro racks.”

The Veteran’s Tech Trap Guide

• ⚠️ Label Field Wires BEFORE Unhooking Anything: It sounds basic, but when you are dealing with a 16-channel or 32-channel terminal assembly at 2 AM, wire labels fall off or smudge. Take a high-resolution photo of the landed wires on the old before loosening a single screw terminal. Trust me.
• ❗ Check for Over-Torqued Screw Terminals: When landing field leads onto the , use the correct precision terminal screwdriver and do not over-torque. Stripping a screw thread on a multi-point termination block turns a 15-minute job into a drill-and-tap nightmare.
• ⚠️ Confirm Conformal Coating for Harsh Rooms: If your marshalling cabinet sits near a cooling tower, paper mill digester, or sulfur processing area, always install the -OC variant. Uncoated boards in damp, sulfurous air will develop copper carbonate corrosion across terminal traces within months.
• ❗ Inspect Interconnecting Cables: When replacing the termination assembly, inspect the ribbon or round multi-conductor cable connecting the to the baseplate. Bent header pins or frayed cable shielding will cause intermittent faults that look identical to a bad termination board.

Frequently Asked Questions (FAQ)

Q: What is the primary function of the Foxboro module?

The is a Field Termination Assembly (FTA) that acts as the physical connection bridge between field instrument wiring (sensors, valves, transmitters) and Foxboro I/A Series baseplate I/O modules.

Q: What does the “-OC” suffix stand for on the -OC?

The “-OC” suffix indicates “Option Coated” (conformal coating). This protective chemical layer seals the printed circuit board traces against moisture, airborne sulfur, industrial gases, and dust.

Q: Can I use a -OC in place of a standard ?

Ye is 100% form, fit, and function identical to the standard . The conformal coating provides extra protection without changing electrical ratings or terminal layouts.

Q: Is the hot-swappable?

While the board itself is passive or semi-passive hardware, pulling or disconnecting field wiring on a live system will interrupt signals to connected I/O channels. Always bypass active control loops or switch them to Manual before removing field wiring from the terminal assembly.

Q: What warranty coverage do you offer on surplus Foxboro hardware?

All our new surplus and reconditioned Foxboro units come backed by a full 12-month operational warranty. If an assembly experiences a hardware failure under normal operating conditions within a year, we replace it immediately or issue a full refund.

Q: Does the termination assembly require software or firmware setup?

No. The is a passive/hardware-level field wiring interface assembly. It requires no software configuration, flash memory loading, or address DIP switch setup—simply wire your field loops, connect to the baseplate interface cable, and power up the loop.
