Foxboro RH916XZ 4-Port Fieldbus Interface Module

Description

Product Introduction

The Foxboro FBM230 RH916XZ is a 4-port serial fieldbus communication interface card designed for the Foxboro I/A Series and Foxboro Evo Distributed Control Systems (DCS). Operating within the Compact 200 Series architecture, it acts as an intelligent gateway, translating data between third-party serial field devices—such as power monitors, variable frequency drives (VFDs), weigh scales, and chromatographs—and Foxboro Field Control Processors (FCPs).

Unlike basic point-to-point I/O modules, the RH916XZ offloads protocol handling directly onto its onboard microprocessor. Each of its four ports is independently configurable for RS-232, RS-422, or RS-485 physical layer communication. Whether running standard Modbus RTU or custom serial drivers, this module allows engineers to aggregate serial field data straight into control logic blocks without overloading the main controller’s processing cycle.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A 3 AM call out to a gas processing unit usually means one thing: communication loss on the custody transfer skid. A failed serial interface card leaves the main DCS blind to flow computer data, freezing billing metrics and forcing technicians to manually monitor line pressures in the dark. In protocol gateway applications, reliability and clean isolation are what stand between normal operation and a plant shutdown.

• Refineries & Petrochemical – Multi-Drop VFD Speed Control – Aggregating up to 32 motor drives over an RS-485 Modbus daisy chain into a single FCP control loop.
• Power Generation Facilities – Switchgear & Transformer Monitoring – Polling digital protective relays and power meters over isolated RS-485 ports to track electrical health.
• Offshore Platforms – Gas Chromatograph Data Acquisition – Ingesting heavy hydrocarbon composition stream data via RS-232 into gas processing control logic.
• Pharmaceutical Batching – Industrial Load Cell / Scale Interface – Continuous ASCII streaming from high-precision field balances directly into recipe control blocks.

Field Case Study: Critical Recovery at a Midstream Gas Terminal

During a severe lightning storm, an electrical surge blew out two unprotected RS-485 communication channels on an old FBM230 module at a natural gas fractionator. The loss of data killed communication between the Foxboro Evo system and the site’s primary ESD flow computers. Sourcing a pre-tested RH916XZ module from surplus stock allowed the crew to execute a hot-swap within hours. Because the replacement module seamlessly accepted the existing software driver configuration download from the FCP, communication with all four ports re-established immediately—saving an estimated $220,000 in flared product and lost pipeline allocation.

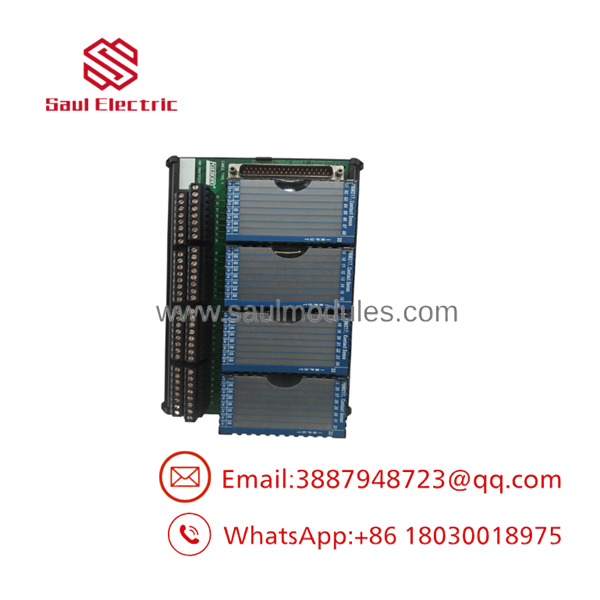

RH916XZ

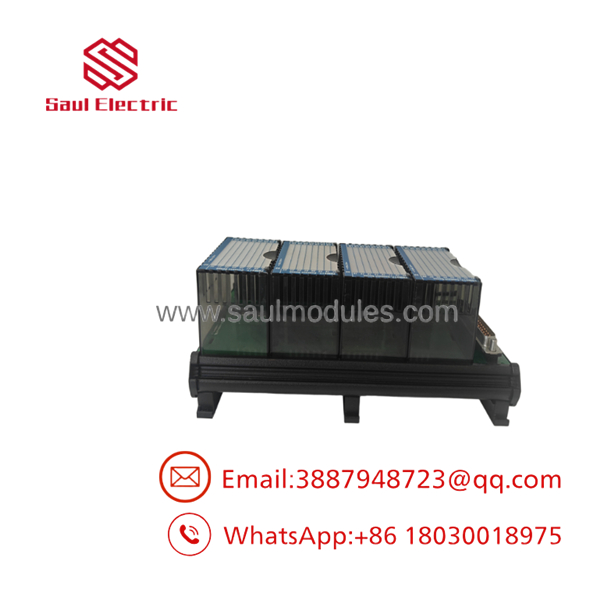

RH916XZ

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual Foxboro 200 Series baseplates under full serial traffic loads.

1. Inbound Visual & Pin Integrity Audit: Detailed check of module plastic casing, faceplate silkscreen, backplane pin straightness, and original factory serial labels.
2. Baseplate Power & Handshake POST: Insertion into an active Foxboro Compact 200 baseplate powered by a dual FE20 24 VDC rack power module.
3. Multi-Port Communication Loopback: Simultaneous loopback traffic testing across all 4 ports at 38.4 kbps under RS-232, RS-422, and RS-485 physical layer configurations.
4. Modbus RTU Stress Test: Polling real serial slave devices continuously over a 4-hour soak period to verify zero packet drop or framing error generation.
5. Firmware & Driver Verification: Reading internal firmware revisions via Foxboro I/A Series System Definition Software to confirm compatibility with current patch levels.
6. ESD Electrostatic Packaging: Sealing the verified unit in heavy-gauge static shielding bags with fresh moisture absorbent.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Port Jumper & Terminal Assembly (TA) Matching: The RH916XZ relies heavily on the connected Terminal Assembly to determine physical wiring (RS-232 vs RS-485). Double check that your TA selection matches the hardware protocol set in your software driver block.
• ❗ RS-485 Termination Resistors Are Mandatory: On long multi-drop loops, missing 120-ohm bus termination resistors cause signal reflections that destroy packet integrity. If your comms drop intermittently when motor drives spin up, check your end-of-line resistors first.
• ⚠️ Watch Out for Ground Loops: While the ports on the RH916XZ are galvanically isolated, connecting unshielded serial cables across long field distances between different ground potentials will eventually fry the line drivers. Always tie cable shields at one end only.
• ❗ Verify Driver Revision Compatibility: When replacing older FBM207 or legacy serial cards with the FBM230 , make sure the underlying FCP control processor has the proper driver executable (e.g., Modbus driver .fdb files) installed. The card will fail to initialize if the FCP lacks the matching driver instance.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the FBM230 hot-swappable?

A: Yes. You can remove and replace this module from a live 200 Series baseplate without shutting down power to the rack or interrupting neighboring I/O cards.

Q: What is the exact difference between P0916XZ and ?

A: They are the same core module hardware. “P0916XZ” is the legacy Foxboro base part number, whereas “” designates the lead-free, RoHS-compliant manufacturing revision. They swap 1-to-1 in field installations.

Q: Can I run RS-232 on Port 1 and RS-485 on Port 2 simultaneously?

A: Yes. Each of the 4 ports is independently configurable for physical interface layer and baud rate through software settings and TA pinouts.

Q: Are these modules sold as new or refurbished?

A: We stock both Factory Sealed New Surplus and fully bench-tested Clean Refurbished units. Every module undergoes full 4-port serial traffic validation before entering inventory.

Q: What warranty coverage do you provide on this part?

A: All modules are covered by a full 12-month replacement warranty starting from the ship date.
