Foxboro RH926JF 4-Port Fieldbus RS-422/RS-485 Module

Description

Product Introduction

The Foxboro FBM231 RH926JF is a 4-port serial fieldbus interface card engineered for the Foxboro I/A Series and Foxboro Evo Distributed Control Systems (DCS). Operating within the Compact 200 Series subsystem, it acts as a high-speed communication gateway, linking third-party serial field devices directly into Foxboro Field Control Processors (FCPs) without overburdening the main controller’s CPU.

Unlike standard general-purpose serial cards, the RH926JF is optimized specifically for differential signal architectures (RS-422 and multi-drop RS-485). Each of its four channels is galvanically isolated to suppress common-mode electrical noise and high-voltage spikes typically encountered across long industrial cable runs. You can deploy it as a standalone communications module or pair it in a dual-redundant configuration to eliminate single-point serial link failures.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

When a serial gateway card drops offline, the DCS doesn’t just lose a single sensor reading—it loses an entire sub-network of drives, power monitors, or analytical skids. In large-scale continuous processing, missing data from an RS-485 bus forces operators to fly blind on auxiliary equipment, often tripping safety interlocks or causing premature process aborts.

• Refining & Petrochemical – Variable Frequency Drive (VFD) Network Management – Multi-dropping up to 32 motor drives over RS-485 to deliver real-time speed control and diagnostic feedback.
• Power & Utilities – Digital Protective Relay Polling – Ingesting electrical telemetry from substation relays via Modbus RTU into central DCS logging blocks.
• Tank Farm Automation – Radar Tank Gauge Integration – Polling multi-drop level transmitters across long tank field cable runs using isolated RS-422 loops.
• Chemical Batch Plants – Flow Computer Synchronization – Aggregating mass flow meter data directly into batch control recipes over dedicated serial links.

Field Case Study: Recovering a Gas Metering Skid in Louisiana

At a natural gas processing facility near Lake Charles, a lightning strike induced a severe ground surge along an unshielded field communications cable. The surge fried the serial ports on an older interface module, severing the link between the Foxboro Evo system and four multi-stream gas chromatographs. With billing data lost, the facility faced a mandatory throughput slowdown. A pre-inspected RH926JF replacement card was rushed from local surplus stock. Technicians executed a live hot-swap on the Compact 200 baseplate, loaded the existing Modbus driver parameters, and restored full serial communications across all four channels in under 30 minutes—preventing tens of thousands of dollars in line allocation penalties.

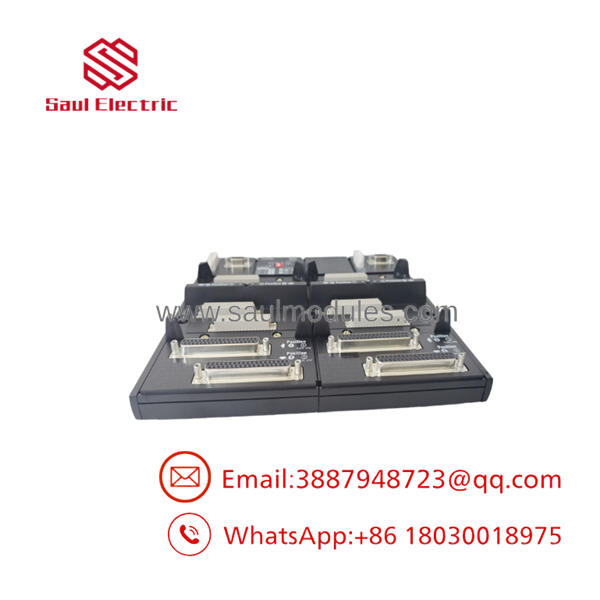

RH926JF

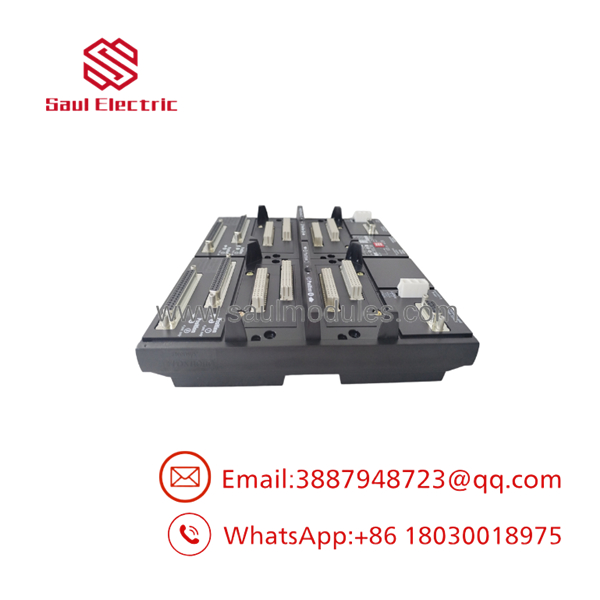

RH926JF

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual Foxboro 200 Series baseplates under live multi-drop serial traffic.

1. Inbound Mechanical & Connector Inspection: Thorough check of backplane pin alignment, housing latches, faceplate silk-screening, and OEM serial verification.
2. Baseplate Communication POST: Mounting the card on an active Foxboro Compact 200 baseplate to verify backplane power-up and processor register handshakes.
3. 4-Port RS-422 / RS-485 Loopback Traffic Test: Transmitting and receiving continuous data packets across all 4 ports at maximum baud rate (38.4 kbps) to verify driver chip health and zero frame errors.
4. Modbus Master Stress Test: Connecting the module to actual serial slave devices on a multi-drop bus over a 4-hour soak test to confirm packet integrity and timing.
5. Redundancy Failover Validation: Testing paired operation with an identical module through a redundant adapter to confirm instant failover without dropped packets.
6. ESD Shielding & Packaging: Enclosing the verified module in an anti-static shielding bag with fresh desiccant prior to foam-lined boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ Do Not Confuse FBM230 and FBM231 Hardware: The FBM230 (RH916XZ) supports RS-232, RS-422, and RS-485, whereas the FBM231 (RH926JF) is strictly dedicated to RS-422 and RS-485. If you try to wire an RS-232 serial device to the RH926JF, the voltage levels won’t match and communication will fail completely.
• ❗ Always Install 120-Ohm Termination Resistors: On multi-drop RS-485 networks, signal reflection will corrupt communication packets if the physical ends of the line are not terminated properly. Ensure 120-ohm resistors are installed at the furthest physical device on each loop.
• ⚠️ Check DIP Switch Settings on Terminal Assemblies: Physical interface configuration (2-wire vs. 4-wire RS-485) often depends on jumpers or switches located on the matching Terminal Assembly (TA). Verify your TA hardware settings match your software block driver parameters before powering up the loop.
• ❗ Maintain Single-Point Shield Grounding: Even though the channels are isolated up to 1500 VAC, tying cable shields to ground at both ends creates ground loops that introduce noise into serial differential lines. Always tie the shield to ground at the TA ground bar only.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the FBM231 hot-swappable on a live system?

A: Yes. You can remove and insert this module onto a live 200 Series baseplate without shutting down system power or disrupting adjacent running I/O modules.

Q: What is the exact difference between P0926JF and ?

A: They are functionally identical. “P0926JF” is the primary legacy Foxboro part number, while “” designates the lead-free, RoHS-compliant manufacturing revision. They swap 1-to-1 in field installations.

Q: Does this card support RS-232 communications?

A: No. The is designed exclusively for RS-422 and RS-485 physical layers. If you require RS-232 support, you should look at the FBM230 (RH916XZ) module.

Q: Are these units brand new or surplus?

A: We stock both Factory Sealed New Surplus and fully bench-tested Clean Refurbished units. Every module undergoes full multi-port communication testing before entering our ship-ready inventory.

Q: What warranty comes with this module?

A: All modules include a full 12-month replacement warranty starting from the date of shipment.
