Description
Product Introduction & Engineering Value
Few things frustrate a field technician like a nuisance trip caused by a failing interposing relay board. When contact bounce or dry joints start corrupting command signals, replacing the card quickly without rewiring half the cabinet is priority number one.

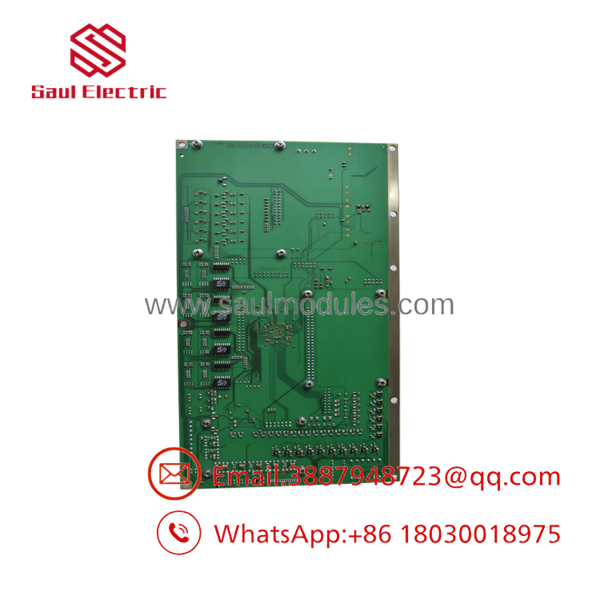

The GE 029.38089610 board provides the rugged signal isolation required between sensitive control processors and heavy-duty field actuators. Built to withstand elevated control room ambient temperatures and harsh electromagnetic interference, this assembly ensures reliable signal switching across thousands of duty cycles.
Technical Specifications
- Operating Supply Voltage: 24 VDC nominal (rated up to 125 VDC depending on output bus configuration)
- Signal Isolation: Optical/galvanic isolation between logic-level inputs and output relays
- Channel Capacity: Multi-channel switching array with visual LED status indicators
- Contact Output Type: Dry contact / SPDT configuration
- Terminal Connection: Heavy-duty screw-clamp terminal blocks
- Operating Temperature Range: -20°C to +60°C (-4°F to 140°F)
- Humidity Tolerance: 5% to 95% non-condensing
- Mounting Style: Chassis baseplate or rack enclosure integration
Field Application & The “Trench” Experience
The Trench Story
A regional gas compressor station logged intermittent trip faults during peak load transitions. The culprit wasn’t a bad valve or pressure spike—it was a cracked trace on an aged relay board that opened only when the enclosure reached 45°C. Swapping in a pre-tested GE 029.38089610 restored stable relay latching in under 20 minutes, preventing an unscheduled plant shutdown.
Niche Application Scenarios
- Gas Turbine Lube Oil Auxiliary Control: Interfacing PLC digital outputs with high-amp pump starters.
- Excitation System Fault Interlocks: Routing trip commands directly to circuit breaker switchgear.
- Emergency Isolation Valve (EIV) Actuation: Driving high-reliability solenoids in critical shutdown loops.
Transparency SOP: QA & Testing
To guarantee zero out-of-box failures on critical replacement jobs, every board undergoes a full bench checkout before shipping:
- Visual & Structural Inspection: Microscopic check for cracked solder joints, trace oxidation, or thermal stressing.
- Power Supply Inrush Check: Verified under variable DC input voltages to test component tolerances.
- Signal & Relay Actuation Test: Every channel is fired under load to check response time, contact resistance, and relay drop-out.
- Thermal Stability Run: Ran for 4 hours in a burn-in environment to isolate heat-sensitive component drift.
The Veteran’s Tech Trap Guide
- ⚠️ Mismatched Relay Coil Ratings: Double-check your incoming field supply voltage before landing wires. Plugging a 125 VDC loop into a 24 VDC coil channel will pop trace fuses immediately.
- PRO TIP: Terminal screws can back out over years of vibration. Always torque connections to vendor spec and apply thread marker during installation so you can spot loose terminal blocks during routine PMs.
- ⚠️ Ground Loop Hazards: Keep signal commons separated from high-voltage field commons. Bridging these at the board terminal block introduces noise that triggers phantom relay cycles.
- 029.38089610
- 029.38089610
Dynamic FAQ
Q: Is this GE 029.38089610 unit brand new surplus or refurbished?
A: We stock both options depending on current availability. Every board—whether New Surplus or Refurbished—undergoes rigorous bench testing before dispatch.
Q: Does this board require software flashing or firmware installation before swap-out?
A: No. The 029.38089610 is a hardware-level switching card. It is drop-in ready out of the box—just match the jumper settings and terminal wiring to your original unit.
Q: How do you handle ESD protection during shipping?
A: All cards are sealed in anti-static ESD bags with custom foam packing to prevent pin bending and static damage in transit.
Q: What warranty coverage comes with this module?
A: We provide a full 1-year replacement warranty on all GE cards, covering functional performance and hardware integrity under standard operational conditions.
