GE 201CI-1 HYDRAN® One-Channel Controller

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The GE 201CI-1 is the central controller of the HYDRAN® 201i online transformer monitoring system. Working with the HYDRAN 201Ti Intelligent Transmitter, it continuously monitors dissolved combustible gas levels in transformer insulating oil, displays gas concentration, generates alarms, and communicates diagnostic information to SCADA and asset management systems.

Since many electrical utilities continue operating HYDRAN 201i installations while OEM availability has declined, maintaining New Surplus inventory helps reduce Total Cost of Ownership (TCO), minimizes lead time variability, and avoids the reliability risks associated with refurbished electronics. Utilities operating critical power transformers should maintain 1–2 spare controllers and implement last-time-buy planning before remaining inventory becomes difficult to obtain.

Installation & Configuration Guide

Stage 1 – Pre-Installation (Preparation & Safety)

1. De-energize the monitoring circuit following approved utility procedures.
2. Wear a grounded ESD wrist strap.
3. Back up all controller configuration parameters.
4. Record:
   • Alarm thresholds
   • Analog output scaling
   • Communication addresses
   • Network configuration
5. Photograph all terminal wiring before removal.

Stage 2 – Removal

1. Disconnect power.
2. Remove communication wiring.
3. Disconnect the supervisory link to the HYDRAN transmitter.
4. Remove mounting hardware.
5. Inspect field wiring and terminals for corrosion or loose connections.

Stage 3 – Installation

1. Verify the replacement is GE 201CI-1.
2. Mount the controller securely.
3. Restore all communication and power wiring.
4. Configure alarm limits and analog outputs.
5. Verify RS-485 addressing and network parameters.

Stage 4 – Power-On & Testing

1. Restore power.
2. Verify normal controller startup.
3. Confirm communication with the HYDRAN 201Ti transmitter.
4. Verify gas concentration display.
5. Test alarm relays and SCADA communications before returning the monitoring system to service.

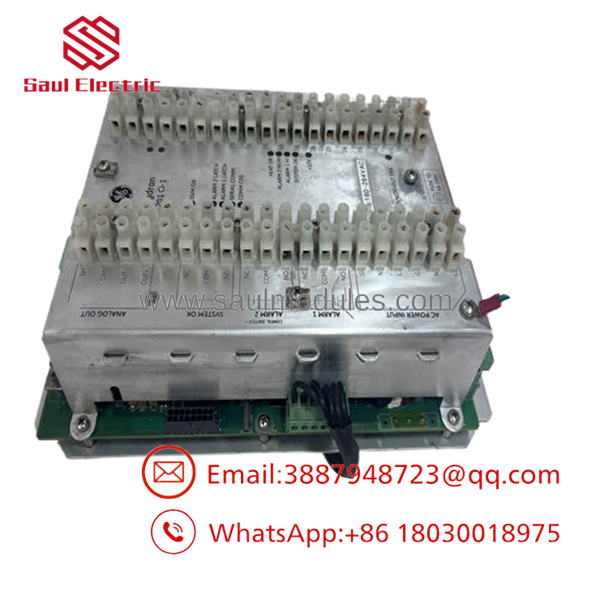

201CI-1

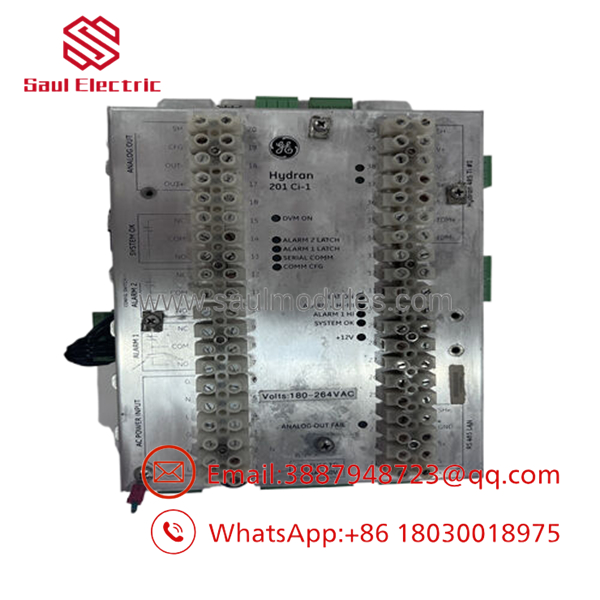

201CI-1

Firmware / Software Versions & Upgrade Notes

• Record the installed firmware revision before replacement.
• Verify compatibility between the 201CI-1 controller and the connected 201Ti Intelligent Transmitter.
• Preserve communication settings when replacing hardware.
• Test all analog outputs and alarm relays after installation.
• Avoid simultaneous firmware upgrades and hardware replacement unless required by an approved maintenance procedure.

Frequently Asked Questions (FAQ)

Q1. Is this a New Original product?

Yes. This product should be supplied as New Original / New Surplus. It is not used, repaired, or refurbished. Each controller should undergo serial number verification, functional testing, and electrical inspection before shipment.

Q2. What does the GE 201CI-1 controller do?

It serves as the operator interface and communications controller for the HYDRAN 201i transformer monitoring system, collecting gas concentration data from the 201Ti Intelligent Transmitter, displaying measurements, generating alarms, and communicating with supervisory systems.

Q3. Which equipment is it compatible with?

The controller is designed for use with the HYDRAN 201Ti Intelligent Transmitter and supports integration into utility monitoring networks using RS-232 and RS-485 communication interfaces.

Q4. Can the controller be replaced without interrupting transformer operation?

The monitoring controller can generally be replaced independently of the transformer itself, but replacement should be performed with the monitoring circuit safely isolated and in accordance with the utility’s maintenance procedures to avoid loss of monitoring data.

Q5. Why choose New Surplus instead of refurbished?

New Surplus controllers retain original OEM manufacturing quality and have not experienced field wear. They provide greater long-term reliability and reduce the likelihood of unexpected failures compared with refurbished equipment.

Q6. What warranty is appropriate for New Surplus inventory?

Professional industrial suppliers typically provide a 12 month warranty, together with functional verification, serial number validation, ESD-safe packaging, and export-grade shipping protection.

Q7. What inventory strategy is recommended?

For utilities using HYDRAN 201i transformer monitoring systems, maintain 1–2 New Surplus GE 201CI-1 controllers as critical buffer stock. Because the platform is a mature legacy product, organizations should monitor lifecycle status, reduce lead time variability through vendor consolidation, and implement last-time-buy planning to ensure long-term maintenance support.
