GE 469-P1-HI-A20 Multilin 469 Motor Protection Relay

Description

Product Introduction

The GE 469-P1-HI-A20 is a digital motor management relay developed for medium-voltage and large low-voltage motors operating in demanding industrial environments. It integrates motor protection, condition monitoring, event recording, diagnostics, and communications into a drawout relay platform widely used in power generation, mining, oil and gas, water treatment, and heavy manufacturing.

Unlike conventional overload relays, the Multilin 469 continuously calculates motor thermal capacity, supervises starting conditions, monitors electrical performance, and records trip events for post-fault analysis. The P1 configuration accepts 1 A CT secondary inputs, making it suitable for installations using low-current protection CTs, while the A20 option provides eight isolated 4–20 mA analog outputs for DCS and PLC integration.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

This is a familiar maintenance story.

A 6.6 kV induced draft fan trips during startup after a scheduled outage. Operators suspect the VFD. Electricians check the breaker. Instrument technicians inspect the process. Hours later, the actual culprit is found—a failed motor protection relay that no longer processes CT inputs correctly. Production has already lost half a shift.

Typical applications include:

• Power Generation — Boiler feed pumps where thermal overload and acceleration supervision protect high-value motors.
• Mining — Crusher and conveyor drives requiring locked-rotor, jam, and unbalance protection.
• Oil & Gas — Compressor motors where analog outputs transmit motor loading to the DCS.
• Water & Wastewater — High-service pumps requiring undercurrent and overload protection.
• Steel & Cement — Large fan and mill motors where event records simplify fault analysis.

Field Replacement Example

A paper mill experienced repeated trips on a 4 MW process fan. The installed relay had developed an internal power supply fault after nearly twenty years of operation. Engineers installed an identical 469-P1-HI-A20, restored the archived settings, verified CT polarity with secondary injection testing, and returned the motor to service before the next production run. Because the replacement matched the original hardware configuration, no PLC or DCS logic changes were required.

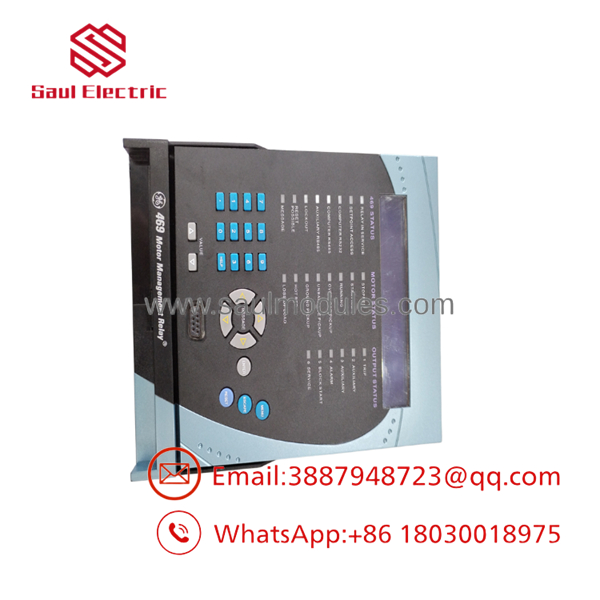

469-P1-HI-A20

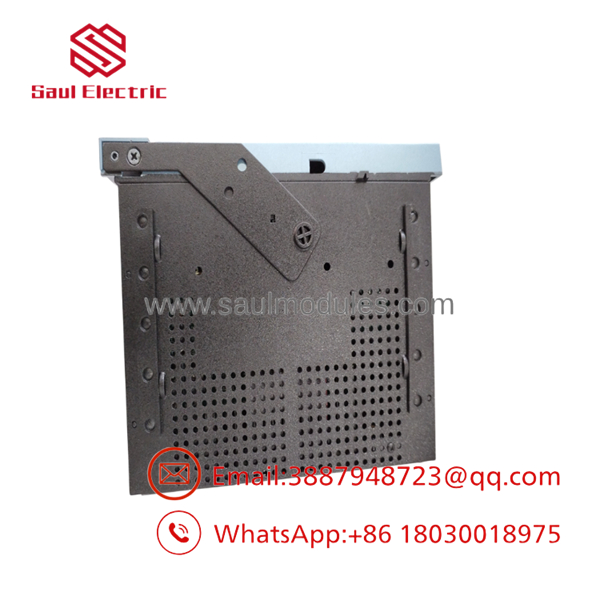

469-P1-HI-A20

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Multilin relay platforms whenever practical.

• Inbound Inspection
  • Verify complete ordering code.
  • Inspect enclosure, terminals, LCD, drawout connectors, and serial labels.
  • Screen for counterfeit components and evidence of unauthorized repair.
• Live Rig Testing
  • Apply rated HI control power.
  • Verify successful startup.
  • Test keypad, LCD, LEDs, relay outputs, and Modbus communications.
• Electrical Parameter Checks
  • Verify CT input channels.
  • Test analog outputs.
  • Confirm digital input and output operation.
  • Check communication stability.
• Firmware Verification
  • Record firmware revision.
  • Record hardware revision.
  • Verify compatibility with existing relay settings.
• Final QC & Anti-static Packaging
  • Complete operational inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping protection.
  • Serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Verify the CT secondary rating.

This relay is built for 1 A CT secondary circuits. Installing it in a system wired for 5 A CTs will produce incorrect current measurements and disable proper motor protection.

❗ Don’t replace only the drawout unit without checking the case.

The Multilin 469 uses a drawout design. Inspect the fixed case connectors for bent pins, corrosion, or heat damage before installing the replacement relay. A new relay cannot compensate for a damaged backplane.

⚠️ Save the configuration before removing the old relay.

If the relay still powers up, upload the settings using EnerVista software. Recreating years of customized overload curves, start limits, and alarm thresholds manually is time-consuming and increases commissioning risk.

❗ Test the analog outputs.

The A20 option provides eight 4–20 mA outputs. Verify scaling and DCS input configuration before placing the motor back into service. Incorrect scaling can make operators think the motor is overloaded when it isn’t.

Frequently Asked Questions (FAQ)

Q1. What does the P1 option indicate?

It specifies 1 A phase CT secondary inputs. Plants using 1 A protection CTs should order the P1 version rather than the P5 version.

Q2. What does the HI power supply option support?

The HI version accepts 90–300 VDC or 70–265 VAC (48–62 Hz) control power, allowing it to operate from a wide range of industrial control voltages.

Q3. What is included with the A20 option?

The A20 configuration provides eight isolated 4–20 mA analog outputs for transmitting motor measurements and operating data to PLC, DCS, or SCADA systems.

Q4. Does this relay support Ethernet?

No. The 469-P1-HI-A20 is the standard version without Ethernet. Ethernet capability is available only on ordering codes that include the T option.

Q5. Can the relay be hot-swapped?

The relay uses a drawout construction, but replacement procedures depend on the switchgear design and plant maintenance practices. Verify the OEM instructions before attempting removal under energized conditions. As a conservative practice, isolate control power and follow lockout/tagout procedures.

Q6. Why is this relay less expensive than buying directly from the OEM?

Most available units come from verified industrial surplus inventories, cancelled capital projects, or strategic spare-parts programs. They are genuine legacy GE Multilin products rather than current production equipment.

Q7. What warranty is typically provided?

Most industrial automation suppliers offer a 12-month warranty covering functional defects under normal operating conditions. Before commissioning, verify the CT ratio, firmware revision, control power option, and configuration file to ensure compatibility with the existing motor protection scheme.
