GE 489-P5-LO-A20 Multilin 489 Generator Protection Relay

Description

Product Introduction

The GE 489-P5-LO-A20 is a digital generator management relay engineered for the protection and supervision of synchronous and induction generators. It combines electrical protection, metering, event recording, diagnostics, and communications into a single drawout relay platform commonly installed in power plants, cogeneration facilities, marine power systems, and industrial generator packages.

This configuration is designed for systems using 5 A current transformers, low-voltage control power, and 4–20 mA analog outputs for integration with PLC and DCS platforms. One thing to watch out for is the LO power supply. It is intended for low-voltage control systems. Installing it where the panel provides high-voltage station power will prevent the relay from operating correctly.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Generator trips rarely happen at a convenient time.

A standby generator starts normally during a utility outage but trips seconds before accepting load. The diesel engine is healthy. The AVR passes inspection. Operators begin questioning the breaker. Eventually the fault is traced to an aging protection relay that has developed an internal hardware failure after years of continuous service.

Typical applications include:

• Utility Power Plants — Generator differential and thermal protection where dependable fault discrimination is essential.
• Combined Heat and Power (CHP) — Generator supervision with analog signals transmitted to the plant DCS.
• Marine Power Systems — Shipboard generators requiring continuous protection and event recording.
• Mining Operations — Isolated power stations where generator reliability directly affects production.
• Industrial Manufacturing — Emergency and prime-power generators integrated with PLC and SCADA systems.

Field Replacement Example

A cogeneration facility experienced repeated generator lockouts after an internal relay power supply failure. Engineers installed an identical 489-P5-LO-A20, restored the archived settings, verified CT polarity and voltage inputs with secondary injection testing, and synchronized the generator back to the plant distribution system before the maintenance window expired. Because the relay configuration matched the original installation, no protection philosophy changes were required.

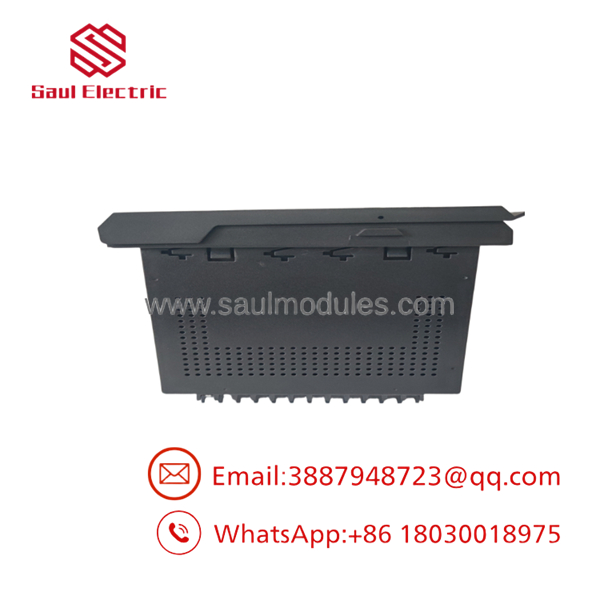

489-P5-LO-A20

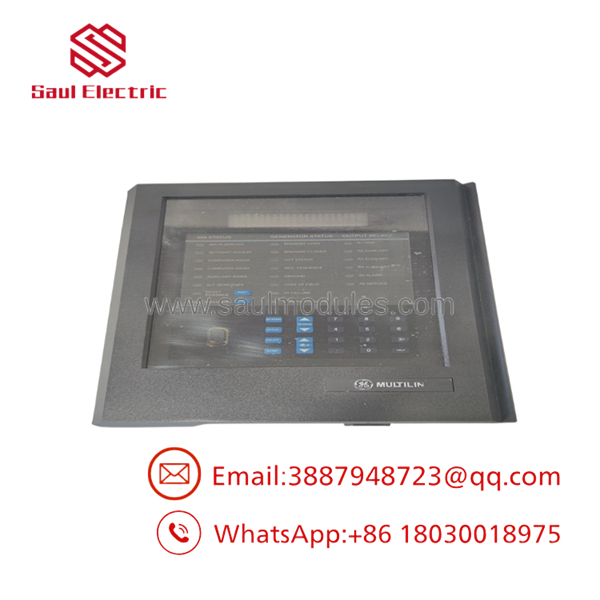

489-P5-LO-A20

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Multilin relay platforms whenever practical.

• Inbound Inspection
  • Verify complete catalog number.
  • Inspect drawout connectors and enclosure.
  • Check OEM labels and serial numbers.
  • Screen for counterfeit indicators.
• Live Rig Testing
  • Apply rated LO control power.
  • Verify successful startup.
  • Test keypad, display, LEDs, relay outputs, and communication ports.
• Electrical Parameter Checks
  • Verify CT input channels.
  • Validate analog output accuracy.
  • Confirm digital input and relay output operation.
• Firmware Verification
  • Record firmware revision.
  • Record hardware revision.
  • Verify compatibility with archived configuration files.
• Final QC & Anti-static Packaging
  • Complete functional inspection.
  • ESD-safe packaging.
  • Shock-resistant shipping protection.
  • Full serial number traceability.

The Veteran’s Tech Trap Guide

⚠️ Confirm the control power before ordering.

The LO version operates from 24–60 VDC or 20–48 VAC. Many generator panels use high-voltage station power. Installing the wrong power supply version means the relay won’t even boot.

❗ Verify the CT secondary rating.

This is a P5 model for 5 A CTs. Don’t substitute it into a panel designed for 1 A CTs. Current measurements and protection calculations will be incorrect.

⚠️ Back up the settings before replacement.

If the existing relay still communicates, save the configuration with GE EnerVista. Generator protection settings often include customized synchronizing logic, alarm delays, and trip coordination that are difficult to recreate manually.

❗ Inspect the drawout case.

Many intermittent faults originate from worn drawout connectors rather than the relay electronics. Before installing the replacement relay, inspect the fixed case for bent pins, overheating, or contamination. If the case is damaged, replacing only the relay may not solve the problem.

Frequently Asked Questions (FAQ)

Q1. What type of equipment is the 489-P5-LO-A20 designed to protect?

It is designed for synchronous and induction generators, providing protection, monitoring, metering, diagnostics, and communications in one relay.

Q2. What does the LO option indicate?

The LO option specifies a 24–60 VDC or 20–48 VAC (48–62 Hz) control power supply. Applications using higher station voltages require the HI version instead.

Q3. What does the A20 option provide?

The A20 option provides four isolated 4–20 mA analog outputs, allowing generator operating data such as current, power, or frequency to be transmitted to PLC, DCS, or SCADA systems.

Q4. Does this model include Ethernet?

No. The 489-P5-LO-A20 is the standard version without Ethernet. Ethernet capability is available only on ordering codes with the T enhancement option.

Q5. Can the relay be hot-swapped?

The relay uses a drawout design, but replacement should follow the generator manufacturer’s maintenance procedures and plant lockout/tagout requirements. Do not assume live replacement is permitted simply because the relay is removable.

Q6. Is this model still manufactured?

No. The Multilin 489 is a legacy product. GE Vernova recommends the Multilin 889 Generator Protection System as its modern replacement platform.

Q7. What warranty is typically offered?

Most industrial automation suppliers provide a 12-month warranty for functionally tested new surplus or professionally refurbished units. Before installation, verify the control power option, CT rating, firmware revision, and generator protection settings against the original relay configuration.
