GE 531X122PCNAMG1 Drive Control Board

Description

Product Introduction & Engineering Value

The GE 531X122PCNAMG1 is a 531X-series printed circuit board used in GE adjustable-speed drive equipment. The complete part number identifies the board assembly and revision; the 122PCNAM designation should not be separated from the G1 revision when sourcing a replacement.

For legacy drive maintenance, the correct board must be matched to the specific drive configuration. Check the complete part number, drive model, board revision, connectors, configuration settings, and applicable GE documentation before energizing the replacement.

Technical Specifications

• Manufacturer: General Electric
• Part Number: 531X122PCNAMG1
• Product Family: 531X
• Board Designation: 122PCNAM
• Product Type: Drive control/interface PCB
• Revision: G1
• Application: GE adjustable-speed drive systems
• Primary Equipment: 531X-series drive hardware
• Control Function: Drive control/interface circuitry
• Installation: GE drive control cabinet
• Configuration: Drive-dependent
• Replacement Strategy: Exact part-number matching

Technical caution: Exact electrical ratings and functional details for the 531X122PCNAMG1 should be verified against the applicable GE 531X documentation and drive model. Do not infer connector pinouts, control voltages, feedback characteristics, or board functionality from another 531X board.

Field Application & the “Trench” Experience

A production line has been running on an older GE adjustable-speed drive for years. During a scheduled maintenance shutdown, a control-board fault is traced to the drive electronics. The maintenance store contains a 531X-series board that looks physically suitable.

The technician checks the original board.

It is marked 531X122PCNAMG1.

Before replacement, the drive model and board revision are documented. The connectors and configuration hardware are photographed, and the replacement PCB is inspected for storage-related damage. After installation, the drive is recommissioned in a controlled sequence rather than immediately applying full production load.

That matters with older drive systems. A PCB replacement can affect startup behavior, feedback, configuration, or protection functions if the wrong board is installed.

Specific application scenarios

1. Adjustable-speed motor drive maintenance — replacing a failed 531X control/interface board during a planned shutdown.
2. Process-line drive troubleshooting — isolating PCB-level faults before replacing the complete drive.
3. Legacy drive spare management — maintaining an exact 531X122PCNAMG1 board for critical motor-control equipment.

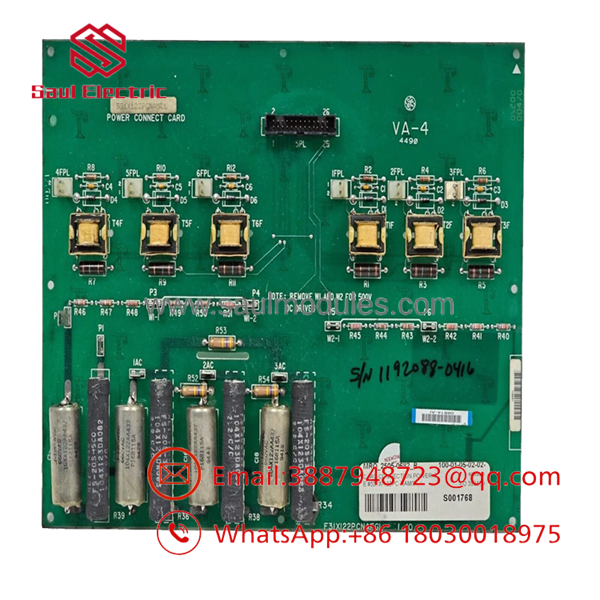

531X122PCNAMG1

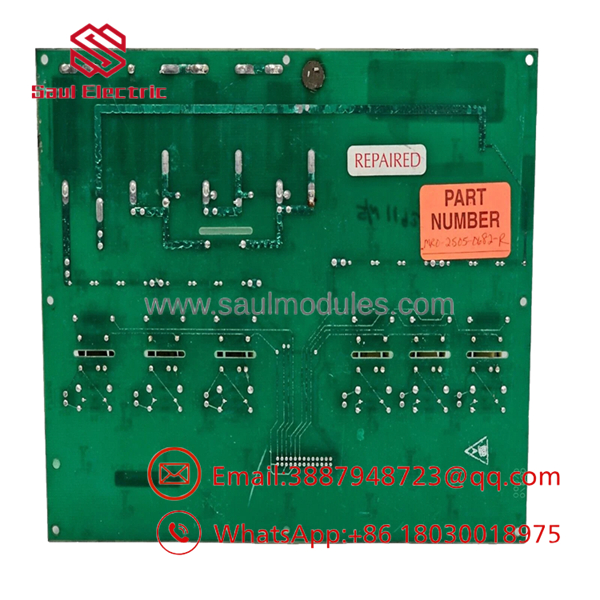

531X122PCNAMG1

Transparency SOP: QA & Testing

For New Surplus or Refurbished stock, the QA process should address both the PCB and its intended drive application.

Recommended testing sequence

1. Part-number verification — confirm 531X122PCNAMG1 and all visible board markings.
2. Visual inspection — check for corrosion, contamination, cracked solder joints, damaged traces, and thermal discoloration.
3. Connector inspection — examine contacts and housings for oxidation, bent pins, contamination, or mechanical damage.
4. Component inspection — assess visible capacitors, resistors, ICs, semiconductors, and other components.
5. Configuration documentation — record jumpers, switches, labels, and revision markings.
6. Electrical checks — perform appropriate continuity, isolation, and power-path tests.
7. Drive-level testing — where suitable GE 531X test equipment and an appropriate drive setup are available, verify board operation under controlled conditions.
8. Final QC record — document test results, repairs, condition, and warranty.

Testing distinction: A board that passes visual inspection has not necessarily been tested in a drive. Ask for the actual test scope.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Matching only the 531X family

A 531X-series board is not automatically interchangeable with another 531X board.

PRO TIP: Specify the complete 531X122PCNAMG1 identifier and the drive model when requesting a replacement.

⚠️ Trap #2 — Ignoring the G1 revision

The revision is part of the replacement decision. Do not substitute another revision without checking the applicable GE documentation.

⚠️ Trap #3 — Losing drive configuration information

Before removing the old PCB, document connectors, jumpers, switches, labels, and relevant drive parameters. A board swap should not become a configuration-recovery exercise.

⚠️ Trap #4 — Powering up without a controlled checkout

After installation, verify wiring and configuration before applying operating power. For a critical motor drive, controlled no-load or commissioning checks are preferable to an immediate production restart.

Dynamic FAQ

What is the GE 531X122PCNAMG1?

The 531X122PCNAMG1 is a GE 531X-series drive control/interface printed circuit board used in adjustable-speed drive equipment.

What equipment is it associated with?

It is associated with GE 531X-series adjustable-speed drive and motor-control systems. Exact application should be confirmed from the drive model and documentation.

Is the 531X122PCNAMG1 a complete drive?

No. It is a circuit-board assembly intended for installation within compatible GE drive equipment.

Can another 531X board replace it?

Not automatically. Verify the complete board number, revision, drive model, connector arrangement, configuration, and applicable GE documentation.

What information should I provide when sourcing one?

Provide the complete 531X122PCNAMG1 number, the GE drive model, photographs of the installed board, revision markings, and any available drive documentation.

What does New Surplus mean?

New Surplus generally refers to unused inventory outside the manufacturer’s current production or normal distribution channel. It does not necessarily indicate recent manufacture.

What does Refurbished mean?

Refurbished generally means previously used or returned hardware has been inspected and may have been repaired and tested. The supplier should disclose the actual refurbishment and test work.

Should New Surplus stock be tested?

Yes. Long-term storage can affect capacitors, connectors, solder joints, and other electronic components. Appropriate inspection and controlled testing are advisable before installation in a production drive.

What warranty should I request?

Confirm the warranty period, covered failures, return procedure, and exact condition of the supplied board. New Surplus, Refurbished, and Repaired units should have clearly stated terms. A supplier warranty should not be represented as a GE factory warranty unless that status is documented.
