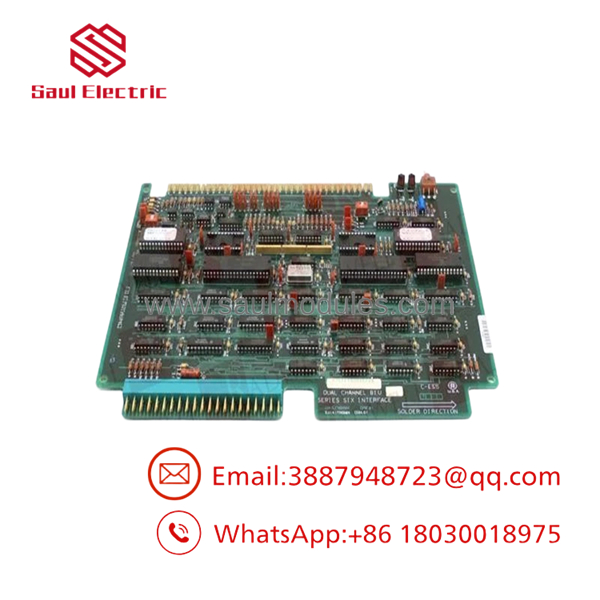

GE 531X175SSBAAM3 Dual Channel BIU Board

Description

Product Introduction

The GE 531X175SSBAAM3 is a specialized Dual Channel Bus Interface Unit (BIU) module designed for GE 531X series drive regulators and industrial control systems. Installed in the drive card rack, this board acts as the primary communication bridge between external GE Series Six Programmable Logic Controllers (PLCs) and internal drive regulator microprocessors.

System integrators and drive technicians rely on the SSBAAM3 module to ensure rapid, bidirectional reference data transfer between high-level plant automation networks and heavy-duty motor drives. Featuring dual-channel isolation, onboard memory buffer management, and gold-plated card-edge connectors, the board converts complex PLC control commands into high-speed drive bus signals without risking bus contention or signal noise corruptions.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 1:15 AM during a critical production run at a steel rolling mill, and the primary rougher stand drive drops off the network with a persistent “PLC Communication Fault.” The Series Six PLC is transmitting normally, but the drive’s internal regulator fails to receive reference speed commands. Diagnostics trace the issue to a failed transceiver IC on the original interface card following an electrical line surge. Swapping in a bench-verified 531X175SSBAAM3 replacement board, matching the hardware jumper array to the original card’s configuration, and reseating the backplane connectors clears the network fault and restores full drive synchronization.

• Metals & Steel Processing Mills – Heavy DC/AC Drive Cabinets – Routing high-speed torque and speed setpoints from Series Six PLCs to drive control loops.
• Paper & Converting Operations – Multi-Section Web Drives – Maintaining precise multi-drive communication and speed ratio matching.
• Mining & Heavy Material Handling – Crane & Hoist Drives – Transmitting discrete control states and feedback status over serial bus links.

Transparency SOP: Quality Assurance & Testing

Every card in our inventory undergoes rigorous verification before shipment:

1. Inbound Visual & Pin Inspection: Inspect gold card-edge connector fingers for pitting, wear, or trace scratches, and inspect onboard components for thermal discoloration.
2. Cold Power Rail Resistance Test: Verify electrical resistance across internal power rails to ensure zero short circuits prior to applying rack power.
3. Power-On & Bus Communication Test: Seat the module into a live 531X drive rack connected to a Series Six test harness. Verify dual-channel loopback performance, buffer handshake logic, and error-free data packet transmission.
4. Revision Code Audit: Confirm exact SSBAAM3 hardware revision markings on the final QA release certificate.
5. ESD Packaging: Seal in static-shielding bags with fresh desiccant prior to custom foam packaging.

531X175SSBAAM3

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Match Board Jumper Settings Exactly Before Installation!

The 531X175SSBAAM3 card relies on onboard hardware jumper blocks to define channel address assignments, baud rates, and bus termination resistance. Installing a replacement board with default or unmatched jumper positions will prevent the drive from handshaking with the Series Six PLC. Always copy the jumper positions directly from your old board!

❗ 2. Clean Rack Backplane Connectors Prior to Insertion

Because this board utilizes physical gold-finger edge contacts, dust, airborne oil mist, or oxidation inside the rack socket can cause intermittent channel dropouts. Clean the card edge contacts with an approved contact cleaner and ensure the backplane slot is free of debris before seating the module.

⚠️ 3. Always De-energize Cabinet Main Power Before Swapping

Plucking or inserting 531X series communication cards while the backplane bus is powered can cause transient voltage spikes across adjacent bus lines, potentially damaging sensitive microprocessor components on connected regulator boards.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the 531X175SSBAAM3 hot-swappable?

A: No. Removing a BIU card while the drive is online interrupts critical PLC communications, causing an immediate emergency trip. Always execute full LOTO procedures before servicing the module.

Q: What does the “SSBAAM3” suffix mean?

A: In GE 531X part numbering, SSB designates the base board functional group (Dual Channel BIU), while AM3 represents the specific artwork revision and component bill-of-materials (BOM) build.

Q: Can a 531X175SSBAAM3 board replace an earlier 531X175SSBA revision?

A: Yes, in almost all 531X drive applications, later engineering revision levels like AM3 are directly backward-compatible with earlier SSB variants, provided all configuration jumpers are set identically.

Q: Is this unit new or refurbished, and what warranty covers it?

A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.
