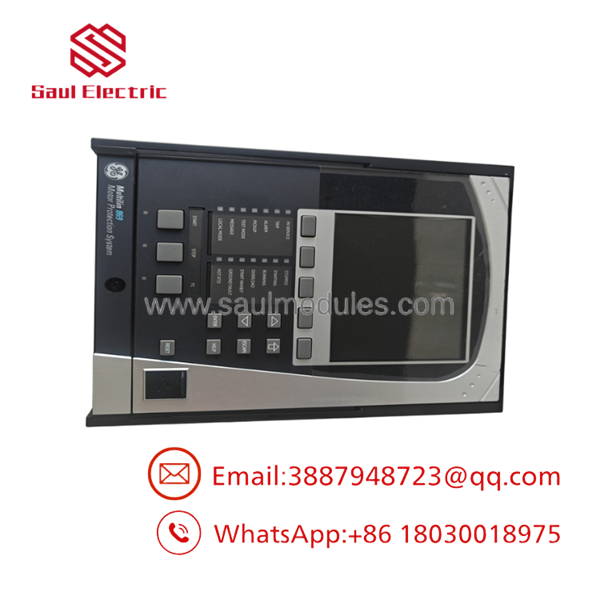

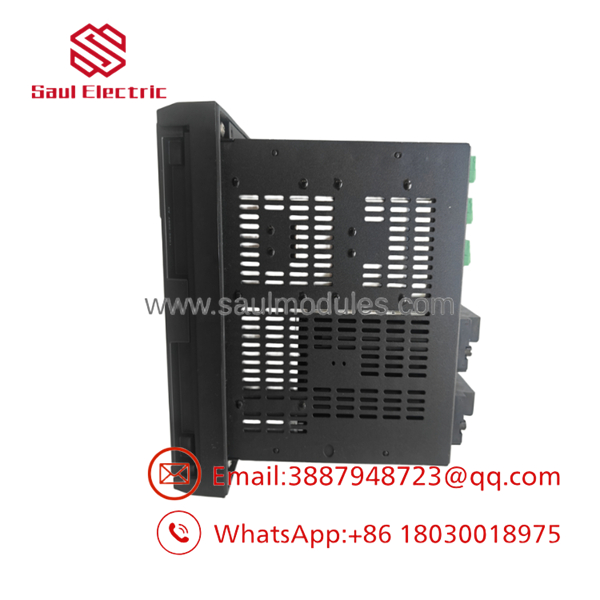

GE 869-E-P1-P1-B1-H-S-S-A-L-A-M-M-P-F-B-SE-N-N-B-N-1 Multilin 869 Motor Protection Relay

Description

Product Introduction

The GE 869-E-P1-P1-B1-H-S-S-A-L-A-M-M-P-F-B-SE-N-N-B-N-1 is a factory-configured Multilin 869 motor protection relay from GE Vernova’s 8 Series platform. It is intended for medium- and large-horsepower induction and synchronous motors where protection, control, diagnostics, and communications must operate from a single intelligent relay. The platform is commonly installed in refineries, power stations, mining operations, and heavy process industries.

Compared with the legacy Multilin 469, the 869 adds substantially faster protection processing, expanded programmable logic, advanced motor health diagnostics, electrical signal analysis, color HMI, and modern Ethernet-based communication options. Plants upgrading aging motor protection schemes often select the 869 because retrofit kits are available for existing 469 installations, reducing engineering effort during modernization.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s a situation that usually gets everyone’s attention.

A 9 MW compressor motor trips during startup. Current looks normal. The VFD reports no fault. Bearings appear healthy. After several hours of troubleshooting, engineers discover the motor is experiencing developing rotor problems that only become visible through electrical signature analysis inside the protection relay. Conventional overload relays would never have detected it.

Typical applications include:

• Oil & Gas — Compressor trains requiring synchronous motor protection, extensive diagnostics, and Ethernet integration with the plant DCS.
• Power Generation — Boiler feed pumps where high-speed protection minimizes thermal stress during abnormal starts.
• Mining — SAG mills and conveyor drives where programmable logic coordinates motor sequencing and breaker control.
• Water & Wastewater — Large pumping stations requiring continuous motor health monitoring and disturbance recording.
• Chemical Processing — High-value process motors where predictive diagnostics help schedule maintenance before an unplanned shutdown.

Field Replacement Example

During a refinery turnaround, engineers upgraded an aging Multilin 469 installation to the 869-E-P1-P1-B1-H-S-S-A-L-A-M-M-P-F-B-SE-N-N-B-N-1 using the available retrofit hardware. Existing panel cutouts were retained, commissioning time was shortened, and operators immediately gained detailed motor health reports, event records, and Ethernet connectivity without redesigning the protection philosophy.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Multilin relay platforms whenever practical.

• Inbound Inspection
  • Verify complete factory ordering code.
  • Confirm hardware option modules.
  • Inspect display, connectors, Ethernet ports, and terminal blocks.
  • Check OEM labels and serial numbers.
• Live Rig Testing
  • Apply rated control power.
  • Verify successful startup.
  • Test HMI, LEDs, USB, Ethernet, and RS485 communications.
• Electrical Parameter Checks
  • Verify current input circuitry.
  • Test programmable digital inputs and outputs.
  • Confirm communication performance and relay operation.
• Firmware Verification
  • Record firmware revision.
  • Record hardware revision.
  • Verify compatibility with EnerVista setup software.
• Final QC & Packaging
  • Functional inspection.
  • Anti-static packaging.
  • Shock-resistant protective materials.
  • Complete traceability documentation.

869-E-P1-P1-B1-H-S-S-A-L-A-M-M-P-F-B-SE-N-N-B-N-1

869-E-P1-P1-B1-H-S-S-A-L-A-M-M-P-F-B-SE-N-N-B-N-1

The Veteran’s Tech Trap Guide

⚠️ Match the complete ordering code—not just “869.”

The 869 platform is highly configurable. CT ratings, communication modules, I/O hardware, power supply, and monitoring features are determined by the complete factory code. Two relays labeled “869” can have very different hardware.

❗ Verify both CT banks before commissioning.

This relay is configured with dual 1 A current input banks. Incorrect CT scaling or swapped current circuits will compromise thermal modeling and protection accuracy.

⚠️ Check firmware before restoring settings.

Settings created on newer firmware revisions may require conversion before downloading to older hardware. Compare firmware versions before beginning commissioning.

❗ Don’t skip disturbance record verification.

One of the biggest advantages of the 869 is its event and disturbance recording. Before returning the motor to production, trigger a controlled functional test and confirm that event records, communications, and alarms are being captured correctly.

Frequently Asked Questions (FAQ)

Q1. What equipment is the Multilin 869 designed to protect?

It protects medium- and large-horsepower induction motors and synchronous motors, providing integrated protection, control, diagnostics, and monitoring.

Q2. Can this relay replace a Multilin 469?

Yes. GE Vernova provides 469-to-869 retrofit solutions that simplify migration while preserving much of the existing panel infrastructure. Wiring and settings should still be reviewed during commissioning.

Q3. Does this model support Ethernet?

Yes. The 869 platform supports Ethernet-based communications in addition to USB and RS485. Depending on the ordered communication package, supported protocols can include Modbus TCP, DNP3, IEC 61850, IEC 60870-5-104, PRP, and HSR. Always verify the exact communication option from the complete ordering code.

Q4. What diagnostic features are included?

The 869 provides motor health reports, disturbance recording, event logs, programmable logic, breaker monitoring, and optional Electrical Signal Analysis (ESA) for detecting developing electrical and mechanical faults before they become catastrophic.

Q5. Can this relay be hot-swapped?

No. The relay should be installed and serviced according to the manufacturer’s maintenance procedures with appropriate lockout/tagout practices. Verify all CT, VT, and control wiring before energizing.

Q6. Why is the complete ordering code so important?

Every segment of the ordering code defines hardware such as CT ratings, ground inputs, communications, HMI, I/O, monitoring features, and power supply. Ordering an incorrect configuration may require panel rewiring or prevent proper integration with the existing protection scheme.

Q7. What warranty is typically provided?

Most industrial automation suppliers provide a 12-month warranty on functionally tested new surplus or professionally refurbished units. Before installation, verify the complete ordering code, firmware revision, communication options, and configuration files against the original relay to ensure full compatibility.
