Description
Product Introduction & Engineering Value
The GE DS200DC designation belongs to the older DS200 family of printed wiring boards used in GE drive and excitation equipment. These boards were not interchangeable simply because their base numbers looked similar. The complete catalog number, revision, group designation, and application were important when selecting a replacement.
For maintenance teams, this distinction matters. A shortened DS200DC description can identify the general product family, but it does not provide enough information to establish electrical or mechanical compatibility. The original board label and equipment documentation should be checked before ordering.
Technical Specifications
Because DS200DC is an incomplete designation, the following specifications should be treated as family-level information rather than as a confirmed specification sheet for one exact board.
| Parameter | Engineering Reference |
|---|---|
| Manufacturer | General Electric |
| Board Family | DS200 |
| Equipment Family | GE DC2000 / related drive systems |
| Board Type | Printed wiring board |
| Typical Function | Drive power/control interface, depending on exact suffix |
| Input Power | Depends on exact board variant |
| Control Voltage | Depends on exact board variant |
| I/O Functions | Depends on exact board variant |
| Connectors | Variant-specific |
| Jumpers / Switches | Variant-specific |
| Revision | Must be verified from nameplate |
| Group / Functional Code | Must be verified from complete part number |
For reference, GE documentation identifies the DS200DCFB specifically as a Power Supply Board. That board receives AC input from the control power transformer and provides control-level DC supplies for the associated equipment. The documented DCFB version provides +24 VDC, -24 VDC, +15 VDC, -15 VDC, and +5 VDC supply functions.
Do not automatically apply those DCFB specifications to every product advertised simply as “DS200DC.”

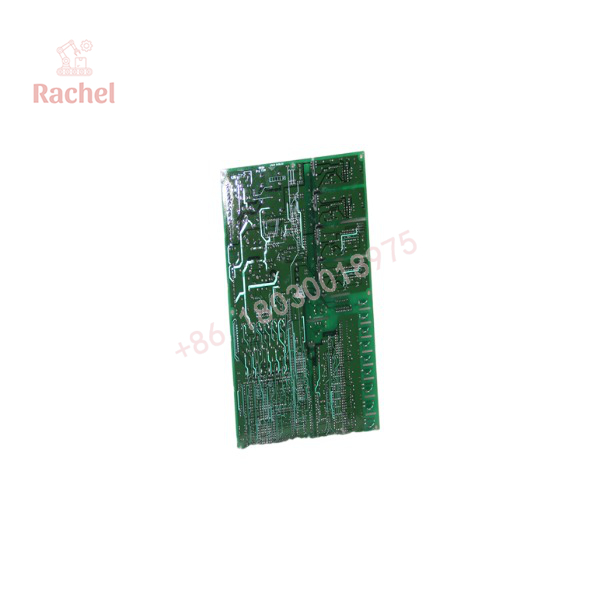

DS200DC

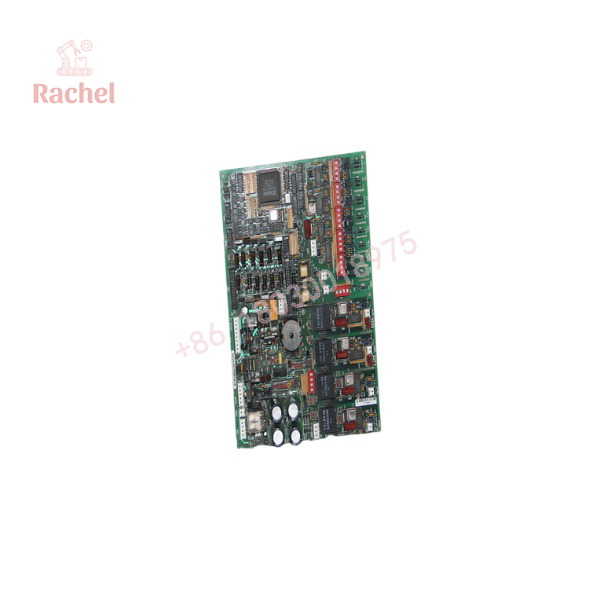

DS200DC
Field Application & the “Trench” Experience
A common legacy-drive replacement problem starts with a purchasing request that simply says, “Need one GE DS200DC.” The warehouse finds a board with a similar label, the physical dimensions appear correct, and the replacement is ordered.
That is where things can go wrong.
During maintenance, the technician compares the replacement board with the installed board and discovers that the suffix or revision differs. Connector assignments, power functions, jumpers, or board configuration may not match the original application. The result is a delayed startup and another procurement cycle.
GE’s documentation explicitly explains that DS200 board numbering contains information beyond the base designation and states that all digits are important when ordering or replacing a board.
Niche application scenarios
- DC2000 drive control cabinet: Replacement of a legacy control/power board during scheduled drive maintenance.
- GF2000 generator field-excitation equipment: Maintenance of the control power and excitation electronics associated with the older GE architecture.
- Legacy industrial DC motor drive: Spare-board management where maintaining the existing DS200 architecture is preferable to immediate drive modernization.
Transparency SOP: QA & Testing
For New Surplus stock, a proper verification sequence should include:
- Full part-number capture — Photograph the entire board nameplate and every suffix/revision character.
- Board inspection — Examine the PCB, components, connectors, terminal points, and mounting hardware for storage or handling damage.
- Revision comparison — Compare the replacement board against the customer’s installed board, including revision and group designation.
- Electrical test — Where the exact board variant is known and suitable test equipment exists, verify applicable power-supply and functional circuits.
- Application test — For critical drive spares, test the board in an appropriate GE-compatible test environment rather than relying only on a visual inspection.
- Traceability record — Record the exact board number and test status before shipment.
A board that merely powers up should not automatically be described as fully function-tested.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — “DS200DC” is not enough.
This is the biggest issue. The DS200 family uses additional characters to identify the actual board configuration. GE documentation specifically notes the importance of the complete designation.
⚠️ Trap #2 — Do not substitute by physical appearance.
Two DS200 boards can have similar mechanical characteristics while performing completely different functions. Confirm the electrical role and exact suffix before installing anything.
⚠️ Trap #3 — Preserve configuration information.
If the original board contains jumpers, switches, adjustable hardware, or configuration settings, document them before removal. GE’s legacy equipment documentation identifies configurable hardware on multiple DS200 boards.
PRO TIP: For a purchase request, use this format:
GE + complete DS200 part number + revision/group designation + equipment model
That is far safer than sending only .
Dynamic FAQ
What is the GE DS200DC?
is a shortened designation associated with GE’s DS200-series drive/control boards. It is not sufficient by itself to identify one exact replacement board.
Is DS200DC a power supply board?
That depends on the complete suffix. GE documentation identifies DS200DCFB as a Power Supply Board for specific GE DC2000/GF2000 applications, but the shortened designation should not be treated as proof that every corresponding board is a DCFB.
What information should I provide when ordering?
Provide the complete board part number, revision, group designation if present, equipment model, and a clear photograph of the board nameplate. This is especially important for legacy GE DS200 hardware.
Can a different DS200 revision be used as a replacement?
Not automatically. Some revisions may be compatible while others represent functional changes. GE documentation distinguishes revision information and states that the complete board designation is important for replacement.
Is GE DS200DC obsolete?
The DS200 family represents a legacy GE drive-control platform and is commonly handled today through surplus, refurbished, and replacement-part channels. Current secondary-market listings continue to identify DS200DC and related DS200 boards as industrial automation spare parts.
How should New Surplus authenticity be verified?
Check the original GE markings, complete part number, revision/group designation, PCB condition, connector condition, and traceability. Request actual photographs of the unit being supplied. For critical applications, also request a documented functional-test report and written warranty/DOA terms.
