GE DS200EXDEG1A Speedtronic Mark V De-Excitation Control Board

Description

Product Introduction

The GE DS200EXDEG1A functions as a De-Excitation Control Board (EXDE) within GE Speedtronic Mark V control frameworks and EX2000 generator excitation systems. Built specifically for high-power generator protection, the EXDE board manages the rapid, controlled dissipation of inductive energy stored in the generator field windings during emergency trips, system shutdowns, or de-excitation sequences.

Featuring onboard high-voltage isolation networks, firing pulse transformers for crowbar SCRs, and voltage monitoring circuits, the DS200EXDEG1A interfaces directly with the main drive controller rack and power bridge. It provides rapid field discharge timing, preventing destructive over-voltage transients across the generator rotor and exciter rectifiers.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a planned generator shutdown sequence on a utility steam turbine, the excitation controller fails to command a clean field discharge, causing the generator field voltage to decay slowly and triggering a backup field over-voltage alarm. Diagnostic troubleshooting traces the fault to degraded firing transformers and capacitor drift on the original EXDE board. Technicians isolate power, perform LOTO procedures, and install a bench-tested DS200EXDEG1A replacement module. Upon testing the de-excitation sequence, the crowbar circuit fires cleanly, restoring rapid field discharge timing and clearing the alarm state.

• EX2000 Generator Excitation – Field Energy Dissipation – Triggers discharge resistor contactors and crowbar SCRs during system trips.
• Generator Protection Integration – Over-Voltage Suppression – Clamps induced voltage spikes during sudden load rejections or grid loss.
• Excitation System Maintenance – Retrofit & Spare Replacement – Replaces failing field discharge control circuits without modifying power bridge layout.

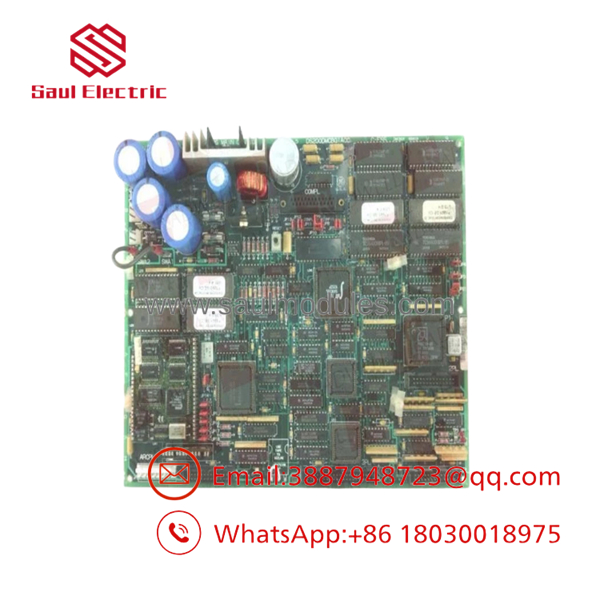

DS200EXDEG1A

Transparency SOP: Quality Assurance & Testing

1. Visual & Structural Audit: High-magnification check for thermal discoloration around high-voltage resistors, capacitor swelling/leakage, trace solder fatigue, and terminal pin alignment.
2. Capacitor & Pulse Transformer Test: Measuring equivalent series resistance (ESR) on onboard energy-storage capacitors and checking winding continuity across pulse transformers.
3. High-Voltage Isolation Verification: Performing dielectric withstand and insulation resistance tests across low-voltage logic traces and high-voltage sensing lines.
4. Trigger & Gate Pulse Audit: Bench-firing pulse outputs on an oscilloscope under simulated trip conditions to confirm crisp pulse amplitude and timing response.
5. Anti-Static ESD Packaging: Encapsulated in heavy-duty ESD static-shielding bags with fresh desiccant packages prior to high-density foam shipping packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ ALLOW FIELD DISCHARGE / BUS DECAY BEFORE SERVICING: The EXDE board directly interfaces with high-energy generator field circuits and discharge resistors. Always verify zero voltage across field terminals and discharge capacitors before handling the card.
• ❗ INSPECT DISCHARGE RESISTORS & CROWBAR SCRs: A damaged DS200EXDEG1A card can be a symptom rather than the root cause. Always inspect external field discharge resistors and crowbar SCR modules for short circuits before energizing a new board.
• ⚠️ DO NOT HOT-SWAP THIS MODULE: Unplugging or inserting the EXDE board while control power is active can trigger unwanted gate pulses, accidentally closing the de-excitation contactor or firing the crowbar circuit under load.
• ❗ VERIFY HARDWARE JUMPERS & DIP SWITCHES: Match all hardware jumpers and address settings from the original board to ensure field voltage sensing levels match your specific exciter frame size.

Frequently Asked Questions (FAQ for Conversion)

Q: What is the main function of the DS200EXDEG1A board?

A: It controls generator field de-excitation, driving crowbar circuits and discharge contactors to quickly dissipate stored rotor energy during trips or shutdowns.

Q: Which excitation systems utilize the DS200EXDEG1A module?

A: It is primarily used in GE EX2000 excitation systems and integrated Speedtronic Mark V turbine control racks.

Q: Does replacing this board require software flashing or programming?

A: No. The DS200EXDEG1A functions as a hardware control and pulse-firing board; all system software and trip setpoints reside in the main processor core.

Q: What warranty comes with this module?

A: Every unit is backed by a full 12-month replacement warranty covering pulse generator firing, channel isolation, and trace continuity.
