Description
Product Introduction
The GE DS200FSAAG2ABA is a heavy-duty Field Supply Amplifier Board (FSAA) designed for GE Speedtronic Mark V turbine control panels and GE drive cabinets. Positioned in the power conversion rack, it operates as the direct interface between low-level regulator control logic and high-power silicon-controlled rectifier (SCR) bridges, supplying regulated DC excitation to motor or generator field circuits.
Turbine engineers and drive specialists depend on the FSAA card for fast, precise field current control. The module integrates gate drive transformers, pulse-shaping circuits, and voltage feedback networks directly onto a heavy-duty PCB frame, buffering delicate processor circuits against power bridge line transients while ensuring smooth excitation under rapidly changing load conditions.
Key Technical Specifications
| Parameter | Specification / Value |
| Part Number | DS200FSAAG2ABA |
| System Compatibility | GE Speedtronic Mark V / Direct-O-Matic 2000 Drives |
| Board Type | Field Supply Amplifier Board (FSAA) |
| Primary Function | SCR gate pulse amplification & field current regulation |
| Interconnects | Onboard terminal connectors & multi-pin ribbon cable headers |
| Onboard Components | Pulse transformers, high-wattage power resistors, snubber capacitors |
| Form Factor | Rack-mounted power circuit board with aluminum bracket reinforcement |
| Revision Level | Group 2, Artwork A, Revision BA (G2ABA) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
Application Scenarios & The “Trench” Experience
It’s 2:30 AM during a peak-demand shift, and a 100 MW generator trips off-line due to a sudden “Loss of Excitation” trip alarm. Physical inspection confirms the primary field power bridge is intact, but a failed pulse transformer on the aging FSAA board stopped firing the excitation SCRs. The generator’s exciter field lost current instantly. Swapping in a bench-tested DS200FSAAG2ABA replacement module, matching its wire harnesses, and verifying gate pulse delivery clears the fault and allows the unit to re-synchronize with the grid.
- Power Generation Facilities – GE Frame 6/7/9 Gas Turbines – Driving excitation field supply loops for main generators.
- Heavy Industrial DC Drives – Steel Rolling Mills & Mine Hoists – Providing fast, dual-quadrant motor field current regulation.
- Combined-Cycle Steam Operations – Auxiliary Generator Controls – Regulating field current during start-up ramps and load changes.
Field Case Study
A paper mill’s main drive panel experienced field current hunting that caused severe web tension oscillations. Troubleshooting identified thermal drift in the feedback conditioning loop of the original field supply board. We dispatched a fully tested DS200FSAAG2ABA replacement card overnight. The site technician replaced the module, verified gate signal delivery with an oscilloscope, and eliminated the tension fluctuation—preventing an estimated $80,000 in lost paper production.

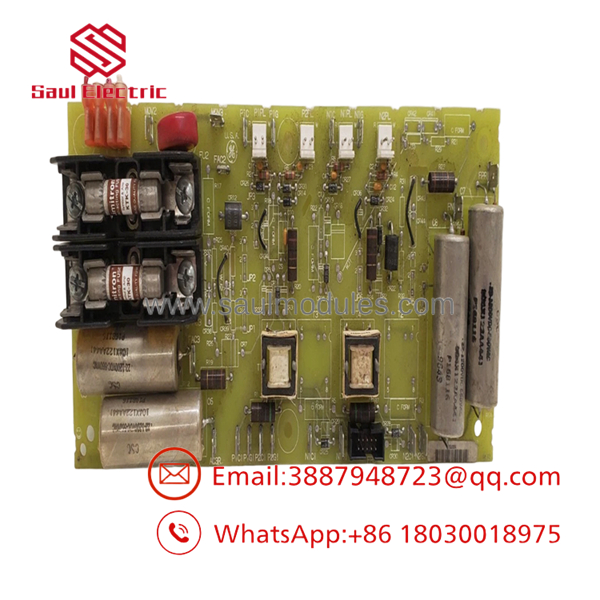

DS200FSAAG2ABA
Transparency SOP: Quality Assurance & Testing
We test every card on live GE Mark V test benches before shipment:
- Inbound Visual & Component Audit: Inspect snubber capacitors for leakage or swelling, audit high-wattage resistors for thermal cracking, and check ribbon connectors for pin oxidation or damage.
- Cold Power Rail & Gate Resistance Check: Test resistance across high-current gate driver channels to ensure no shorted SCR driver transformers or blown diodes exist.
- Power-On & Gate Pulse Sweep: Seat the board into a live Mark V rack chassis, inject trigger commands, and verify clean, high-amplitude SCR firing pulses across all output channels using an oscilloscope.
- Thermal Stability Test: Run the board under full load on a test bench to ensure zero component drift as ambient operating temperatures rise.
- Revision Code Verification: Document the exact
G2ABArevision markings on the final release certificate. - ESD Packaging: Seal inside static-shielding bags with fresh desiccant prior to packing in custom heavy-duty foam containers.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Verify SCR Gate Connector Polarity Before Applying Power!
The FSAA board connects directly to external high-power SCR gate terminals via wire harnesses. Swapping gate-cathode connections during replacement can prevent the SCRs from firing or cause short circuits across the excitation bridge. Always tag every wire lead and refer to cabinet wiring schematics before reconnecting!
❗ 2. Discharge High-Voltage Snubber Capacitors
The onboard capacitors and snubber networks on the DS200FSAAG2ABA retain high DC voltages long after rack power is disconnected. Wait at least 5 minutes after locking out power, and use a voltmeter to confirm zero residual voltage across main power terminals before handling the card.
⚠️ 3. Never Pull or Insert the Card While Cabinet Power is Live
Plucking or inserting the FSAA card under power severs live excitation feedback loops, which can trigger an ungraceful system lockout or cause inductive arcs that damage neighboring processor boards inside the Mark V rack.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the DS200FSAAG2ABA hot-swappable?
A: No. Removing a field supply amplifier card while the cabinet is powered severs active field excitation, causing an immediate turbine trip or drive fault. Always execute full LOTO procedures before servicing this board.
Q: What does the “G2ABA” suffix mean?
A: In GE Speedtronic part numbers, G2 specifies the functional group (Group 2), while ABA indicates the exact engineering revision level (Artwork A, Assembly Revision BA).
Q: Can a replace an earlier DS200FSAAG1A board?
A: Group 2 (G2) boards are functionally updated versions of Group 1 (G1) cards, but you must verify power rating requirements and harness pinouts in your cabinet manual before retrofitting across groups.
Q: Is this unit new or refurbished, and what warranty covers it?
A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.
