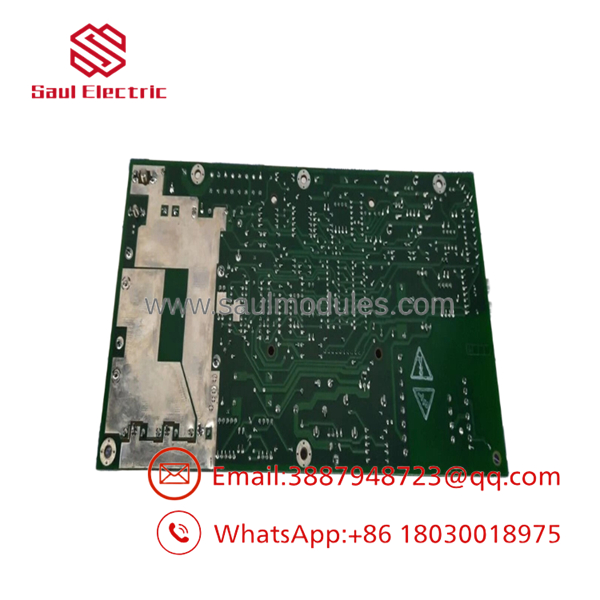

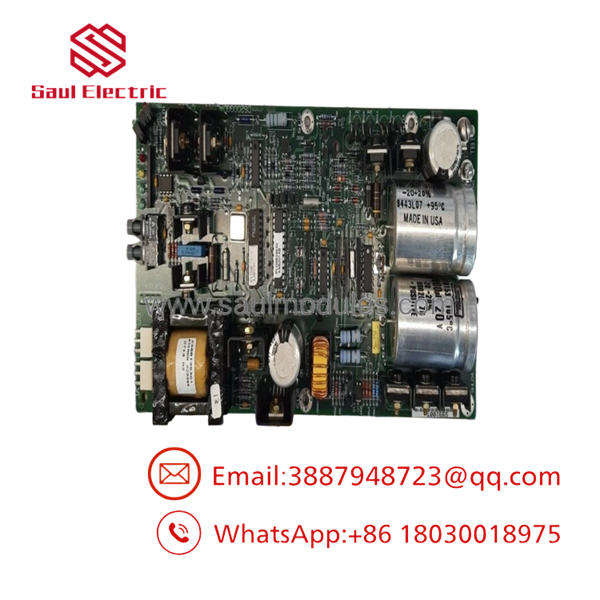

GE DS200GGDAG1AHF GTO Gate Driver Board Mark V

Description

Product Introduction & Engineering Value

The DS200GGDAG1AHF is a power-electronics interface board. Its job is tied directly to the control of GTO switching devices, so a failure can affect drive firing, switching behavior, and associated fault indications. The board family is listed within GE’s Mark V drive-control hardware.

For procurement, do not reduce this part to simply “DS200GGDAG1A.” The HF suffix is part of the identification that should be checked against the installed board. A similar GGDA assembly may look compatible while carrying a different configuration or revision.

Technical Specifications

Available references identify the base DS200GGDAG1A as a GTO Gate Driver Board and report two 3-pin connectors, two bayonet connectors, and two banks of four diagnostic LEDs.

Technical caution: Published third-party specifications for input voltage, gate voltage, switching frequency, and output current vary considerably. Those figures should not be treated as authoritative ratings for the exact DS200GGDAG1AHF without the applicable GE documentation. The more consistently supported identification is the GGDA GTO Gate Driver Board function.

Field Application & the “Trench” Experience

A gate-driver board is not where you want to experiment with substitutions.

Consider an older GE drive that begins generating intermittent firing or bridge faults during a production run. The maintenance team identifies the installed board as DS200GGDAG1AHF. A visually similar GGDA board is available in the storeroom, but its complete suffix does not match.

The technician stops the swap.

Instead, the original board’s identification, LED condition, connector arrangement, associated gate wiring, and drive documentation are recorded. The replacement is checked against those records and electrically screened before installation. After replacement, the drive is tested under controlled conditions rather than being returned directly to full load.

Niche application scenarios

• GTO drive firing circuits: providing gate-drive functions for compatible GE power-conversion equipment.
• Legacy GE Mark V drive maintenance: replacing obsolete gate-driver hardware without redesigning the existing control system.
• Scheduled drive outages: pre-testing a GGDA spare before intervention on critical motor or power-conversion equipment.

DS200GGDAG1AHF

DS200GGDAG1AHF

Transparency SOP: QA & Testing

A useful QA sequence for the DS200GGDAG1AHF is:

1. Identification — Verify the complete part number, including HF, plus all board labels and revision markings.
2. Physical inspection — Examine connectors, gate-drive circuitry, PCB traces, solder joints, and components for thermal or mechanical damage.
3. Connector inspection — Check the 3-pin and bayonet-style connections for damaged contacts or contamination.
4. Diagnostic inspection — Record the condition of the LED indicators where applicable.
5. Electrical screening — Check for shorts, abnormal resistance paths, and obvious component failures before applying operating power.
6. Gate-drive testing — Where suitable test equipment exists, verify the relevant driver outputs and protection circuits.
7. System test — Confirm proper interaction with the associated GE drive and GTO bridge under controlled conditions.
8. Traceability — Document board condition, revision, test scope, and warranty.

For New Surplus stock, request photographs of the actual PCB and confirmation that it has not previously been installed or rebuilt.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t order only “GGDA.”
GE lists multiple DS200GGDAG1A variants. The complete DS200GGDAG1AHF designation should be matched before shipment.

⚠️ Trap #2 — Don’t ignore the diagnostic LEDs.
The GGDA family uses LED indicators to provide board-status information. Record the original LED state before removing a suspect board; it can be useful during fault analysis.

PRO TIP: Photograph every connector and LED bank before disconnecting the original board. Label the gate connections individually.

⚠️ Trap #3 — Be skeptical of generic electrical specifications.
Third-party listings publish different voltage, current, and switching-frequency values for this family. Do not use those figures for drive design or protection calculations without OEM documentation.

Dynamic FAQ

What is the GE DS200GGDAG1AHF?

The is a GE GGDA GTO Gate Driver Board associated with the Mark V / GE drive-control family.

What does the GGDA board do?

It provides gate-driver functions associated with GTO power devices in compatible GE drive systems. It is part of the power-electronics control path rather than a conventional PLC I/O module.

What connectors are associated with the GGDA family?

References for the DS200GGDAG1A family identify two 3-pin connectors and two bayonet connectors. Verify the physical configuration on the actual HF variant before installation.

Can another DS200GGDAG1A variant replace the DS200GGDAG1AHF?

Not automatically. Confirm the complete suffix, hardware revision, drive application, connector configuration, and system documentation before substitution.

How do I verify New Surplus authenticity?

Request photographs of the actual , including the GE identification label, revision markings, connectors, and LED area. Confirm whether the unit has ever been installed, repaired, or modified.

What warranty terms should I confirm?

Confirm the warranty period, DOA coverage, return conditions, and actual testing performed. The supplier should clearly distinguish New Surplus, Refurbished, and Used condition and state what functional testing was completed.
