Description
Product Introduction
The GE DS200GSIAG1CGD is a Gate Supply Interface Board (GSIA) developed for General Electric Speedtronic Mark V turbine control systems, EX2000 static exciters, and heavy industrial drives. Installed within the power conversion control section, this card isolates, conditions, and distributes auxiliary DC power required to trigger high-power SCR/thyristor bridges.
The full alphanumeric part designation DS200GSIAG1CGD specifies the base Group 1C board architecture with factory revision suffix GD. This sub-revision includes updated surface-mount component placement, enhanced electrical noise filtering, and upgraded transient protection over earlier G1A or G1B iterations. By isolating gate driver power channels from main logic circuits, the module prevents power-bridge switching spikes and line noise from feeding back into sensitive rack microprocessors.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark V & EX2000 Static Excitation Systems |
| Board Functional Acronym | GSIA (Gate Supply Interface Board) |
| Revision Designation | Group 1C, Revision Suffix GD (G1CGD) |
| Primary Function | Isolated DC gate drive power supply generation and SCR bridge status routing |
| Protection Circuitry | Metal Oxide Varistors (MOVs), transient suppressors, and individual DC rail fuses |
| Configuration Hardware | Multi-position physical BERG jumper blocks for voltage scaling and signal routing |
| Form Factor | Full-size DS200 PCB profile with perimeter guide channels for card stiffeners |
| Operating Temperature | -30°C to +65°C Industrial Extended Range |
Application Scenarios & The “Trench” Experience
The Trench Story
During an unannounced startup on a gas turbine generator, the static exciter trips immediately on a “Bridge 1 Gate Driver Under-Voltage / Misfire” alarm. Field inspection shows the SCR bridge itself is undamaged, but Phase A gate firing pulses are severely distorted. Diagnostics reveal that dried-out electrolytic filtering capacitors in the DC-to-DC converter stage of the aging GSIA board caused voltage sag under firing load. Replacing the card with a pre-tested GE DS200GSIAG1CGD unit, transferring the structural card stiffener, and matching all BERG jumpers brings gate supply voltages back to nominal levels, allowing the generator to flash and synchronize to the grid.
Industrial Applications
- EX2000 Generator Static Excitation: Supplying isolated gate power to 6-pulse or 12-pulse thyristor rectifier stacks in utility power plants.
- Speedtronic Mark V Turbine Controls: Powering gate driver circuits for turning gear motor starters and phase-fired auxiliary systems.
- Heavy Industrial Drives: Providing regulated gate drive power in metal rolling mill drives and mining hoists.
Transparency SOP: Quality Assurance & Testing
Every legacy DS200GSIAG1CGD module undergoes a strict, multi-stage reconditioning and dynamic power validation protocol before dispatch:
- Inbound Visual & Component Audit: Microscopic inspection of high-stress zones, including DC-DC converter transformers, filtering capacitors, trace paths, and ribbon headers for thermal degradation or micro-cracks.
- Ultrasonic ESD Cleaning: Deep solvent wash to eliminate conductive carbon dust, grease, and industrial residues accumulated over years of enclosure operation.
- Isolated DC Rail Burn-In: Bench-testing all isolated DC output channels under full electrical load for 24+ continuous hours to verify output regulation and ripple specifications.
- Transient Suppression Audit: Exercising onboard protection components to confirm rapid voltage clamping during simulated overvoltage transients.
- Live System Rack Execution: Mounting the module in an active Mark V test bed to confirm backplane communications handshaking and diagnostic LED states under load.
- Jumper Audit & ESD Packaging: Documenting all physical BERG jumper positions before vacuum-sealing the board in static-shielding ESD packaging.

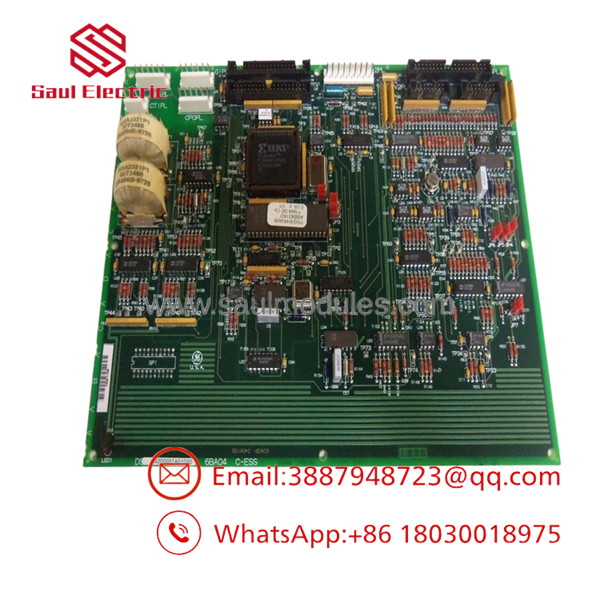

DS200GSIAG1CGD
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Deciphering the Suffix (G1C vs G1CGD)
The suffix string GD appended to G1C represents factory functional updates and artwork revisions. While a G1CGD board is backward-compatible with older G1C or G1A installations, installing an older revision in place of a GD board can reintroduce noise sensitivity or power handling limitations.
Fix: Verify your cabinet documentation and match the complete part number (DS200GSIAG1CGD) to ensure maximum reliability and noise immunity.
❗ 2. Hardware BERG Jumper Layout
The DS200GSIAG1CGD relies on physical BERG jumper headers to configure feedback scaling and internal power routing. Installing a replacement board without matching the jumper positions from your original card can cause improper gate drive voltage or immediate false trip alarms.
Fix: Photograph every jumper block on your failed card before removal, and duplicate every setting position line-for-line on the replacement board.
⚠️ 3. Card Stiffener Transfer
Because of its larger PCB footprint, this card relies on plastic or metal edge stiffeners along its margins to prevent board flex during thermal expansion. Operating without stiffeners installed can stress surface-mount components and lead to cracked solder joints over time.
Fix: Transfer the original structural stiffeners onto the replacement board before sliding it into the cabinet card tracks.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS200GSIAG1CGD board while the system is powered on?
A: No. Removing or inserting a gate supply board live interrupts gate power to active SCR bridges, which can cause severe misfiring, catastrophic bridge shorts, or an instant drive shutdown. Always isolate control cabinet power before servicing.
Q: What are the primary signs that a GSIA board is failing?
A: Intermittent SCR misfire alarms, “Gate Driver Power Supply Low” trip messages in I/O software, or visible thermal discoloration near onboard DC-to-DC converter components.
Q: Does this card require software programming or laptop downloading after installation?
A: No. The DS200GSIAG1CGD is a pure hardware-level gate supply and feedback interface card. Control algorithms reside in the main Mark V processing core, making this card a physical plug-and-play replacement once jumpers are matched.
Q: Are DS200 and DS215 series boards interchangeable?
A: DS200 series boards represent original Mark V production designs. DS215 series boards are later-generation drop-in replacements featuring updated surface-mount ICs while maintaining full form-factor and backplane compatibility.
Q: What warranty coverage applies to refurbished DS200GSIAG1CGD stock?
A: Refurbished and fully tested DS200GSIAG1CGD boards typically carry a standard 12-month replacement warranty covering component performance under normal operating conditions.
