GE DS200KLDAG1ACC Keypad Display Board Mark V

Description

Product Introduction

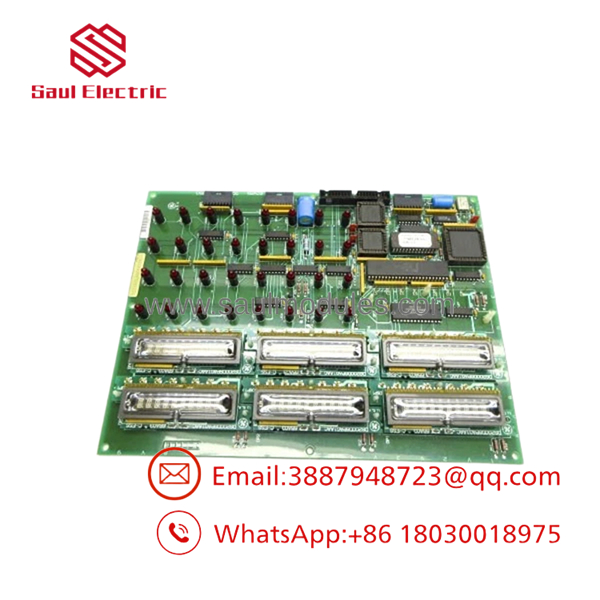

The GE DS200KLDAG1ACC serves as the local operator keypad display board within General Electric Speedtronic Mark V turbine control systems. Installed directly on the control cabinet door or rack frame, this module gives field technicians and plant operators local visibility into system status, diagnostic alarms, and operational parameters without requiring an external HMI station.

Engineers rely on the DS200KLDAG1ACC because it routes tactile keypad commands straight through the Mark V ribbon cabling directly to the core processor boards. Unlike external PC-based monitoring tools that can drop offline during network failures, this hardware interface maintains a hardwired connection to the turbine controller, ensuring local diagnostic access when troubleshooting critical trips.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It is 2:15 AM on a sub-zero winter night. Your combined-cycle power plant suffers an unexpected trip on Gas Turbine #2. You race to the control enclosure, but the main plant SCADA station is locked up due to a network switch reset. You need local diagnostic codes right now to see if you tripped on flameout or lube oil pressure. You open the cabinet door, press the diagnostic key on the local keypad, and the display is completely dead—corrupted display logic on an aging board. Without local readout or network access, you are blind, and every minute off-line is costing thousands of dollars in ungenerated megawatts.

• Power Generation – Frame 6/7/9 Gas Turbine Control – Provides local fault code readout and manual reset functions at the enclosure door.
• Oil & Gas Processing – Compressor Station Turbine Drives – Delivers immediate field-level parameter monitoring in hazardous location enclosures.
• Industrial Cogeneration – Utility Steam Turbine Racks – Allows onsite instrument techs to execute local calibrations without dragging a laptop onto the deck.

In a recent outage at an industrial power plant, an operator cracked the display membrane of an old DS200KLDA card during routine maintenance. The plant could not clear a latching trip code locally. Our team dispatched a pre-tested DS200KLDAG1ACC surplus board overnight. The site techs swapped the card in under 20 minutes, restored local display functionality, verified alarm clearing, and put the turbine back on the grid ahead of schedule.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark V racks.

1. Inbound Inspection: Physical check for trace damage, cracked key membranes, cold solder joints, and authentic OEM silkscreen marking.
2. Live Rig Testing: Installed on a live Mark V testing fixture to verify power-up sequence, segment lighting, and driver IC stability.
3. Keypad Matrix Handshake: Every single key on the tactile membrane is pressed repeatedly to confirm clean contact closures without key-bounce errors.
4. Communication & Ribbon Continuity Check: High-density ribbon connectors undergo pin-out resistance checks to eliminate intermittent signal traces.
5. ESD Protection & Packaging: Cleared boards are sealed in static-shielding bags with moisture indicators prior to foam-lined packaging.

DS200KLDAG1ACC

DS200KLDAG1ACC

The Veteran’s Tech Trap Guide

• ⚠️ Watch Out for Standoff Shorts: The DS200KLDAG1ACC mounts on metal standoffs. Ensure plastic isolation washers are intact before torquing screws down. Missing washers can ground out the 5V logic plane against the cabinet door.
• ❗ Inspect the Ribbon Cables: Never yank the ribbon cable by the wire matrix when pulling the old card. These legacy connectors can loosen or crack pin solder joints on the back of the board. Use a flathead screwdriver to gently release the connector locking ears.
• ⚠️ Match Your Suffix Revisions: Pay attention to the “G1ACC” suffix. While earlier revisions (like G1A or G1AB) might physically fit, minor circuit layout changes can lead to blank display segments or misread keypresses on certain Mark V firmware revisions.
• ❗ Kill Power Before Disconnecting: The Mark V display bus is NOT hot-swappable. Pulling or inserting this card while the 24VDC/5VDC power rails are active can spike the display driver chips. Lock out the rack power first.

Frequently Asked Questions

• Q: Is the GE DS200KLDAG1ACC hot-swappable?
  • A: No. Pulling this board live risks popping the onboard logic ICs and generating false trip signals on the main control bus. Always drop control power to the local rack before servicing.
• Q: What does the “G1ACC” revision code signify?
  • A: The base part number is DS200KLDA. The “G1” designates the functional artwork group, while “ACC” indicates specific engineering hardware revisions made by GE over time.
• Q: Can I substitute a DS200KLDAG1ACC for an older G1A card?
  • A: In most cases, later revision boards are backward compatible with older Mark V setups. However, you should check your Mark V control core documentation to ensure display mapping has not shifted.
• Q: How do you verify that this surplus card is reliable?
  • A: We source from surplus plant liquidations and store units in climate-controlled environments. Every unit undergoes live bench testing on a Mark V rack simulator before going on the shelf.
• Q: What warranty comes with this module?
  • A: We supply a full 12-month replacement warranty on all New Surplus and Refurbished GE Mark V inventory.
• Q: Why are your prices lower than direct OEM emergency quotes?
  • A: GE has largely transitioned support away from legacy Mark V hardware. We source unused surplus stock and fully working pulls directly from decommissioned plants around the globe, cutting out OEM markup.
