GE DS200LDCCG1AAA Speedtronic Mark V / EX2000 LAN Communications Board

Description

Product Introduction

The GE DS200LDCCG1AAA functions as the primary Drive Control LAN Communications Board (LDCC) within GE Speedtronic Mark V gas turbine control systems, EX2000 exciters, and DIRECTO-MATIC 2000 drive lineups. Mounted in the main control rack, it serves as the central brain handling high-speed I/O, inner current and speed regulating loops, and local area network (LAN) data exchange across distributed control nodes.

The board features a quad-processor design—housing the Drive Control Processor (DCP), Motor Control Processor (MCP), Co-motor Processor (CMP), and LAN Control Processor (LCP). Equipped with an onboard alphanumeric diagnostic display and support for protocols like DLAN, Genius Bus, and C-bus, the LDCCG1AAA revision delivers real-time processing required for large-scale power generation drives and exciter bridges.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During peak load generation on an EX2000-equipped gas turbine, a sudden LAN timing fault disrupts communication between the static exciter bridge and the plant DCS. The loss of current loop regulation threatens an emergency excitation trip. Troubleshooting points to a corrupted LAN Control Processor (LCP) channel on the original LDCC card. Field engineers replace the module with a bench-verified DS200LDCCG1AAA, transfer the system EEPROM chips to maintain local site parameters, and verify network node synchronization—restoring real-time drive regulation without an extended plant outage.

• EX2000 Static Excitation Systems – Generator Field Regulation – Manages current/voltage feedback inner loops and thyristor firing logic.
• DIRECTO-MATIC 2000 AC/DC Drives – Heavy Industrial Drive Control – Coordinates motor speed, torque, and position regulating loops.
• Plant DCS Integration – Distributed LAN Gateway – Routes operational telemetry via DLAN/Genius bus to plant supervisory systems.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE DIRECTO-MATIC / EX2000 test rigs.

1. Inbound Visual Audit: Inspection under magnification checking for IC pin oxidation, scorched trace paths, damaged card connectors, and socket degradation.
2. Backplane & Contact Restoration: Micro-cleansing all edge connectors and D-sub interfaces to guarantee low-resistance contact across internal communication buses.
3. Power Rail Bench Check: Applying clean DC bench supplies to verify onboard regulators, clock generators, and internal processor voltage rails.
4. Processor Network Simulation: Exercising all four microprocessors (DCP, MCP, CMP, LCP) on a live test rig to confirm proper boot sequencing, keypad response, and network polling.
5. Anti-Static Packaging: Encapsulated in static-shielding ESD bags with desiccant before placement in protective foam-lined packaging.

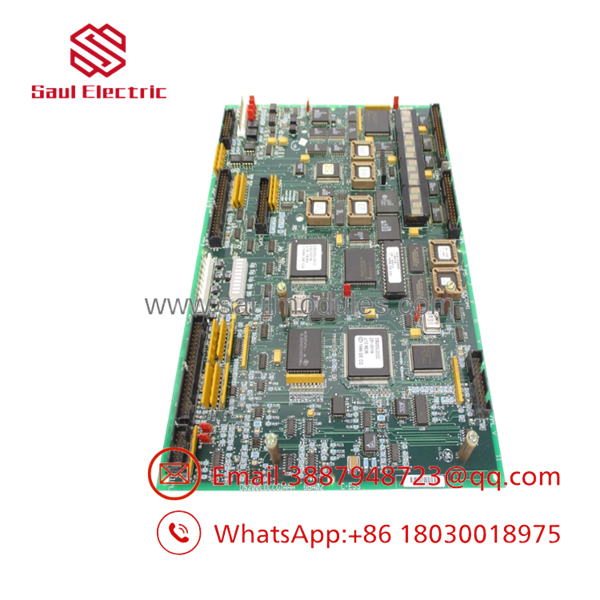

DS200LDCCG1AAA

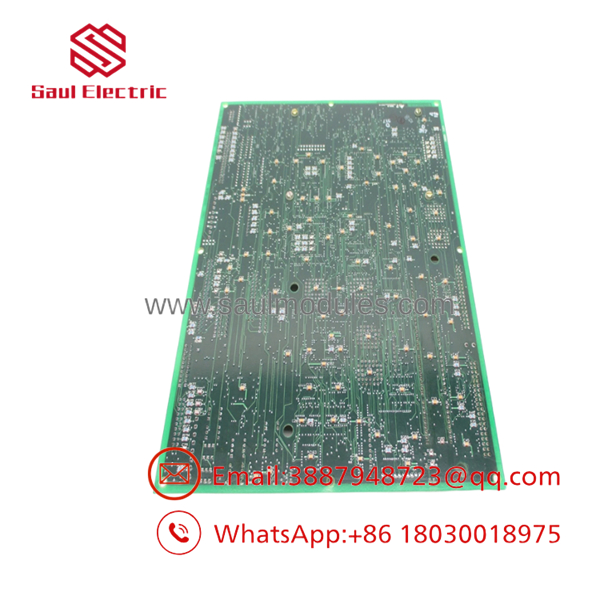

DS200LDCCG1AAA

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ TRANSFER YOUR CONFIGURATION PROMs / EEPROMs: The LDCC board relies on socketed EPROM/EEPROM chips containing application software and site-specific motor/drive configuration parameters. You MUST carefully transfer your original PROMs to the replacement board before installation.
• ❗ DO NOT HOT-SWAP: The LDCC card connects directly to live backplane power rails (+5 V DC / 24 V DC) and system communication buses. Unplugging or inserting this card under power will damage sensitive microprocessor logic.
• ⚠️ Check Hardware Jumpers & Dip Switches: Verify that all configurable jumpers on the replacement LDCCG1AAA board match the exact pin positions of the original board to ensure correct hardware address and network termination settings.
• ❗ Handle Socketed ICs with Static Protection: Static electricity can destroy memory and processor chips during transfers. Always use an ESD-grounded wrist strap and chip extraction tools when moving EEPROMs.

Frequently Asked Questions (FAQ for Conversion)

Q: What are the four onboard microprocessors on the DS200LDCCG1AAA used for?

A: Position U1 (DCP) handles outer regulating loops; U21 (MCP) manages inner motor control and digital/analog I/O; U35 (CMP) provides co-motor processing; and U18 (LCP) manages LAN communications (DLAN, Genius, etc.).

Q: Does the replacement board come pre-programmed for my specific plant?

A: No. Site configuration and application parameters are stored on socketed PROMs/EEPROMs on your existing board. You must transfer these socketed chips from your old board to the replacement board.

Q: Is the DS200LDCCG1AAA compatible with both Mark V and EX2000 systems?

A: Yes. The LDCC card is part of the DIRECTO-MATIC 2000 family, widely used across Speedtronic Mark V turbine controls, EX2000 excitation systems, and large AC/DC industrial drives.

Q: What is the benefit of sourcing a surplus LDCC board rather than migrating the drive system?

A: Swapping an LDCC card takes less than two hours during a scheduled maintenance window, preventing the massive capital investment, cabinet rewiring, and downtime associated with a full control system migration.

Q: What warranty coverage do you provide?

A: Every unit includes a full 12-month replacement warranty from the delivery date, covering processor execution, bus communication, and hardware memory interface stability.
