GE DS200NATOG3A Voltage Feedback Scaling Board

Description

Product Introduction & Engineering Value

Missing a voltage feedback loop during static starter ramping leads directly to missed firing angles and immediate overcurrent trips. The GE DS200NATOG3A voltage feedback scaling board takes high SCR bridge potential—spanning 1.2 kV up to 6.9 kV—and scales it safely for drive regulation circuits.

Configured with precision high-voltage resistor strings and onboard metal oxide varistors (MOVs), this board isolates high energy from the digital processing logic while preventing transient voltage spikes from jumping across the output ribbon ribbon header. It provides rock-solid feedback precision across severe power generation and high-horsepower drive duties.

Technical Specifications

• Input Channels: 5 series-connected precision resistor strings (3 AC phases, 1 Positive DC Bus, 1 Negative DC Bus)
• Selectable Attenuation Levels: Configurable for 1200V, 2200V, 3300V, 4200V, or 6900V line inputs
• Terminal Interface: Stab connectors and wire jumpers for voltage range selection
• Output Connector: 20-pin ribbon cable header
• Transient Overvoltage Protection: Metal Oxide Varistors (MOVs) integrated across each output line
• Operating Electrical Potential: Operates directly at floating SCR potential (up to several kilovolts above earth ground)
• Applicable Manuals: GEI-100225 / GEH-6373
• Mounting Configuration: Standoff mount with dedicated grounding tabs

Field Application & The “Trench” Experience

The Trench Story: During a cold-start routine on a 120 MW combustion turbine utilizing an LS2100 Static Starter (LCI), the system kept faulting on a feedback loss error before reaching synchronous speed. Field scope measurements revealed that an aging resistor string on the original NATO board had drifted high in resistance, skewing the DC bus feedback ratio. Dropping in a tested DS200NATOG3A card, setting the jumper taps to match the local 4.16 kV line rating, and reconnecting the 20-pin header restored exact feedback scaling and brought the starter system online in under an hour.

Niche Application Scenarios

• LCI Static Starter Speed Ramping: Scales SCR bridge voltages during medium-voltage motor acceleration in gas turbine power plants.
• Large AC Variable Frequency Drives (VFDs): Feeds accurate phase and bus potential back to the main drive controller in heavy industrial mills.
• Synchronous Condenser Controls: Monitors phase-to-phase feedback during grid power factor correction and voltage stabilization maneuvers.

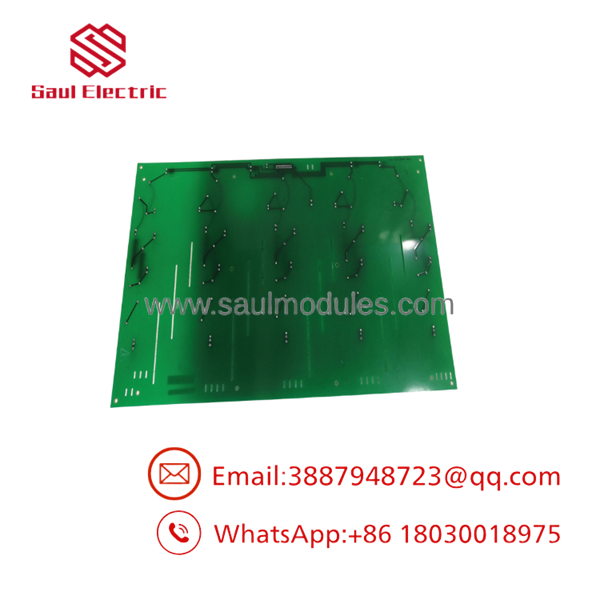

DS200NATOG3A

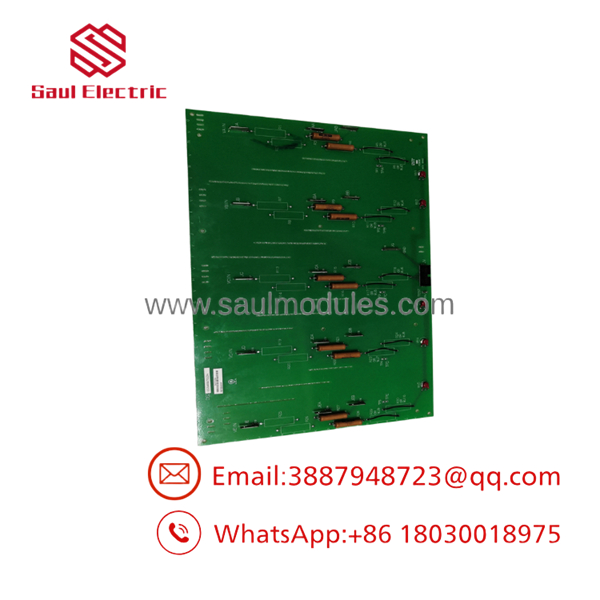

DS200NATOG3A

Transparency SOP: QA & Testing

1.Visual & Resistor Inspection] ➔ Microscopic trace audit + high-precision resistance testing on all 5 attenuator strings.

2.Dielectric Insulation Check] ➔ High-potential (Hi-Pot) verification across high-voltage stab terminals and low-voltage output header.

3.MOV Surge Suppression Test] ➔ Surge-clamping impedance verification to guarantee MOV protective response.

4.Live Voltage Attenuation Test] ➔ Bench testing under multi-kV AC/DC sources to verify exact output division ratios on the 20-pin header.

The Veteran’s Tech Trap Guide

• ⚠️ High Voltage / Floating Ground Shock Hazard: The DS200NATOG3A operates directly at SCR potential—which can sit several thousand volts above earth ground during operation. Never attempt manual meter measurements or touch terminals while the bridge is energized!
• PRO TIP: Verify Wire Jumpers and Stab Positions: The G3A revision alters jumper arrangements compared to older NATO revisions (G1A/G2A). Double-check that your stab connector tap matches your line voltage (e.g., 4200V vs. 6900V) before applying bridge power; incorrect taps will miscalibrate drive firing algorithms or over-range the downstream board.
• ⚠️ Burden Resistor Location: Remember that burden resistors for measuring the output current/voltage are not on the NATO board itself—they reside on the gate distribution/status board downstream. If you measure no voltage across the disconnected NATO ribbon output under power, it is usually because the burden path is open.

Dynamic FAQ

Q: Does the DS200NATOG3A replace older revision NATO boards like the DS200NATOG1A or G2A?

A: The G3A is an updated revision with revised layout features. Because functional groups and wire jumper counts change between G1/G2/G3 variations, verify GE manual GEI-100225 for exact tap compatibility before swapping out earlier group numbers.

Q: Do I need to program or set parameters via software for this board?

A: No. The is a hardware scaling assembly. Calibration is configured purely through physical stab connectors and wire jumper positioning matching your system’s line voltage.

Q: What prevents a voltage flare from destroying the drive controller if the output ribbon cable pops loose?

A: Each of the 5 resistor string outputs is backed by an integrated Metal Oxide Varistor (MOV). If the ribbon path disconnects, the MOV clamps the open-circuit output voltage to a safe limit.

Q: How are your surplus/refurbished boards tested prior to dispatch?

A: Every board undergoes high-potential insulation checks, individual resistor network tolerance testing, and active signal attenuation verification under high-voltage inputs to ensure exact OEM division ratios.

Q: What is the warranty policy on this module?

A: All units ship with a standard 12-month full-replacement warranty covering component accuracy, dielectric insulation integrity, and full operational capability.
