Product Introduction & Engineering Value
The GE DS200PCCAG9ACB is a Power Connect Card from the DS200 Mark V family. Its job is not simply to distribute power; the PCCA board provides the interface between the drive power bridge and associated control circuitry, making it an important part of the drive’s electrical control path.
For maintenance teams, the full suffix matters. The G9ACB designation should be retained when sourcing a replacement because DS200PCCA variants can differ in circuit configuration and application. A board that looks similar on the bench may not be the correct substitute.
Technical Specifications
- Manufacturer: General Electric
- Part Number: DS200PCCAG9ACB
- Series: DS200
- Control Platform: Mark V
- Board Type: Power Connect Card
- Board Abbreviation: PCCA
- Primary Function: Interface between drive power bridge and control circuitry
- Application: GE drive/turbine-control systems
- Board Revision: G9ACB
- Hardware Family: Mark V Speedtronic
- Configuration: Application-specific
- Replacement Requirement: Exact part-number verification recommended
Important: Publicly available references for the exact DS200PCCAG9ACB suffix do not provide enough authoritative information to safely state detailed input/output voltage, current capacity, connector pinout, or semiconductor ratings. Those values should be verified against GE documentation for the specific drive rather than inferred from another PCCA revision.
Field Application & the “Trench” Experience
A common outage scenario goes like this: a Mark V drive begins producing abnormal behavior, and troubleshooting eventually points toward the power-interface circuitry. The maintenance team has a spare PCCA board in inventory, but the old procurement record lists only “PCCA Power Connect Card.”
That is where problems begin.
Before installing anything, the technician reads the complete identification from the existing PCB: DS200PCCAG9ACB. The spare is checked against that exact number, the revision markings are recorded, and the connector and configuration details are compared. Only after the match is confirmed does the replacement proceed.
The extra five minutes spent verifying the suffix can prevent hours of post-installation fault tracing.
Specific application scenarios
- GE Mark V drive power-interface replacement — replacement of a suspect PCCA board during a planned turbine outage.
- Turbine auxiliary drive troubleshooting — investigating abnormal drive behavior where the power-interface circuitry is part of the fault path.
- Legacy Mark V critical-spares management — maintaining an exact PCCA revision for equipment where replacement lead time is difficult to predict.

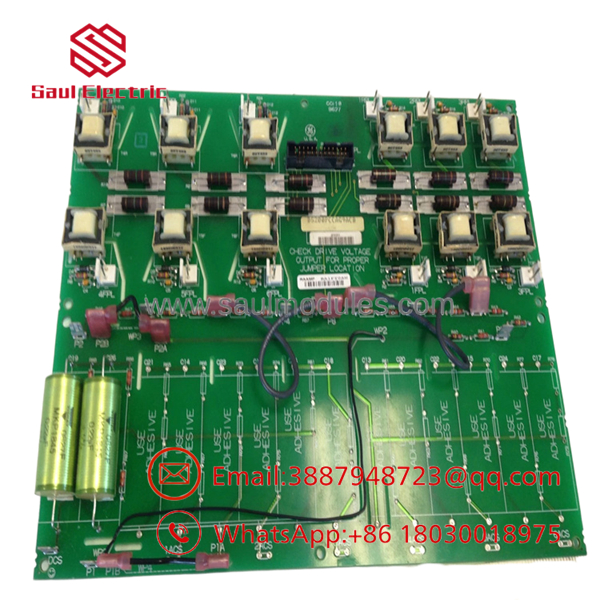

DS200PCCAG9ACB

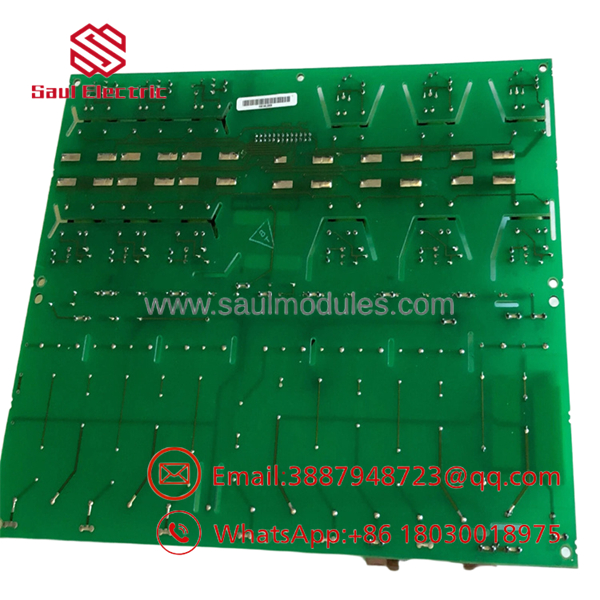

DS200PCCAG9ACB
Transparency SOP: QA & Testing
For New Surplus inventory, the quality process should begin with identity and condition verification rather than assuming unused means electrically perfect.
For Refurbished inventory, a suitable process includes:
- Part-number confirmation — verify
DS200PCCAG9ACBand all visible board markings. - Visual inspection — examine the PCB for corrosion, contamination, cracked solder joints, damaged traces, and heat-related discoloration.
- Power-component inspection — inspect relevant power semiconductors, capacitors, resistors, and other components for visible damage or deterioration.
- Connector inspection — check mating connectors for bent contacts, oxidation, mechanical damage, and contamination.
- Configuration verification — document hardware settings and board modifications before testing.
- Electrical testing — perform applicable continuity, isolation, and power-path checks.
- Functional testing — where the correct test equipment is available, operate the board in a controlled test environment representative of the intended application.
- Final QC record — document the exact board number, condition, test result, and warranty status.
A board that passes a basic continuity check has not necessarily passed a functional test. Suppliers should distinguish those two claims.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing PCCA variants
The DS200 family contains multiple PCCA boards. The first four or five characters of the part number are not enough to establish interchangeability.
PRO TIP: Use the complete DS200PCCAG9ACB number on purchase orders, inventory records, and maintenance documentation.
⚠️ Trap #2 — Treating a Power Connect Card as ordinary low-voltage I/O
This board is associated with the interface between the drive power bridge and control circuitry. That makes isolation, discharge time, grounding, and electrical safety particularly important during replacement.
Follow the site’s lockout/tagout and DC-bus discharge procedures before touching the hardware.
⚠️ Trap #3 — Failing to photograph the original configuration
Legacy drive hardware can contain application-specific configuration details that are easy to overlook during removal.
Photograph the board before disconnecting cables. Record connector locations and any visible configuration information.
⚠️ Trap #4 — Assuming the catalog’s generic specifications apply
Generic DS200 PCCA listings frequently combine information from related models. Do not use another revision’s voltage or current rating as the specification for without supporting documentation.
Dynamic FAQ
What is the GE ?
The is a GE Power Connect Card in the DS200 Mark V family. It provides an interface associated with the drive power bridge and control circuitry.
What does PCCA stand for?
PCCA is the board designation used for the Power Connect Card family within GE’s DS200 hardware.
Is the compatible with every DS200PCCA board?
No. The complete part number and revision should be checked before substitution. Related PCCA boards can have different hardware configurations or application requirements.
What should I check before ordering a replacement?
Confirm the complete part number, board revision, cabinet or drive identification, connector arrangement, and available GE documentation. A clear photograph of the existing PCB is highly useful when purchasing legacy hardware.
Is New Surplus the same as Refurbished?
No. New Surplus normally refers to unused inventory outside the manufacturer’s current production/distribution channel. Refurbished refers to previously used or returned hardware that has undergone inspection and, depending on the supplier, repair and testing.
Should a refurbished be function-tested?
For critical drive applications, yes. At minimum, the supplier should be able to explain what was inspected and tested. A functional test using suitable equipment is more meaningful than a simple visual inspection.
What warranty is available?
Warranty terms are supplier-specific. The quotation should clearly state the coverage period and whether the warranty applies to the particular condition being supplied—New Surplus, Refurbished, or Repaired. Do not assume a third-party warranty is equivalent to an original GE factory warranty.
